JT SPROCKETS Transmission plate crown 31T P-530 Ø90 MM Ø110 727.05.63

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

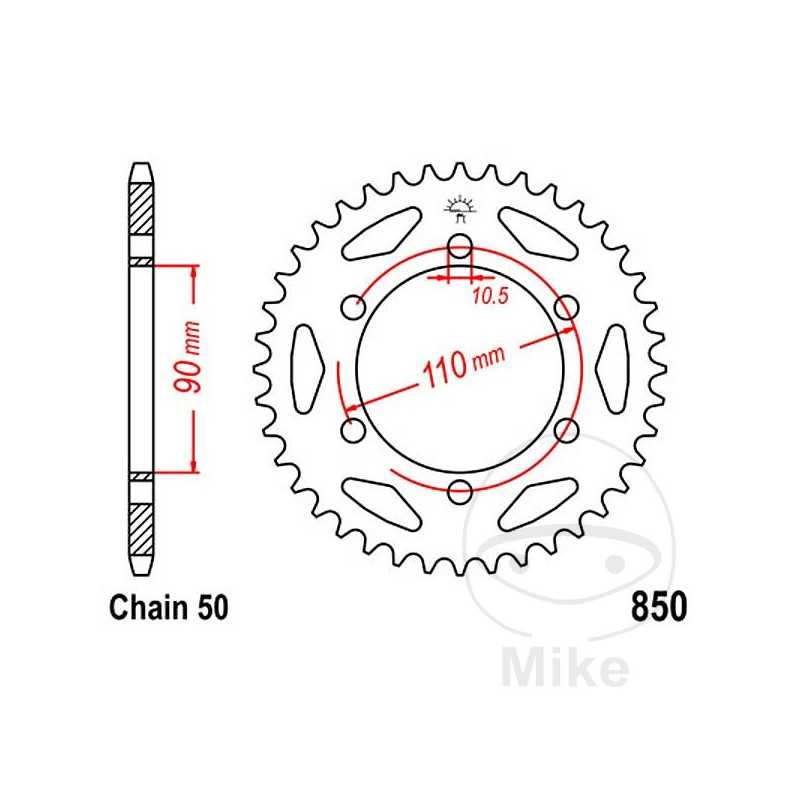

DIVISION: 530
INNER DIAMETER: 90MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 31
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XS 650 50 CV, 37 KW 2CIL. 447 1U3 BASTIDORES: 447-450101-447-455000 1980
YAMAHA XS 650 50 CV, 37 KW 2CIL. 447 1U3 BASTIDORES: 447-460101-447-470000 1981-1983
YAMAHA XS 650 50 CV, 37 KW 2CIL. 447 1U3 BASTIDORES: 447-600101-- 1977-1978
YAMAHA XS 650 50 CV, 37 KW 2CIL. 447 1U3 BASTIDORES: 447-855101-447-860000 1979
YAMAHA XS 650 50 CV, 37 KW 2CIL. 447 447 BASTIDORES: 447-100101-- 1975-1976
YAMAHA XS 650 SE SPECIAL 48 CV, 35 KW 2CIL. 3L1 5E6 BASTIDORES: 3L1 henceforth40101-3L1 henceforth50000 1981-1983
YAMAHA XS 650 SE US CUSTOM 48 CV, 35 KW 2CIL. 3L1 4G7 BASTIDORES: 3L1 henceforth20101-3L1 henceforth04000 1980
