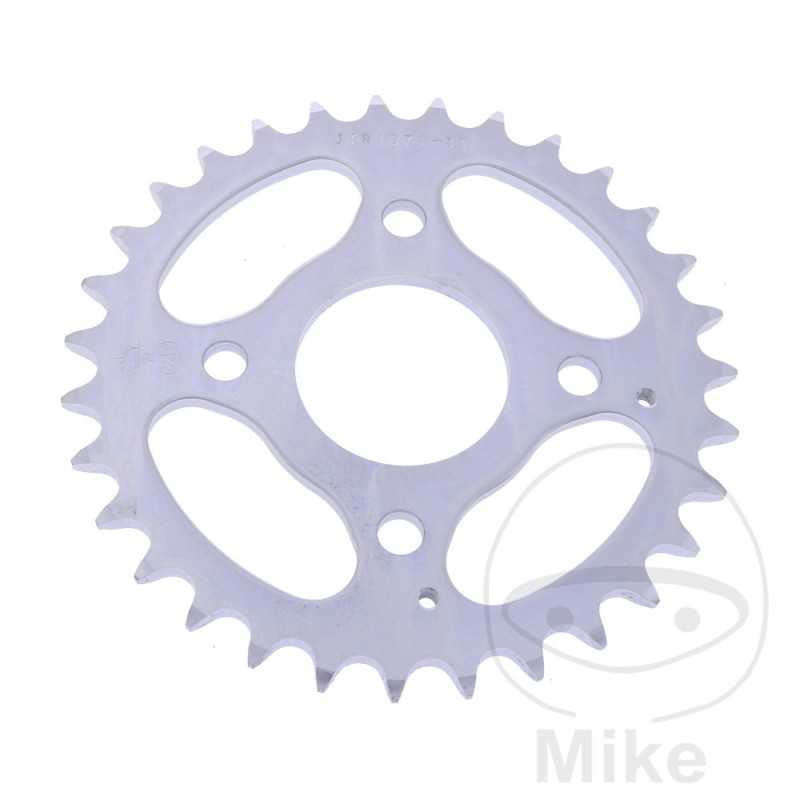

JT SPROCKETS Transmission plate crown 31T P-520 Ø52 MM Ø86 727.04.20

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.
DIVISION: 520
Inside diameter: 52 mm
CIRCLE SIZE: 86 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 31
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KYMCO MXER 150 10,8 CV, 8 KW 1CIL. L10030 L1 BASTIDORES: RFBL10030-- 2003
KYMCO MXER 150 10,8 CV, 8 KW 1CIL. L10050 L1 BASTIDORES: RFBL10050-- 2004-2007
KYMCO MXER 50 4,2 CV, 3,1 KW 1CIL. L20000 L2 BASTIDORES: RFBL20000-- 2003
KYMCO MXER 50 4,2 CV, 3,1 KW 1CIL. L20010 L2 BASTIDORES: RFBL20010-- 2004-2007
KYMCO MXU 150 10 CV, 7,35 KW 1CIL. L80000 L8 BASTIDORES: RFBL80000-- 2007-2017
KYMCO MXU 50 4 CV, 3 KW 1CIL. A10030 A1 BASTIDORES: RFBA10030-- 2006-2017
