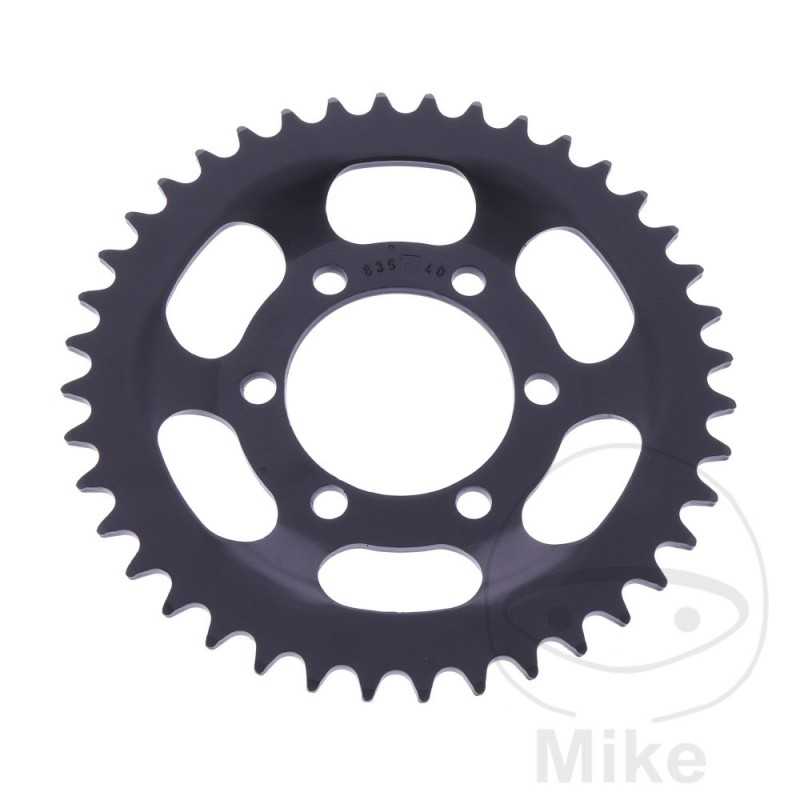

ESJOT Transmission plate crown 40T P-415 Ø58 MM Ø72 727.04.08

For Zündapp 446-300 ZD40 up to chassis number 9255042 and

446-301 ZD40 from chassis number 9255043 with rear brake drum

Diameter 120mm.

For Zündapp ZL25 models 460-040 and 460-041 from Mot.-Nr.:9955241

For Zundapp GTS50

529-020; 529-022; 529-023; 529-024; 529-026; 529-028; 529-029

from chassis number: 9020003

For Zündapp model ZD20 446-400 from chassis number: 9199883 to 9255042

and model 446-401 from chassis number: 9255043

For Zündapp model ZD25 446-420 from chassis number: 9165722 to 9255042

and model 446-422 from chassis number: 9255043
DIVISION: 415
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 72 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL
FILLING: 15MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Zündapp C 50 Sport 2,9 CV, 2,1 kw 1cil. - 529 henceforth10 Bastidores: 9 020 005-9 225 037 1976-1978
Zündapp CX 25 1,4 CV, 1 kw 1cil. - 448-151 Bastidores: 9 484 184-- 1982
Zündapp Hai 25 25 1,4 CV, 1 kw 1cil. - 448-150 Bastidores: 9 347 084-- 1980-1982
Zündapp ZD 20 25 1,5 CV, 1,1 kw 1cil. - 446-400 Bastidores: 9 030 749-9 255 042 1976-1979
Zündapp ZD 20 25 1,5 CV, 1,1 kw 1cil. - 446-401 Bastidores: 9 302 304-9 357 271 1979-1980
Zündapp ZD 25 25 TS 1,4 CV, 1 kw 1cil. - 446-420 Bastidores: 9 165 722-9 255 042 1978-1979
Zündapp ZD 40 50 2,9 CV, 2,1 kw 1cil. - 446-300 Bastidores: 9 039 499-9 255 042 1976-1979
Zündapp ZD 40 50 2,9 CV, 2,1 kw 1cil. - 446-301 Bastidores: 9 311 594-- 1980-1981
Zündapp ZD 50 25 TS 1,4 CV, 1 kw 1cil. - 446-422 Bastidores: 9 255 044-9 305 345 1979-1980
Zündapp ZE 40 50 2,7 CV, 2 kw 1cil. - 460 henceforth90 Bastidores: 9 450 532-- 1981-1982
Zündapp ZL 25 25 1,4 CV, 1 kw 1cil. - 460 henceforth40 Bastidores: 9 361 366-9 415 478 1980-1981
Zündapp ZL 25 25 1,4 CV, 1 kw 1cil. - 460 henceforth41 Bastidores: 9 493 614-- 1983
Zündapp ZS 25 25 1,7 CV, 1,25 kw 1cil. - 460 henceforth50 Bastidores: 9 415 479-- 1981-1982
