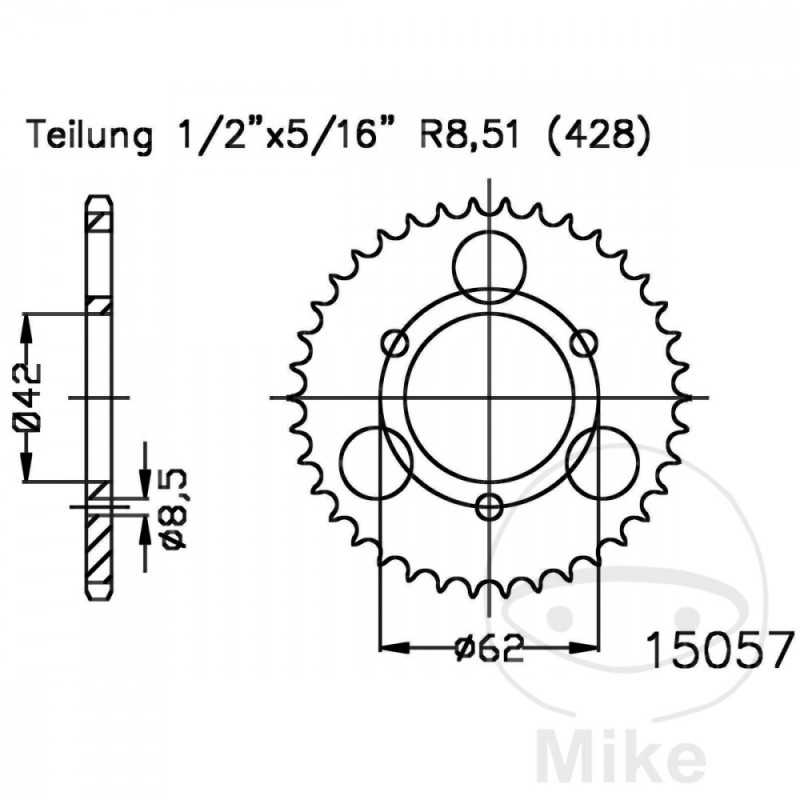

ESJOT Transmission plate crown 32T P-428 Ø42 MM Ø62 727.03.92

ESJOT - Antriebstechnik GmbH is a medium-sized company,

who has specialized in pine nuts for over 80 years.
DIVISION: 428
INNER DIAMETER: 42MM
CIRCLE SIZE: 62 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 3
SCREW TYPE: FLAT HEAD
QTY TEETH: 32
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DINLI CLASSIC 50 SPECIAL 3,6 CV, 2,6 KW 1CIL. - BASTIDORES: --- 2011-2016
MASAI A 150 9 CV, 6,6 KW 1CIL. - BASTIDORES: --- 2011-2013
MASAI A 50 3,5 CV, 2,6 KW 1CIL. - BASTIDORES: --- 2011-2013
MASAI K 150 9,5 CV, 7 KW 1CIL. - BASTIDORES: --- 2011-2013
MASAI L 150 9,3 CV, 6,8 KW 1CIL. - BASTIDORES: --- 2006-2009
MASAI L 150 9,5 CV, 7 KW 1CIL. - BASTIDORES: --- 2011-2014
MASAI L 50 3,5 CV, 2,6 KW 1CIL. - BASTIDORES: --- 2006-2009
MASAI L 50 3,5 CV, 2,6 KW 1CIL. - BASTIDORES: --- 2011-2013
SACHS HELIX 100 6,1 CV, 4,5 KW 1CIL. - DL601-100 BASTIDORES: --- 2004-2005
SACHS HELIX 150 9,2 CV, 6,8 KW 1CIL. - DL601-150 BASTIDORES: --- 2004-2005
SACHS T-REX 100 6,1 CV, 4,5 KW 1CIL. - DL601-100 BASTIDORES: --- 2004-2005
SACHS T-REX 50 3,5 CV, 2,6 KW 1CIL. - BASTIDORES: --- 2004-2005
