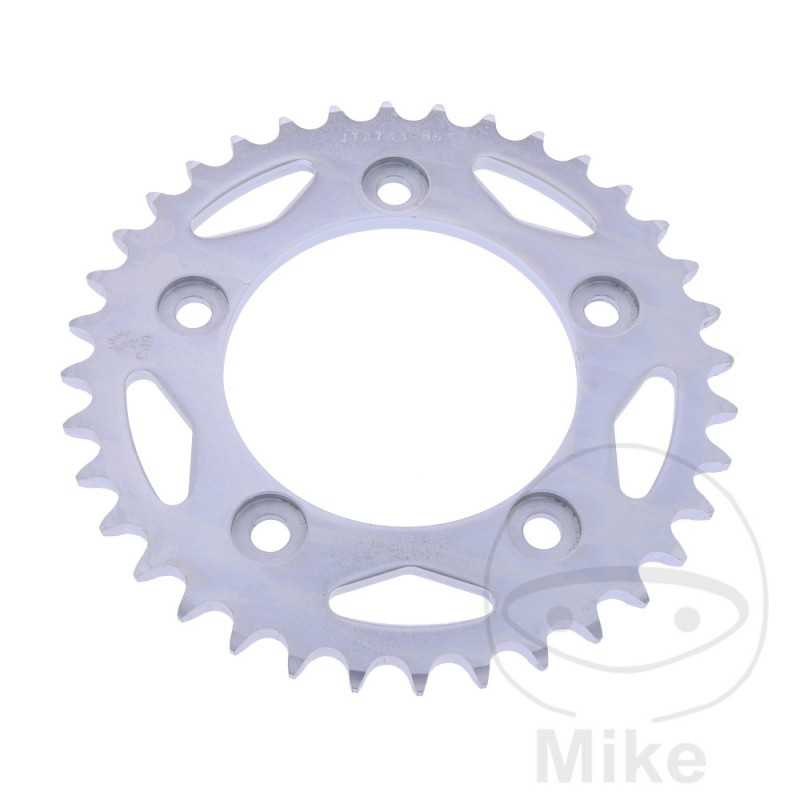

JT SPROCKETS Transmission plate crown 36T P-525 Ø100 MM Ø124 727.03.66

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 525
INNER DIAMETER: 100MM
CIRCLE SIZE: 124 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 36
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DUCATI 749 749 BIPOSTO 103 CV, 76 KW 2CIL. H500AA BASTIDORES: --- 2003
DUCATI 749 749 BIPOSTO 103 CV, 76 KW 2CIL. H500AA/AB BASTIDORES: --- 2004
DUCATI 749 749 BIPOSTO 108 CV, 80 KW 2CIL. H500AA BASTIDORES: --- 2005-2007
DUCATI 749 749 DARK 103 CV, 76 KW 2CIL. H500AA/AB BASTIDORES: --- 2004
DUCATI 749 749 DARK 108 CV, 80 KW 2CIL. H500AA BASTIDORES: --- 2005-2007
DUCATI 749 749 R MONOPOSTO 116 CV, 85 KW 2CIL. H501AD/AF BASTIDORES: --- 2004
DUCATI 749 749 R MONOPOSTO 121 CV, 89 KW 2CIL. H501AF/AG BASTIDORES: --- 2005
DUCATI 749 749 R MONOPOSTO 121 CV, 89 KW 2CIL. H501AG/AH BASTIDORES: --- 2006-2007
DUCATI 749 749 S BIPOSTO/MONOPOSTO 103 CV, 76 KW 2CIL. H500AA BASTIDORES: --- 2003
DUCATI 749 749 S BIPOSTO/MONOPOSTO 110 CV, 81 KW 2CIL. H500AD/AC/AE/AF BASTIDORES: --- 2004
DUCATI 749 749 S BIPOSTO/MONOPOSTO 116 CV, 85 KW 2CIL. H500AD/AC/AE BASTIDORES: --- 2005
DUCATI 749 749 S BIPOSTO/MONOPOSTO 116 CV, 85 KW 2CIL. H500AD/AC/AE/AF BASTIDORES: --- 2006-2007
DUCATI 999 999 BIPOSTO/MONOPOSTO 124 CV, 91 KW 2CIL. H400AA BASTIDORES: --- 2003
DUCATI 999 999 BIPOSTO/MONOPOSTO 124 CV, 91 KW 2CIL. H400AA/AB/AC BASTIDORES: --- 2004
DUCATI 999 999 BIPOSTO/MONOPOSTO 140 CV, 103 KW 2CIL. H400AE/AF/AG BASTIDORES: --- 2006
DUCATI 999 999 BIPOSTO/MONOPOSTO 140 CV, 103 KW 2CIL. H400AE/AF/AG/AH/H500AG BASTIDORES: --- 2005
DUCATI 999 999 R BIPOSTO/MONOPOSTO 139 CV, 102 KW 2CIL. H400AA/AM BASTIDORES: --- 2003
DUCATI 999 999 R BIPOSTO/MONOPOSTO 139 CV, 102 KW 2CIL. H401AA BASTIDORES: --- 2004
DUCATI 999 999 R BIPOSTO/MONOPOSTO 150 CV, 110 KW 2CIL. H401AA BASTIDORES: --- 2006
DUCATI 999 999 R BIPOSTO/MONOPOSTO 150 CV, 110 KW 2CIL. H401AA/H402AA BASTIDORES: --- 2005
DUCATI 999 999 S BIPOSTO/MONOPOSTO 136 CV, 100 KW 2CIL. H400AA BASTIDORES: --- 2003
DUCATI 999 999 S BIPOSTO/MONOPOSTO 136 CV, 100 KW 2CIL. H400AA/AE/AF/AG/AH BASTIDORES: --- 2004
DUCATI 999 999 S BIPOSTO/MONOPOSTO 143 CV, 105 KW 2CIL. H400AE/AF/AG/AH BASTIDORES: --- 2005-2006
