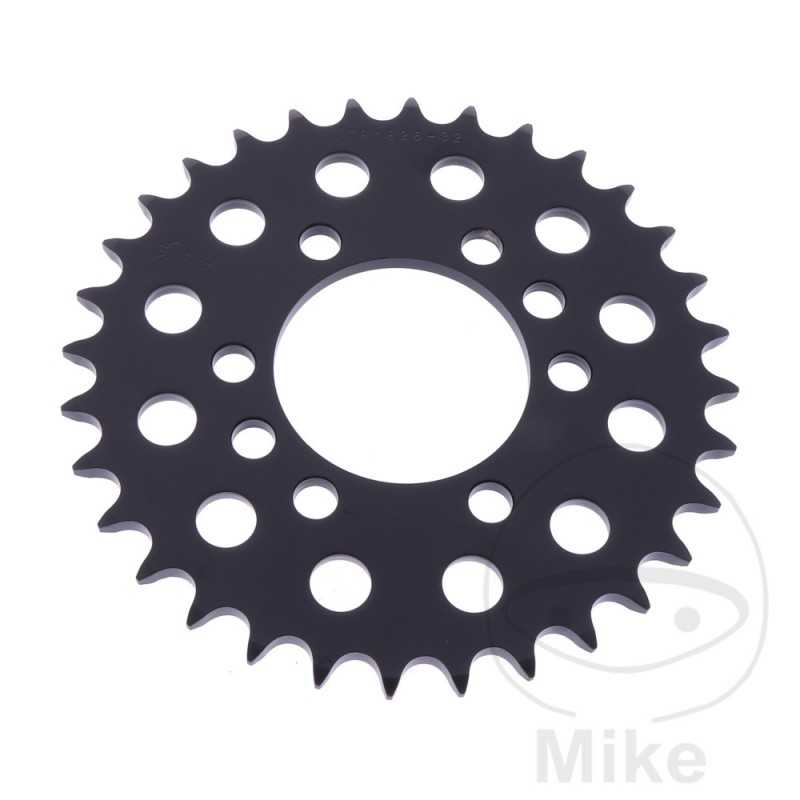

JT SPROCKETS Transmission plate crown 32T P-520 Ø64 MM Ø84 727.03.47

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 520
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 84 MM
HOLE: 10.5MM
HOLES QUANTITY: 8
SCREW TYPE: FLAT HEAD
QTY TEETH: 32
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 32 1 Bastidores: AK47B 32-100001-AK47B 32-999999 2003
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K1 Bastidores: AG43A-11100001-- 2001-2002
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K3 Bastidores: AG43A-31100001-- 2003
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K4 Bastidores: AG43A-41100001-- 2004
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A V Bastidores: AG43A-V1100001-- 1997
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A W Bastidores: AG43A-W1100001-- 1998
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A X Bastidores: AG43A-X1100001-- 1999
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A Y Bastidores: AG43A-Y1100001-- 2000
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L2 Bastidores: AK4AA-C2100001-- 2012-2017
Suzuki RV 200 Van Van 14,3 CV, 10,5 kw 1cil. WVBT2211 L6 Bastidores: BT2211-G0100001-- 2016-2017
