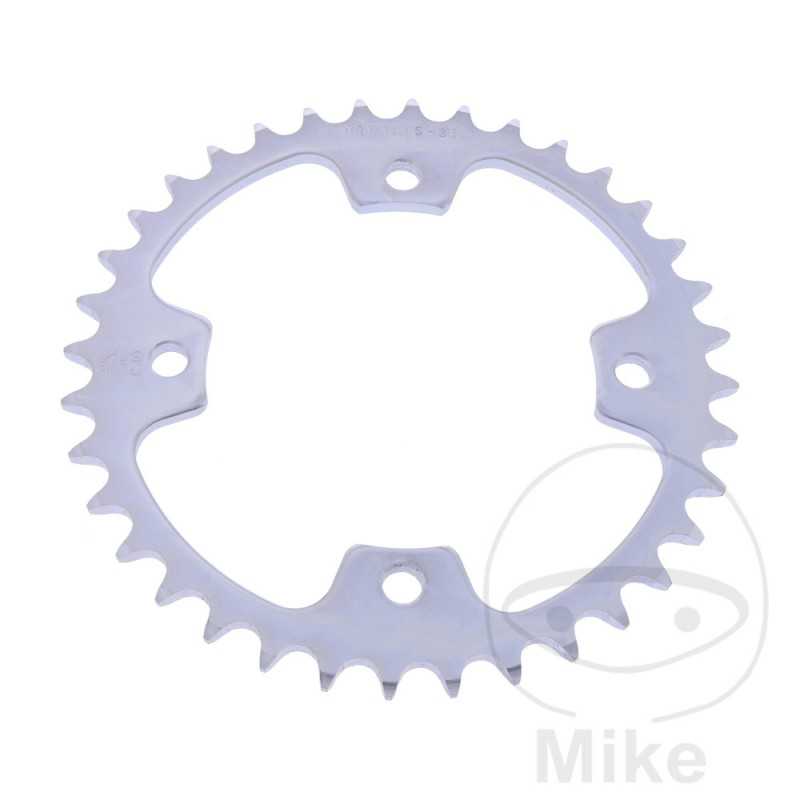

JT SPROCKETS Transmission plate crown 36T P-520 Ø110 MM Ø130 727.03.39

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 520
INSIDE DIAMETER: 110MM
CIRCLE SIZE: 130 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 36
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Dinli Dinli 450 R 20 CV, 15 kw 1cil. - Bastidores: --- 2014-2016
Dinli Dinli 450 R LOF 45 CV, 33,6 kw 1cil. - Bastidores: --- 2014-2016
Dinli Special 450 S 20 CV, 15 kw 1cil. - Bastidores: --- 2014-2016
Dinli Special 450 S LOF 45 CV, 33,6 kw 1cil. - Bastidores: --- 2014-2016
Dinli Sports 450 Special 17,7 CV, 14,5 kw 1cil. - Bastidores: --- 2011-2016
Dinli Sports 450 Special LOF 45/38 CV, 33/28 kw 1cil. - Bastidores: --- 2011-2016
Kawasaki KFX 450 R KSF 1cil. SF450BBB B8F Bastidores: SF450BBB-600001-SF450BBB-602900 2008
Kawasaki KFX 450 R KSF 1cil. SF450BBB B9F Bastidores: SF450BBB-602901-SF450BBB-603700 2009
Kawasaki KFX 450 R KSF 1cil. SF450BBB BAF Bastidores: SF450BBB-603701-SF450BBB-604000 2010
Kawasaki KFX 450 R KSF 1cil. SF450BBB BBF Bastidores: SF450BBB-604001-SF450BBB-604400 2011
Kawasaki KFX 450 R KSF 1cil. SF450BBB BCS Bastidores: SF450BBB-604401-SF450BBB-604700 2012
Kawasaki KFX 450 R KSF 1cil. SF450BBB BDF Bastidores: SF450BBB-604701-SF450BBB-604900 2013
Kawasaki KFX 450 R KSF 1cil. SF450BBB BEF Bastidores: SF450BBB-604901-SF450BBB-999999 2014
Masai A 450 45 CV, 33,5 kw 1cil. - Bastidores: --- 2006-2009
Masai A 460 Ultimate 45 CV, 33,5 kw 1cil. - Bastidores: --- 2012-2016
Masai Demon 460 45.5 CV, 33,5 kw 1cil. - Bastidores: --- 2008-2016
Masai Demon 460 Evo 19,7 CV, 14,5 kw 1cil. - Bastidores: --- 2013-2016
Masai Demon 460 Evo 45.5 CV, 33,5 kw 1cil. - Bastidores: --- 2011-2012
Masai R 460 Drift 45.5 CV, 33,5 kw 1cil. - Bastidores: --- 2012-2016
