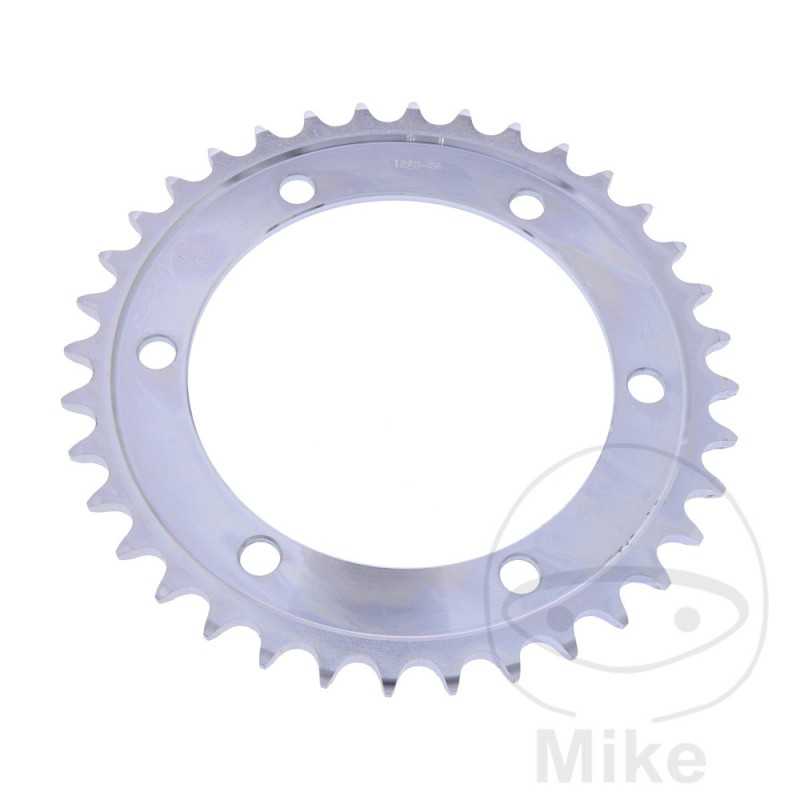

JT SPROCKETS Transmission plate crown 36T P-520 Ø120 MM Ø138 727.03.36

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 520
INNER DIAMETER: 120MM
CIRCLE SIZE: 138 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 36
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A B Bastidores: MLH-MC41A-B5000001-MLH MC41A-B5099999 2011-2012
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A D Bastidores: MLH MC41A-D5200001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B B Bastidores: MLH MC41B-B5000001-MLH MC41B-B5099999 2011-2012
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B D Bastidores: MLH MC41B-D5100001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B F Bastidores: MLH MC41B-F5200001-MLH MC41B-F5299999 2015
Honda CBR 250 RR 38 CV, 28 kw 2cil. - G Bastidores: --- 2016
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B F Bastidores: MLH NC51B-F5100001-MLH NC51B-F5199999 2014-2015
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B G Bastidores: MLH NC51B-G5200001-- 2016-2017
