JT SPROCKETS Transmission plate crown 38T P-520 Ø58 MM Ø78 727.02.99

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.

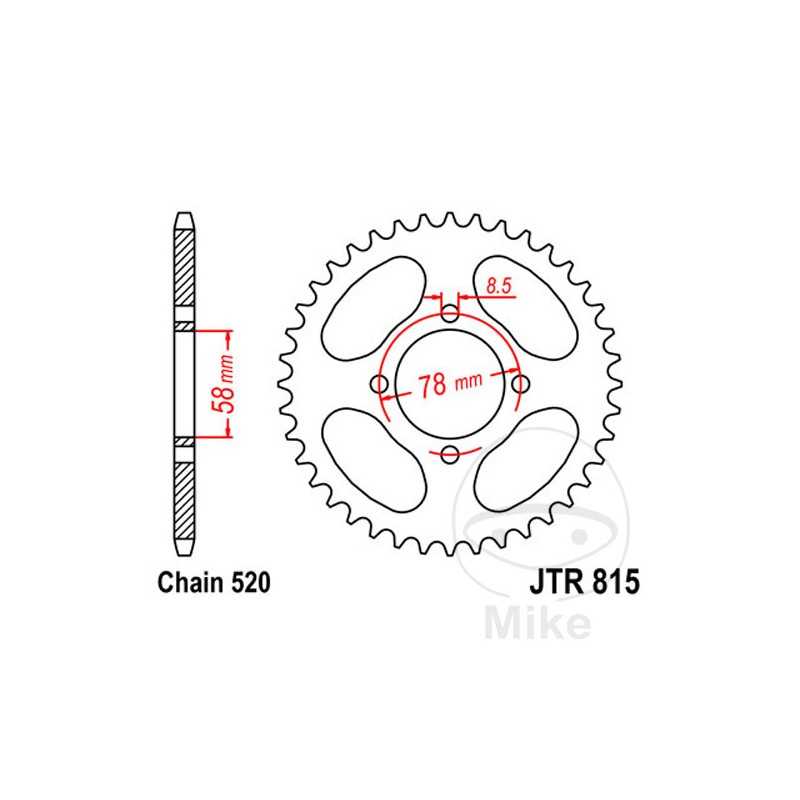

DIVISION: 520
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 78 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 A Bastidores: GT185-44383-GT185-62275 1976
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 B Bastidores: GT185-62276-GT185-70406 1977
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 C Bastidores: GT185-70407-- 1978
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 K Bastidores: GT185-10001-GT185-19775 1973
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 L Bastidores: GT185-19776-GT185-41596 1974
Suzuki GT 185 15 CV, 11 kw 2cil. GT185 M Bastidores: GT185-41597-GT185-44382 1975
Suzuki GT 185 E 15 CV, 11 kw 2cil. GT185 C Bastidores: GT185-500001-- 1978
