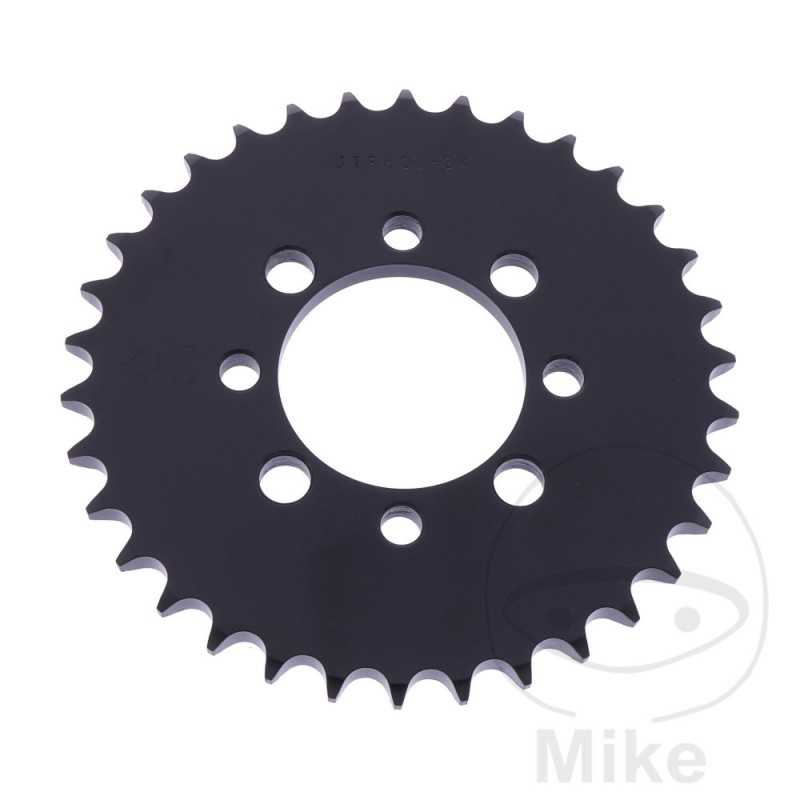

JT SPROCKETS Transmission plate crown 34T P-428 Ø52 MM Ø68 727.02.86

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 428
Inside diameter: 52 mm
CIRCLE SIZE: 68 MM
HOLE: 10.5
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 34
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GT 80 E X3E 6,5 CV, 4,8 kw 1cil. GT80 X Bastidores: GT80-500001-- 1981-1983
Suzuki GT 80 L 6,5 CV, 4,8 kw 1cil. GT80 X Bastidores: GT80-700001-- 1981-1983
Suzuki RM 80 14,5 CV, 10,7 kw 1cil. RM80C C Bastidores: RM80-23349-RM80-39432 1978
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 A Bastidores: RV90-85971-RV90-90673 1976
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 B Bastidores: RV90-90674-RV90-97129 1977-1981
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 K Bastidores: RV90-35601-RV90-47054 1973
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 L Bastidores: RV90-57055-RV90-70622 1974
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 M Bastidores: RV90-70623-RV90-85970 1975
Suzuki TS 80 ER 6,5 CV, 4,8 kw 1cil. TS80 X Bastidores: TS80-100101-TS80-113588 1981
Suzuki TS 80 ER 6,5 CV, 4,8 kw 1cil. TS80 Z Bastidores: TS80-113589-- 1982-1983
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A E Bastidores: SC11A-100001-SC11A-104793 1984-1985
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A G Bastidores: SC11A-104794-SC11A-105405 1986
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A H Bastidores: SC11A-105406-- 1987
