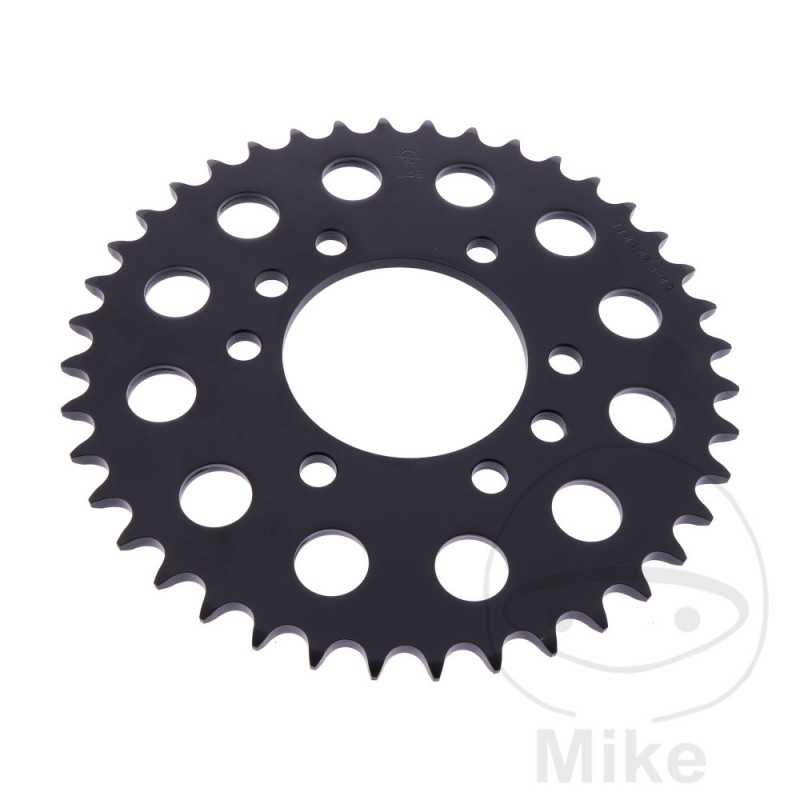

JT SPROCKETS Transmission plate crown 40T P-520 Ø76 MM Ø100 727.01.79

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 520
INNER DIAMETER: 76MM
CIRCLE SIZE: 100 MM
HOLE: 10.5MM
HOLES QUANTITY: 8
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 500 S 27 CV, 20 KW 1CIL. DR500 X BASTIDORES: DR500-500001-DR500-504086 1981
SUZUKI DR 500 S 27 CV, 20 KW 1CIL. DR500 Z BASTIDORES: DR500-504087-- 1982-1983
SUZUKI DR 750 S BIG 50 CV, 37 KW 1CIL. SR41B J BASTIDORES: SR41B-100001-SR41B-101750 1988
SUZUKI DR 750 SU BIG 27 CV, 20 KW 1CIL. SR41B J BASTIDORES: SR41B-100001-SR41B-101750 1988
SUZUKI GN 400 L LLANTA DE FUNDICIÓN 27 CV, 20 KW 1CIL. GN400 T BASTIDORES: GN400-500001-GN400-506770 1980
SUZUKI GN 400 L LLANTA DE FUNDICIÓN 27/17 CV, 20/13 KW 1CIL. GN400 X BASTIDORES: GN400-506771-- 1981-1982
SUZUKI GN 400 LLANTA DE RADIOS 27 CV, 20 KW 1CIL. GN400 T BASTIDORES: GN400-100001-- 1980
SUZUKI GN 400 TD LLANTA DE RADIOS 27 CV, 20 KW 1CIL. GN400 T BASTIDORES: GN400-100001-GN400-108208 1980
SUZUKI GN 400 TD LLANTA DE RADIOS 27/17 CV, 20/13 KW 1CIL. GN400 X BASTIDORES: GN400-108209-- 1981-1982
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C K BASTIDORES: GV73C-100001-GV73C-102566 1989
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C L BASTIDORES: GV73C-102567-GV73C-104826 1990
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C M BASTIDORES: GV73C-104827-GV73C-107721 1991
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C N BASTIDORES: GV73C-107722-- 1992
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C P BASTIDORES: GU75C-100001-GU75C-103514 1993
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C R BASTIDORES: GU75C-103515-GU75C-104538 1994
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB N BASTIDORES: GR7BB-100001-GR7BB-103704 1992
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB P BASTIDORES: GR7BB-103705-GR7BB-106835 1993
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB R BASTIDORES: GR7BB-106836-GR7BB-109339 1994
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB S BASTIDORES: GR7BB-109340-- 1995
SUZUKI LT 500 R QUADRACER 51 CV, 37,5 KW 1CIL. AM11A H BASTIDORES: AM11A-H2100001-- 1987
SUZUKI LT 500 R QUADRACER 51 CV, 37,5 KW 1CIL. AM11A J BASTIDORES: AM11A-J2100001-- 1988
SUZUKI LT 500 R QUADRACER 51 CV, 37,5 KW 1CIL. AM11A K BASTIDORES: AM11A-K2100001-- 1989
SUZUKI LT 500 R QUADRACER 51 CV, 37,5 KW 1CIL. AM11A L BASTIDORES: AM11A-L2100001-- 1990
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K5 BASTIDORES: A51112 henceforth0100692-A51112 henceforth0101354 2005
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K6 BASTIDORES: A51112 henceforth0101355-A51112 henceforth0102598 2006
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K7 BASTIDORES: A51112 henceforth0102599-- 2007
SUZUKI VL 250 LC INTRUDER 24 CV, 18 KW 2CIL. A51212 Y BASTIDORES: A51212 henceforth0100001-A51212 henceforth0101563 2000
SUZUKI VL 250 LC INTRUDER 24 CV, 18 KW 2CIL. WVA51212 K1 BASTIDORES: A51212 henceforth0101564-- 2001
