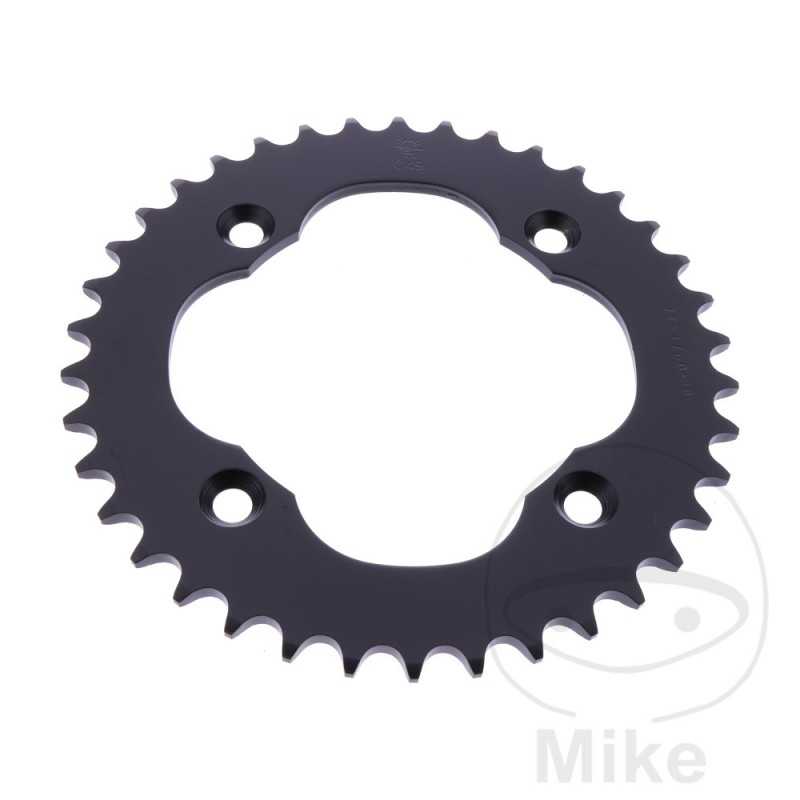

JT SPROCKETS Transmission plate crown 38T P-520 Ø113 MM Ø137 727.01.75

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 520
INSIDE DIAMETER: 113MM
CIRCLE SIZE: 137 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL41A K6 BASTIDORES: AL41A-62100001-- 2006
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL41A K7 BASTIDORES: AL41A-72100001-- 2007
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL43A K8 BASTIDORES: AL43A-82100001-- 2008
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL43A K9 BASTIDORES: AL43A-92100001-- 2009
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL43A L0 BASTIDORES: AL43A-A2100001-- 2010
SUZUKI LT-R 450 QUADRACER 53 CV, 39 KW 1CIL. AL43A L1 BASTIDORES: AL43A-B2100001-- 2011-2012
SUZUKI LT-Z 400 QUADSPORT 38 CV, 28 KW 1CIL. AK4AA K9 BASTIDORES: AK4AA-92100001-- 2009
SUZUKI LT-Z 400 QUADSPORT 38 CV, 28 KW 1CIL. AK4AA L0 BASTIDORES: AK4AA-A2100001-- 2010
SUZUKI LT-Z 400 QUADSPORT 38 CV, 28 KW 1CIL. AK4AA L1 BASTIDORES: AK4AA-B2100001-- 2011
SUZUKI LT-Z 400 QUADSPORT 38 CV, 28 KW 1CIL. AK4AA L2 BASTIDORES: AK4AA-C2100001-- 2012-2017
