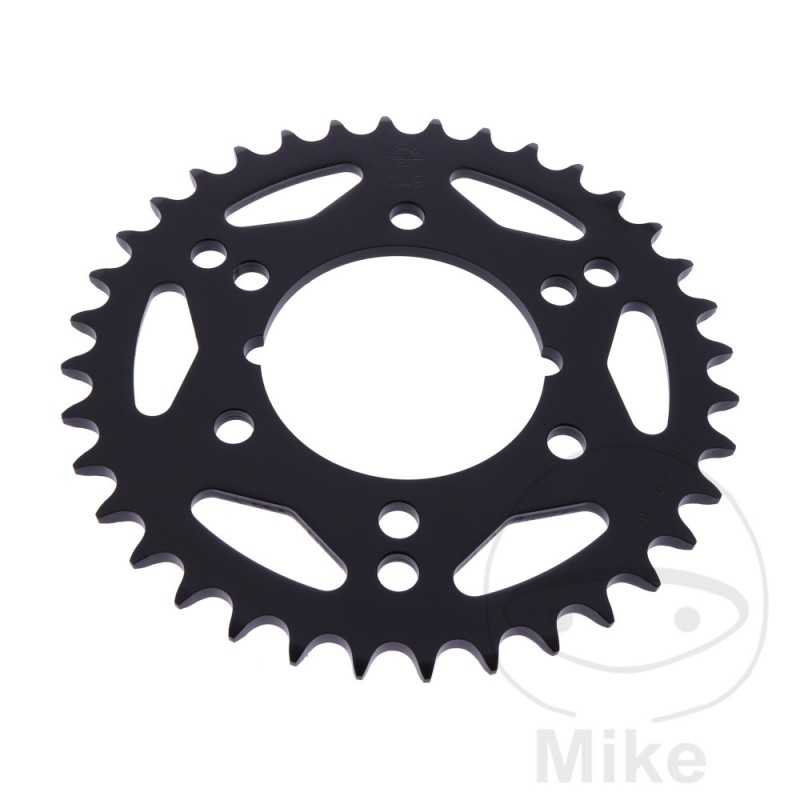

JT SPROCKETS Transmission plate crown 36T P-520 Ø80 MM Ø104 727.01.65

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.
DIVISION: 520
INNER DIAMETER: 80MM
CIRCLE SIZE: 104 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 36
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10R 1000 C Ninja 174 CV, 128 kw 4cil. ZXT00CCA 1H Bastidores: ZXT00CCA henceforth00001-ZXT00CCA henceforth20000 2004
Kawasaki ZX-10R 1000 C Ninja 174 CV, 128 kw 4cil. ZXT00CCA 2H Bastidores: ZXT00CCA henceforth20001-ZXT00CCA-999999 2005
Kawasaki ZX-10R 1000 C Ninja 98 CV, 72 kw 4cil. ZXT00CCA 1H Bastidores: ZXT00CCA henceforth00001-ZXT00CCA henceforth20000 2004
Kawasaki ZX-10R 1000 C Ninja 98 CV, 72 kw 4cil. ZXT00CCA 2H Bastidores: ZXT00CCA henceforth20001-ZXT00CCA-999999 2005
Kawasaki ZX-10R 1000 C Ninja SE ABS 200/98 CV, 147/72 kw 4cil. ZXT02CCA JF Bastidores: ZXT02CCA henceforth00001-ZXT02CCA-999999 2018
Kawasaki ZX-10R 1000 E Ninja KRT Replica ABS 203 CV, 149 kw 4cil. ZXT02EEA KFA Bastidores: ZXT02EEA henceforth00001-ZXT02EEA henceforth04000 2019
Kawasaki ZX-10R 1000 EL Ninja KRT Replica ABS 203 CV, 149 kw 4cil. ZXT02EEA F Bastidores: ZXT02EEA henceforth04001-ZXT02EEA-999999 2020
Kawasaki ZX-10R 1000 G Ninja ABS 203 CV, 149 kw 4cil. ZXT02EGA KF Bastidores: ZXT02EGA henceforth00001-ZXT02EGA-999999 2019
Kawasaki ZX-10R 1000 H Ninja SE ABS 203 CV, 149 kw 4cil. ZXT02EHA KF Bastidores: ZXT02EHA henceforth00001-ZXT02EHA henceforth04000 2019
Kawasaki ZX-10R 1000 H Ninja SE ABS 203 CV, 149 kw 4cil. ZXT02EHA LF Bastidores: ZXT02EHA henceforth04001-ZXT02EHA-999999 2020
Kawasaki ZX-10R 1000 J Ninja 200 CV, 147 kw 4cil. ZXT00JJA BF Bastidores: ZXT00JJA henceforth00001-ZXT00JJA henceforth10000 2011
Kawasaki ZX-10R 1000 J Ninja 200 CV, 147 kw 4cil. ZXT00JJA CF Bastidores: ZXT00JJA henceforth10001-ZXT00JJA henceforth16000 2012
Kawasaki ZX-10R 1000 J Ninja 200 CV, 147 kw 4cil. ZXT00JJA DF Bastidores: ZXT00JJA henceforth16001-ZXT00JJA henceforth20000 2013
Kawasaki ZX-10R 1000 J Ninja 200 CV, 147 kw 4cil. ZXT00JJA EF Bastidores: ZXT00JJA henceforth20001-- 2014
Kawasaki ZX-10R 1000 J Ninja 200 CV, 147 kw 4cil. ZXT00JJA FF Bastidores: ZXT00JJA henceforth24001-- 2015
Kawasaki ZX-10R 1000 J Ninja 98 CV, 72 kw 4cil. ZXT00JJA BF Bastidores: ZXT00JJA henceforth00001-ZXT00JJA henceforth10000 2011
Kawasaki ZX-10R 1000 J Ninja 98 CV, 72 kw 4cil. ZXT00JJA CF Bastidores: ZXT00JJA henceforth10001-ZXT00JJA henceforth16000 2012
Kawasaki ZX-10R 1000 J Ninja 98 CV, 72 kw 4cil. ZXT00JJA DF Bastidores: ZXT00JJA henceforth16001-ZXT00JJA henceforth20000 2013
Kawasaki ZX-10R 1000 J Ninja 98 CV, 72 kw 4cil. ZXT00JJA EF Bastidores: ZXT00JJA henceforth20001-- 2014
Kawasaki ZX-10R 1000 J Ninja 98 CV, 72 kw 4cil. ZXT00JJA FF Bastidores: ZXT00JJA henceforth24001-- 2015
Kawasaki ZX-10R 1000 J Ninja Anniversary Edition 200 CV, 147 kw 4cil. ZXT00JJA FFA Bastidores: ZXT00JJA henceforth24001-- 2015-2016
Kawasaki ZX-10R 1000 J Ninja Anniversary Edition 98 CV, 72 kw 4cil. ZXT00JJA FFA Bastidores: ZXT00JJA henceforth24001-- 2015-2016
Kawasaki ZX-10R 1000 K Ninja ABS 200 CV, 147 kw 4cil. ZXT00JKA BF Bastidores: ZXT00JKA henceforth00001-ZXT00JKA henceforth10000 2011
Kawasaki ZX-10R 1000 K Ninja ABS 200 CV, 147 kw 4cil. ZXT00JKA CF Bastidores: ZXT00JKA henceforth10001-ZXT00JKA henceforth16000 2012
Kawasaki ZX-10R 1000 K Ninja ABS 200 CV, 147 kw 4cil. ZXT00JKA DF Bastidores: ZXT00JKA henceforth16001-ZXT00JKA henceforth20000 2013
Kawasaki ZX-10R 1000 K Ninja ABS 200 CV, 147 kw 4cil. ZXT00JKA EF Bastidores: ZXT00JKA henceforth20001-ZXT00JKA henceforth24000 2014
Kawasaki ZX-10R 1000 K Ninja ABS 200 CV, 147 kw 4cil. ZXT00JKA FF Bastidores: ZXT00JKA henceforth24001-ZXT00JKA-999999 2015
Kawasaki ZX-10R 1000 K Ninja ABS 98 CV, 72 kw 4cil. ZXT00JKA BF Bastidores: ZXT00JKA henceforth00001-ZXT00JKA henceforth10000 2011
Kawasaki ZX-10R 1000 K Ninja ABS 98 CV, 72 kw 4cil. ZXT00JKA CF Bastidores: ZXT00JKA henceforth10001-ZXT00JKA henceforth16000 2012
Kawasaki ZX-10R 1000 K Ninja ABS 98 CV, 72 kw 4cil. ZXT00JKA DF Bastidores: ZXT00JKA henceforth16001-ZXT00JKA henceforth20000 2013
Kawasaki ZX-10R 1000 K Ninja ABS 98 CV, 72 kw 4cil. ZXT00JKA EF Bastidores: ZXT00JKA henceforth20001-ZXT00JKA henceforth24000 2014
Kawasaki ZX-10R 1000 K Ninja ABS 98 CV, 72 kw 4cil. ZXT00JKA FF Bastidores: ZXT00JKA henceforth24001-ZXT00JKA-999999 2015
Kawasaki ZX-10R 1000 K Ninja Anniversary Edition ABS 200 CV, 147 kw 4cil. ZXT00JKA FFA Bastidores: ZXT00JKA henceforth24001-ZXT00JKA-999999 2015-2016
Kawasaki ZX-10R 1000 K Ninja Anniversary Edition ABS 98 CV, 72 kw 4cil. ZXT00JKA FFA Bastidores: ZXT00JKA henceforth24001-ZXT00JKA-999999 2015-2016
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GF Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA HF Bastidores: ZXT00SSA henceforth08001-ZXT00SSA henceforth14000 2017
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA JF Bastidores: ZXT00SSA henceforth14001-ZXT00SSA-999999 2018
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GFA Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA HFA Bastidores: ZXT00SSA henceforth08001-ZXT00SSA henceforth14000 2017
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA JFA Bastidores: ZXT00SSA henceforth14001-ZXT00SSA-999999 2018
Kawasaki ZX-10R 1000 S Ninja Winter Test Edition ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GFB Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016-2017
Kawasaki ZX-10RR 1000 Z Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SZA HF Bastidores: ZXT00SZA henceforth08001-ZXT00SZA henceforth14000 2017
Kawasaki ZX-10RR 1000 Z Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SZA JF Bastidores: ZXT00SZA henceforth14001-ZXT00SZA-999999 2018
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6RR 600 K Ninja 113 CV, 83 kw 4cil. ZX600KKA 1H Bastidores: ZX600KKA henceforth00001-ZX600KKA-999999 2003
Kawasaki ZX-6RR 600 M Ninja 117 CV, 86 kw 4cil. ZX600KMA 1H Bastidores: ZX600KMA henceforth07001-ZX600KMA-999999 2004
Polaris Scrambler 400 4WD 1cil. - Bastidores: --- 1995-1996
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2000-2008
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2010-2012
Polaris Scrambler 500 4WD 28,5 CV, 21 kw 1cil. - Bastidores: --- 2009
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: --- 1996-1996
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: --- 2002-2006
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: A01BA25CA-- 2001
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: A01BA25CB-- 2001
Polaris Trail Blazer 330 2WD 19 CV, 14 kw 1cil. - Bastidores: --- 2008-2013
Polaris Trail Boss 250 4WD 1cil. - Bastidores: --- 1989-1995
Polaris Trail Boss 330 2WD 20 CV, 14,7 kw 1cil. - Bastidores: --- 2003-2013
Polaris Trail Boss 350 4WD 1cil. - Bastidores: --- 1990-1992
Polaris Xplorer 300 4WD 1cil. - Bastidores: --- 1996-1997
Polaris Xpress 300 2WD 1cil. - Bastidores: --- 1996-1997
