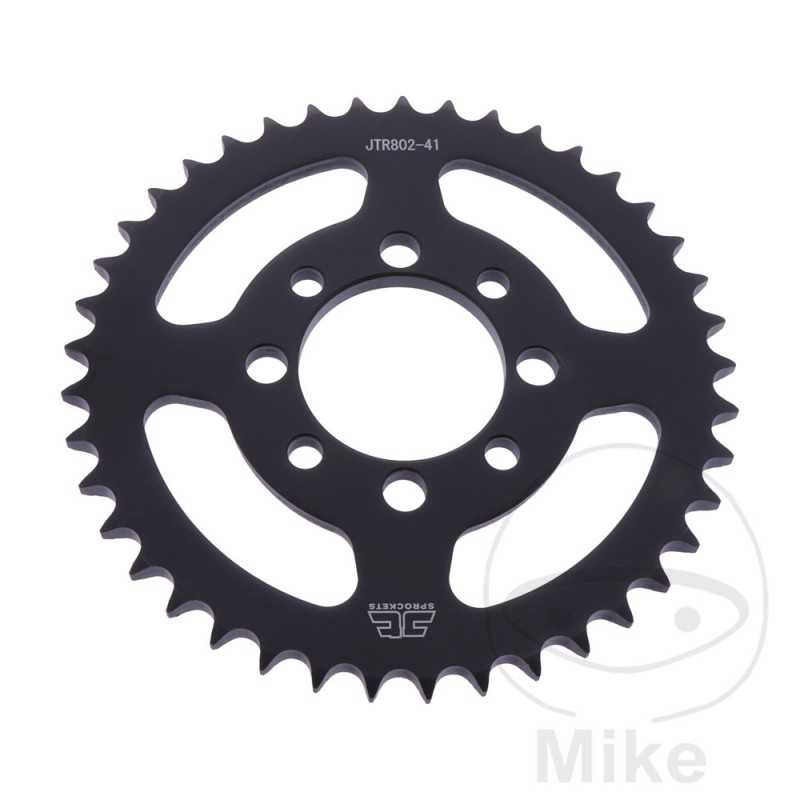

JT SPROCKETS Transmission plate crown 41T P-428 Ø52 MM Ø68 727.00.60

The JT Sprockets manufacturing is today the largest and most modern production plant for gears and sprockets in the world,

equipped among other things with the latest generation of CNC machine tools.

JT Sprockets produces the full range of gears and sprockets for the original equipment and aftermarket.



Each sprocket and chain goes through 25 production stages and thus undergoes more than ten individual quality checks in order to exit successful production.



JT Sprockets does it the right way: by turning, milling, and drilling! This is the only way to achieve the highest quality to the tightest tolerances and the best tooth profile.

After subsequent thermal compensation each item is checked by hand - so JT Sprockets sets new quality standards in the motorcycle industry.
DIVISION: 428
Inside diameter: 52 mm
CIRCLE SIZE: 68 MM
HOLE: 10.5
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GT 80 E X3E 6,5 CV, 4,8 kw 1cil. GT80 X Bastidores: GT80-500001-- 1981-1983
Suzuki GT 80 L 6,5 CV, 4,8 kw 1cil. GT80 X Bastidores: GT80-700001-- 1981-1983
Suzuki RM 80 14,5 CV, 10,7 kw 1cil. RM80C C Bastidores: RM80-23349-RM80-39432 1978
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 A Bastidores: RV90-85971-RV90-90673 1976
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 B Bastidores: RV90-90674-RV90-97129 1977-1981
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 K Bastidores: RV90-35601-RV90-47054 1973
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 L Bastidores: RV90-57055-RV90-70622 1974
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 M Bastidores: RV90-70623-RV90-85970 1975
Suzuki TS 80 ER 6,5 CV, 4,8 kw 1cil. TS80 X Bastidores: TS80-100101-TS80-113588 1981
Suzuki TS 80 ER 6,5 CV, 4,8 kw 1cil. TS80 Z Bastidores: TS80-113589-- 1982-1983
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A E Bastidores: SC11A-100001-SC11A-104793 1984-1985
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A G Bastidores: SC11A-104794-SC11A-105405 1986
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A H Bastidores: SC11A-105406-- 1987
