JT SPROCKETS Transmission plate crown 56T P-428 Ø152 MM Ø164 727.03.70

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

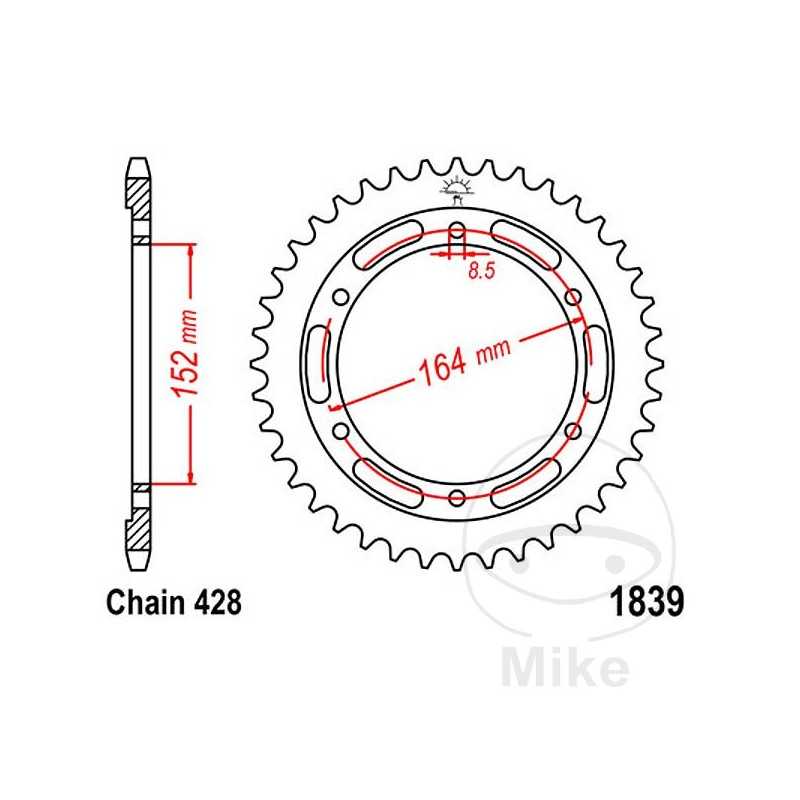

DIVISION: 428
INSIDE DIAMETER: 152MM
CIRCLE SIZE: 164 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 56
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA SR 400 23,2 CV, 17 KW 1CIL. RH051 2RD1 BASTIDORES: RH051 henceforth00301-- 2014-2016
YAMAHA SR 400 ANNIVERSARY 23,2 CV, 17 KW 1CIL. RH051 2RDB BASTIDORES: RH051 henceforth02515-- 2016
YAMAHA SR 500 SP DISCOS DE FRENO 24 CV,17,3 KW 1CIL. 48T 3EB2 BASTIDORES: 48T henceforth30101-48T henceforth34000 1991
YAMAHA SR 500 SP FRENOS DE TAMBOR 24 CV,17,3 KW 1CIL. 48T 3EB3 BASTIDORES: 48T henceforth34101-48T henceforth36000 1991
YAMAHA SR 500 SP FRENOS DE TAMBOR 24 CV,17,3 KW 1CIL. 48T 3EB4 BASTIDORES: 48T henceforth36101-48T henceforth41000 1992
YAMAHA SR 500 SP FRENOS DE TAMBOR 24 CV,17,3 KW 1CIL. 48T 3EB5 BASTIDORES: 48T henceforth41101-- 1993-1994
YAMAHA SR 500 SP FRENOS DE TAMBOR 24 CV,17,3 KW 1CIL. 48T 3EB6 BASTIDORES: 48T henceforth52101-- 1995-1999
