JT SPROCKETS Transmission plate crown 47T P-530 Ø098 MM Ø130 727.02.64

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

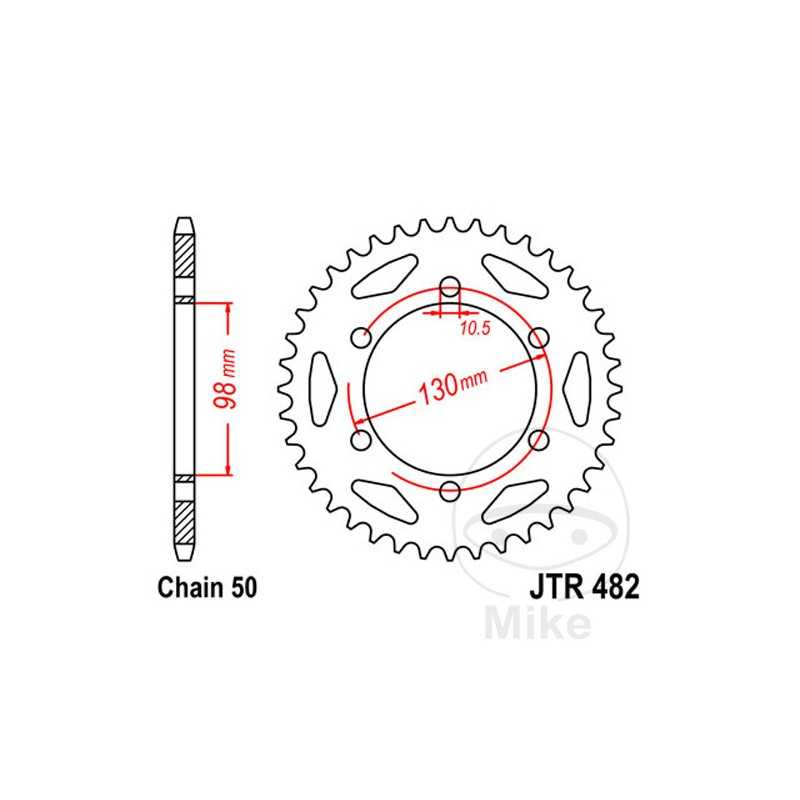

DIVISION: 530
INSIDE DIAMETER: 98MM
CIRCLE SIZE: 130 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI H2 750 A MACH 4 74 CV, 54 KW 3CIL. H2F BASTIDORES: H2F-23671-H2F-32200 1973
KAWASAKI H2 750 B MACH 4 74 CV, 54 KW 3CIL. H2F BASTIDORES: H2F-32201-H2F-42546 1974
KAWASAKI H2 750 C MACH 4 71 CV, 52 KW 3CIL. H2F BASTIDORES: H2F-42547-- 1975
KAWASAKI H2 750 MACH 4 74 CV, 54 KW 3CIL. H2F BASTIDORES: H2F henceforth0001-H2F-23670 1972
