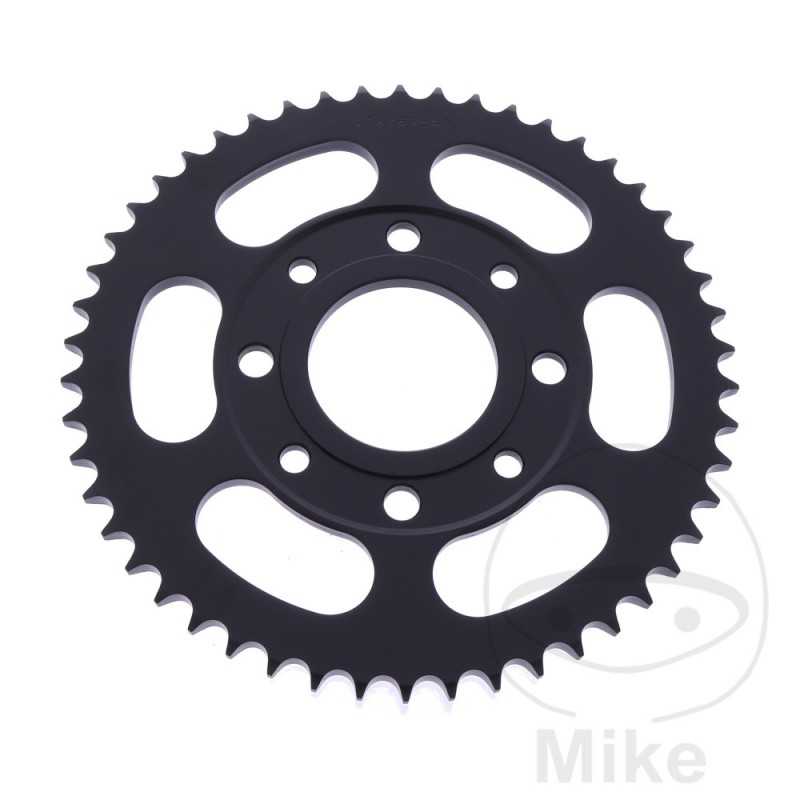

JT SPROCKETS Transmission plate crown 50T P-428 Ø058 MM Ø090 727.02.48

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 428
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 90 MM
HOLE: 10.5
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 50
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
ATU Hipster 125 12,6 CV, 9,3 kw 1cil. R1 Bastidores: --- 2001-2004
ATU Meteorit 125 Cruiser 11 CV, 8 kw 1cil. RF-25 Bastidores: --- 1998-2000
Brixton Crossfire 125 XS CBS 11,1 CV, 8,2 kw 1cil. - Bastidores: --- 2022
Brixton Crossfire 125 XS CBS 11,3 CV, 8,3 kw 1cil. - Bastidores: --- 2020-2021
Daelim VC 125 Advance 15 CV, 11 kw 1cil. VC125F Bastidores: VC125F1050000-VC125F1069999 1996
Daelim VC 125 Advance 80 Km/h 12 CV, 9 kw 1cil. VC125F Bastidores: VC125F1050000-VC125F1069999 1996
Daelim VJ 125 Fi Roadwin 14,2 CV, 10,4 kw 1cil. BA4BL Bastidores: KMYBA4BLS7C000001-KMYBA4BLS9C999999 2007-2016
Daelim VJ 125 Roadwin 14,8 CV, 10,9 kw 1cil. BA4BL Bastidores: KMYBA4BLS4C000001-KMYBA4BLS6C999999 2004-2007
Daelim VJF 125 R Fi Roadwin 14,8 CV, 10,9 kw 1cil. BA8BL Bastidores: KMYBA8BLS7C000001-KMYBA8BLSGC999999 2007-2018
Daelim VL 125 Daystar Classic llanta de radios 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2002-2005
Daelim VL 125 Daystar Classic llanta de radios 80 Km/h 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2002-2003
Daelim VL 125 Daystar llanta de fundición 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2000-2007
Daelim VL 125 Daystar llanta de fundición 80 km/h 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2000-2003
Daelim VL 125 Fi Daystar llanta de fundición 12,8 CV, 9,4 kw 1cil. BA1BL Bastidores: KMYBA1BLS7C300261-KMYBA1BLSCC311391 2012
Daelim VL 125 Fi Daystar llanta de fundición 13,3 CV, 9,8 kw 1cil. BA1BL Bastidores: KMYBA1BLS7C300261-KMYBA1BLSCC311391 2008-2011
Daelim VS 125 12,2 CV, 9 kw 1cil. VS125FK Bastidores: KMYVS125FKV henceforth00000-KMYVS125FKV-109999 1997-1998
Daelim VS 125 Evolution 12,2 CV, 9 kw 1cil. VS125E Bastidores: VS125E henceforth00001-VS125E-1039999 2000-2003
Daelim VS 125 Evolution 12,2 CV, 9 kw 1cil. VS125FK Bastidores: KMYVS125FKX-300420-KMYVS125FKX-302395 1999
Daelim VT 125 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-W000010-KMYVT125FK-W010214 1998-2000
Daelim VT 125 80 Km/h 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-W000010-KMYVT125FK-W010214 1998-2000
Daelim VT 125 Evolution 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-Y019730-KMYVT125FK-Y020387 2000-2002
Daelim VT 125 Evolution 80 Km/h 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-Y019730-KMYVT125FK-Y020387 2000-2002
Honda CB 100 K Super Sports 11,5 CV, 8,4 kw 1cil. CB100 0 Bastidores: CB100-100001-- 1970
Honda CB 100 K Super Sports 11,5 CV, 8,4 kw 1cil. CB100 1 Bastidores: CB100-200001-- 1971
Honda CB 100 K Super Sports 11,5 CV, 8,4 kw 1cil. CB100 2 Bastidores: CB100-1212411-CB100-1255092 1972-1976
Honda CB 125 J 14 CV, 10 kw 1cil. CB125J S Bastidores: CB125J-1008876-- 1975-1979
Honda CB 125 T Twin 10 CV, 7,4 kw 2cil. CB125T B Bastidores: CB125T-3100001-- 1981-1986
Honda CB 125 T Twin 17 CV, 13 kw 2cil. CB125T Bastidores: CB125T-2000775-CB125T-2021108 1978-1979
Honda CB 125 T Twin 17 CV, 13 kw 2cil. CB125T A Bastidores: CB125T-2300941-CB125T-2315059 1980
Honda CB 125 T Twin 17 CV, 13 kw 2cil. CB125T B Bastidores: CB125T-2400001-CB125T-2499999 1981-1986
Honda CB 125 T2 Twin 10 CV, 7,4 kw 2cil. CB125T Bastidores: CB125T-3000002-CB125 T-3000301 1979-1986
Honda CB 125 T2 Twin 17 CV, 13 kw 2cil. CB125T Bastidores: CB125T-2201084-CB125T-2210513 1979-1986
Honda CB 125 TD 17 CV, 13 kw 2cil. JC06 C Bastidores: JC06-5000007-JC06-5000009 1982
Honda CG 125 1cil. JC182 T Bastidores: 9C2 JC1821-TR010001-- 1996
Honda CG 125 1cil. JC1821 S Bastidores: 9C2 JC1821-RR010001-- 1995
Honda CG 125 10,3 CV, 7,6 kw 1cil. JC27A W Bastidores: NMH JC27A-WJ500010-- 1998-1999
Honda CG 125 80 Km/h 10,3 CV, 7,6 kw 1cil. JC27B W Bastidores: NMH JC27B-WJ500001-- 1998-1999
Honda CG 125 M 1cil. - 1 Bastidores: --- 2001
Honda CM 125 C Custom 10 CV, 7,4 kw 2cil. JC05 C Bastidores: JC05-5000022-JC05-5004804 1982-1983
Honda CM 125 T 14 CV, 10 kw 2cil. CM125T Bastidores: CM125T-2001281-CM125T-2099999 1978-1980
Honda CM 125 T 14 CV, 10 kw 2cil. CM125T B Bastidores: CM125T-2100001-CM125T-2199999 1981
Honda CM 185 T 17 CV, 13 kw 2cil. CM185T Bastidores: CM185T-2010454-CM185T-2099999 1978-1980
Honda CM 185 T 9,5 CV, 7 kw 2cil. CM185T Bastidores: CM185T-3000007-CM185T-3099999 1978-1980
Honda CM 200 T 10 CV, 7,4 kw 2cil. MC01 A Bastidores: MC01-3000001-MC01-3000207 1980
Honda CM 200 T 10 CV, 7,4 kw 2cil. MC01 B Bastidores: MC01-3100001-MC01-3199999 1981-1984
Honda CM 200 T 17 CV, 13 kw 2cil. MC01 A Bastidores: MC01-2005578-MC01-2024604 1980
Honda CM 200 T 17 CV, 13 kw 2cil. MC01 B Bastidores: MC01-2100001-MC01-2199999 1981-1984
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A D Bastidores: MLH JC61A-D5000001-MLH JC61A-D5099999 2013
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A E Bastidores: MLH JC61A-E5100001-MLH JC61A-E5199999 2014
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A F Bastidores: MLH JC61A-F5200001-- 2015
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A G Bastidores: MLH JC61A-G5300001-MLH JC61A-G5399999 2016
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A H Bastidores: MLH JC75A-H5000001-MLH JC75A-H5099999 2017
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A J Bastidores: MLH JC75A-J5100001-- 2018-2020
Honda MSX 125 A Grom ABS 10 CV, 7,4 kw 1cil. JC92A P Bastidores: MLH JC92A-P5200001-- 2023
Honda MSX 125 A Grom ABS 9,8 CV, 7,2 kw 1cil. JC92A M Bastidores: MLH JC92A-M5000001-MLH JC92A-M5099999 2021
Honda MSX 125 A Grom ABS 9,8 CV, 7,2 kw 1cil. JC92A N Bastidores: MLH JC92A-N5100001-MLH JC92A-N5199999 2022
Honda SL 125 S 12 CV, 9 kw 1cil. SL125S K0 Bastidores: SL125S-1000001-SL125S-1038068 1971
Honda SL 125 S 12 CV, 9 kw 1cil. SL125S K1 Bastidores: SL125S-1114861-SL125S-1159145 1972-1976
Honda TL 125 S 9,5 CV, 7 kw 1cil. TL125S Bastidores: TL125S-1011481-TL125S-1019091 1978
Honda XL 125 K 13 CV, 10 kw 1cil. XL125 2 Bastidores: XL125-1211494-XL125-1230521 1976
Honda XL 125 K 13 CV, 10 kw 1cil. XL125 3 Bastidores: XL125-2005296-XL125-2022762 1977-1978
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S A Bastidores: L185S-9100001-L185S-9199999 1980
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S B Bastidores: L185S-9200001-L185S-9299999 1981-1983
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S Z Bastidores: L185S-9000013-L185S-9001215 1979
Honda XL 185 S 16 CV, 12 kw 1cil. L185S A Bastidores: L185S-5100352-L185S-5103903 1980
Honda XL 185 S 16 CV, 12 kw 1cil. L185S B Bastidores: L185S-5200007-L185S-5299999 1981-1983
Honda XL 185 S 16 CV, 12 kw 1cil. L185S Z Bastidores: L185S-5005105-L185S-5018892 1979
Hyosung GS 125 14 CV, 10,3 kw 1cil. NF41A Bastidores: --- 1997-2000
Keeway Superlight 125 10,6 CV, 7,8 kw 1cil. - Bastidores: --- 2014-2017
Keeway Superlight 125 9,5 CV, 7 kw 1cil. CSLT012501 Bastidores: --- 2006-2011
Keeway Superlight 125 ie CBS 10,6 CV, 7,8 kw 1cil. - Bastidores: --- 2017-2019
Keeway Superlight 125 ie CBS Frontscheibe 10,6 CV, 7,8 kw 1cil. - Bastidores: --- 2020
Keeway Superlight 125 ie CBS Frontscheibe Euro4 10,6 CV, 7,8 kw 1cil. - Bastidores: --- 2021
Keeway Superlight 125 ie Limited CBS 10,6 CV, 7,8 kw 1cil. - Bastidores: --- 2017-2020
Keeway Superlight 125 Limited 10,6 CV, 7,8 kw 1cil. CSLT012502 Bastidores: --- 2013-2017
Keeway Superlight 125 V2 Mattschwarz 9,5 CV, 7 kw 1cil. CSLT012502 Bastidores: --- 2010-2016
Keeway TX 125 S 11,2 CV, 8,2 kw 1cil. - Bastidores: --- 2009-2017
Kreidler Enduro 125 DD 11,5 CV, 8,4 kw 1cil. QM125GY-2B(BSD) Bastidores: --- 2008-2014
Kreidler Enduro 125 DD 80 Km/h 7,7 CV, 5,7 kw 1cil. QM125GY-2B(BSD) Bastidores: --- 2008-2011
Kreidler Supermoto 125 DD 11,5 CV, 8,4 kw 1cil. KR001Q Bastidores: --- 2008-2014
Kreidler Supermoto 125 DD 80 Km/h 7,7 CV, 5,7 kw 1cil. KR001Q Bastidores: --- 2008-2012
Kymco CK 125 12,2 CV, 9 kw 1cil. RA25EH CK125-2F Bastidores: LC2RA25EH-- 2006-2007
Kymco Hipster 125 4V 12,6 CV, 9,3 kw 1cil. R11010 Bastidores: RFBR11010-- 2002-2004
Kymco K-Pipe 125 8,2 CV, 6 kw 1cil. B31000 Bastidores: LC2B31000-- 2013-2016
Kymco K-Pipe 50 1,8 CV, 1,3 kw 1cil. B30000 Bastidores: LC2B30000-- 2013-2017
Kymco Pulsar 125 11,6 CV, 8,5 kw 1cil. M20000 M2 Bastidores: RFBM20000-- 2002-2004
Kymco Pulsar 125 II 10,2 CV, 7,5 kw 1cil. A10000 Bastidores: LC2A10000-13-- 2008-2012
Kymco Pulsar 125 M 10,2 CV, 7,5 kw 1cil. A10000 CK125-7B Bastidores: LC2A10000-25-- 2013-2014
Kymco Pulsar 125 S 10,9 CV, 8 kw 1cil. - Bastidores: --- 2014-2015
Kymco Stryker 125 Off Road 10,9 CV, 8 kw 1cil. AF25AB Bastidores: RFBAF25AB-- 2000-2005
Kymco Stryker 125 On Road 10,9 CV, 8 kw 1cil. AF25AA Bastidores: RFBAF25AA-- 2000-2003
Kymco Zing 125 10,9 CV, 8 kw 1cil. RF25AA Bastidores: RFBRF25AA-- 1997-2001
Mash Cafe Racer 125 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2015-2016
Mash Scrambler 125 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2015-2016
Mash Seventy 125 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2016
Mash Seventy Five 125 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2015-2016
Mash Seventy Five 125 Vintage 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2015-2016
Qingqi QM125GY-2B(ASD) 125 DD Liger Supermoto 11,3 CV, 8,3 kw 1cil. QM125GY-2B(ASD) Bastidores: --- 2008-2009
Qingqi QM125GY-2B(BSD) 125 DD Liger Enduro 11,3 CV, 8,3 kw 1cil. QM125GY-2B(BSD) Bastidores: --- 2008-2009
Sachs ZX 125 4T 11,3 CV, 8,3 kw 1cil. QM125GY-2B(BSD) Bastidores: --- 2010
Sachs ZZ 125 4T 11,3 CV, 8,3 kw 1cil. QM125GY-2B(ASD) Bastidores: --- 2010
SFM ZX 125 4T 11,4 CV, 8,4 kw 1cil. QM125GY-2B(BSD) Bastidores: --- 2011-2013
SFM ZZ 125 4T 11,4 CV, 8,4 kw 1cil. QM125GY-2B(ASD) Bastidores: --- 2011-2013
