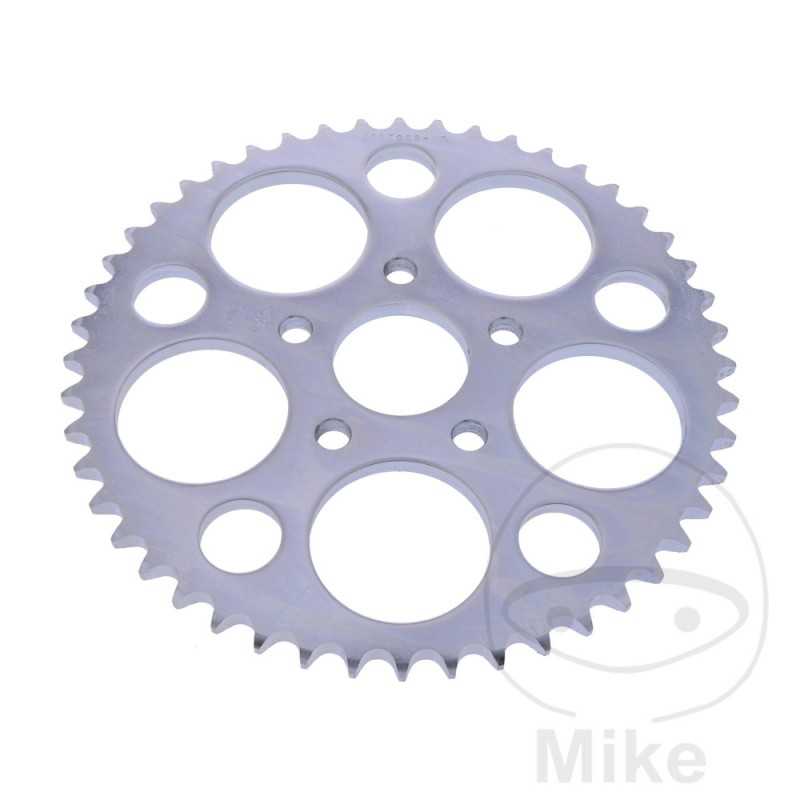

JT SPROCKETS Transmission plate crown 48T P-530 Ø50.2 MM Ø082 727.00.94

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 530
INSIDE DIAMETER: 50.2MM
CIRCLE SIZE: 82 MM
HOLE: 12MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 48
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson XLH 1100 Sportster 55 CV, 40 kw 2cil. CAN XL/2 Bastidores: --- 1986-1987
Harley Davidson XLH 1200 Sportster 50 CV, 37 kw 2cil. CAP XL/2 Bastidores: --- 1988-1990
Harley Davidson XLH 1200 Sportster 58 CV, 43 kw 2cil. CAP XL/2 Bastidores: --- 1988-1990
Harley Davidson XLH 883 Sportster 24 CV, 17,5 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster 27 CV, 20 kw 2cil. CAM XL/2 Bastidores: --- 1987
Harley Davidson XLH 883 Sportster 46 CV, 34 kw 2cil. CAM XL/2 Bastidores: --- 1987
Harley Davidson XLH 883 Sportster 48 CV, 35 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster Deluxe 24 CV, 17,5 kw 2cil. CFM XL/2 Bastidores: --- 1988-1991
Harley Davidson XLH 883 Sportster Deluxe 48 CV, 35 kw 2cil. CFM XL/2 Bastidores: --- 1988-1991
Harley Davidson XLH 883 Sportster Hugger 24 CV, 17,5 kw 2cil. CEM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster Hugger 48 CV, 35 kw 2cil. CEM XL/2 Bastidores: --- 1988-1992
