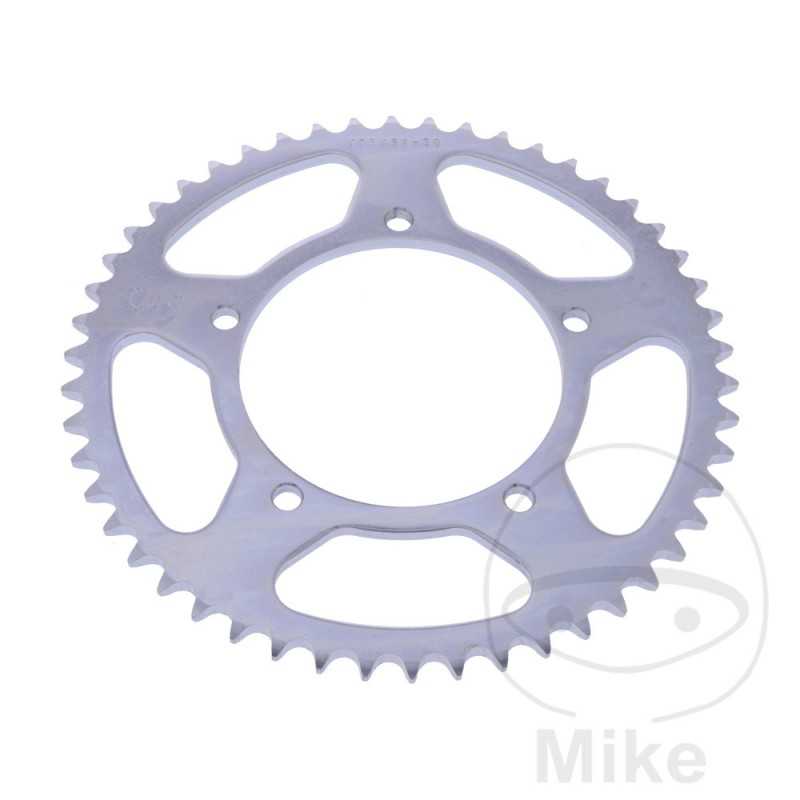

JT SPROCKETS Transmission plate crown 50T P-420 Ø100 MM Ø116 727.00.79

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 420
INNER DIAMETER: 100MM
CIRCLE SIZE: 116 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 50
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX060BBA 15 Bastidores: KX060BBA henceforth52001-KX060BBA henceforth62000 1999
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 10 Bastidores: KX60B henceforth22001-KX60B henceforth26000 1994
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 11 Bastidores: KX60B henceforth26001-KX60B henceforth35000 1995
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 12 Bastidores: KX60B henceforth35001-KX60B henceforth40000 1996
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 13 Bastidores: KX60B henceforth40001-KX60B henceforth45000 1997
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 14 Bastidores: KX60B henceforth45001-KX60B henceforth52000 1998
Kawasaki KX 60 B 15 CV, 11 kw 1cil. KX60B 9 Bastidores: KX60B henceforth19001-KX60B henceforth22000 1993
Kawasaki KX 80 E 1cil. KX80DE 2 Bastidores: KX08DE henceforth05301-- 1984
Kawasaki KX 80 E 1cil. KX80E 1 Bastidores: KX080E henceforth00001-- 1983
Kawasaki KX 80 E 1cil. KX80E 3 Bastidores: KX080E henceforth12801-- 1985
