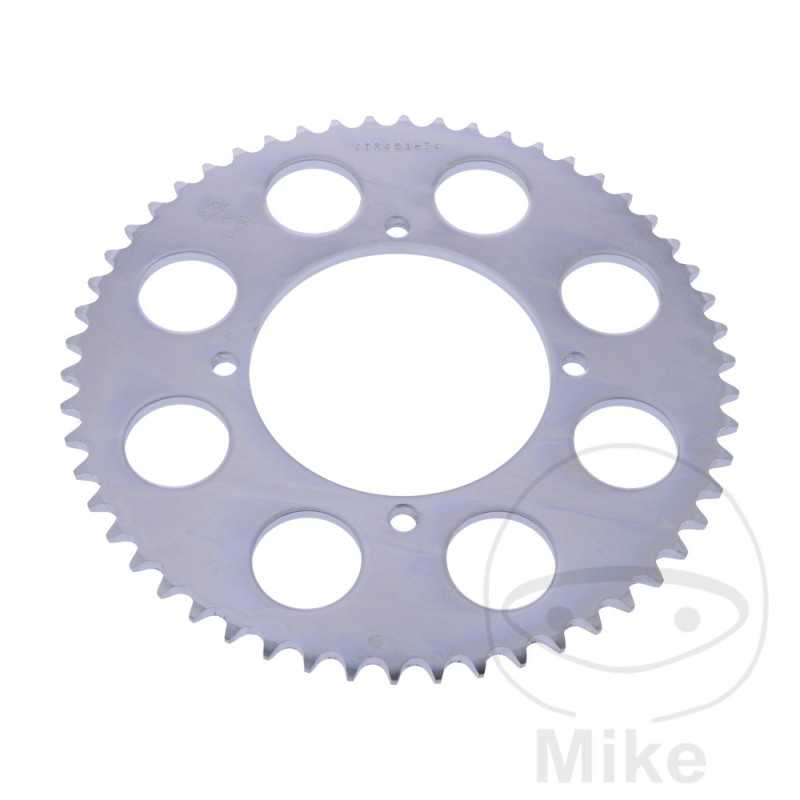

JT SPROCKETS Transmission plate crown 54T P-420 Ø100 MM Ø116 727.00.76

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 420
INNER DIAMETER: 100MM
CIRCLE SIZE: 116 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 54
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 80 G 1cil. - 2 Bastidores: --- 1987
Kawasaki KX 80 G 1cil. KX80G 1 Bastidores: KX080G henceforth00001-- 1986
Kawasaki KX 80 L 1cil. K0X80L 1 Bastidores: KX080L henceforth00001-KX080L henceforth03000 1988
Kawasaki KX 80 L 1cil. KX080L 2 Bastidores: KX080L henceforth03001-KX080L henceforth08000 1989
Kawasaki KX 80 L 1cil. KX080L 3 Bastidores: KX080L henceforth08001-KX080L-999999 1990
Kawasaki KX 80 R 1cil. KX080R 1 Bastidores: KX080R henceforth00001-KX080R henceforth05000 1991
Kawasaki KX 80 R 1cil. KX080R 2 Bastidores: KX080R henceforth05001-KX080R henceforth07000 1992
Kawasaki KX 80 R 17/14 pulgadas 26 CV, 19 kw 1cil. KX080R 3 Bastidores: KX080R henceforth07001-KX080R henceforth09000 1993
Kawasaki KX 80 R 17/14 pulgadas 26 CV, 19 kw 1cil. KX080R 4 Bastidores: KX080R henceforth09001-KX080R henceforth11000 1994
Kawasaki KX 80 R 17/14 pulgadas 26 CV, 19 kw 1cil. KX080R 5 Bastidores: KX080R henceforth11001-KX080R-999999 1995
Kawasaki KX 80 R 17/14 pulgadas 26 CV, 19 kw 1cil. KX080R 6 Bastidores: KX080R henceforth18001-KX080R henceforth21000 1996
Kawasaki KX 80 R 17/14 pulgadas 26 CV, 19 kw 1cil. KX080R 7 Bastidores: KX080R henceforth21001-KX080R-999999 1997
Kawasaki KX 80 T 19/16 pulgadas 26 CV, 19 kw 1cil. KX080T 3 Bastidores: KX080T henceforth05001-KX080T henceforth07000 1993
Kawasaki KX 80 T 19/16 pulgadas 26 CV, 19 kw 1cil. KX080T 4 Bastidores: KX080T henceforth07001-KX080T henceforth09000 1994
Kawasaki KX 80 T 19/16 pulgadas 26 CV, 19 kw 1cil. KX080T 5 Bastidores: KX080T henceforth90001-KX080T-999999 1995
Kawasaki KX 80 T 19/16 pulgadas 26 CV, 19 kw 1cil. KX080T 6 Bastidores: KX080T henceforth10001-KX080T henceforth11000 1996
Kawasaki KX 80 W 17/14 pulgadas 27 CV, 20 kw 1cil. KX080W 1 Bastidores: KX080WWA henceforth00001-KX080WWA henceforth06000 1998
Kawasaki KX 80 W 17/14 pulgadas 27 CV, 20 kw 1cil. KX080W 2 Bastidores: KX080WWA henceforth06001-KX080WWA-999999 1999
Kawasaki KX 80 W 17/14 pulgadas 27 CV, 20 kw 1cil. KX080W 3 Bastidores: KX080WWA henceforth13001-KX080WWA-999999 2000
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 1 Bastidores: KX085AAA henceforth01001-KX085AAA henceforth07000 2001
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 2 Bastidores: KX085AAA henceforth07001-- 2002
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 3 Bastidores: KX085AAA henceforth15001-KX085AAA henceforth21000 2003
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 4 Bastidores: KX085AAA henceforth21001-- 2004
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 5 Bastidores: KX085AAA henceforth26001-KX085AAA henceforth31000 2005
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 6F Bastidores: KX085AAA henceforth31001-KX085AAA henceforth36000 2006
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 7F Bastidores: KX085AAA henceforth36001-KX085AAA henceforth40000 2007
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 8F Bastidores: KX085AAA henceforth40001-KX085AAA henceforth45000 2008
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA 9F Bastidores: KX085AAA henceforth45001-- 2009
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA AF Bastidores: KX085AAA henceforth49001-KX085AAA henceforth51000 2010
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA BF Bastidores: KX085AAA henceforth51001-KX085AAA henceforth55000 2011
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA CF Bastidores: KX085AAA henceforth55001-KX085AAA henceforth58000 2012
Kawasaki KX 85 A 17/14 pulgadas 28,5 CV, 21 kw 1cil. KX085AAA DF Bastidores: KX085AAA henceforth58001-- 2013
Kawasaki KX 85 B 19/16 pulgadas 1cil. KX085BBA DF Bastidores: KX085BBA henceforth35001-- 2013
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA 7F Bastidores: KX085BBA henceforth18001-KX085BBA henceforth20000 2007
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA 8F Bastidores: KX085BBA henceforth20001-KX085BBA henceforth25000 2008
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA 9F Bastidores: KX085BBA henceforth25001-- 2009
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA AF Bastidores: KX085BBA henceforth28001-KX085BBA henceforth30000 2010
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA BF Bastidores: KX085BBA henceforth30001-KX085BBA henceforth33000 2011
Kawasaki KX 85 B 19/16 pulgadas 28,5 CV, 21 kw 1cil. KX085BBA CF Bastidores: KX085BBA henceforth33001-KX085BBA henceforth35000 2012
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA EF Bastidores: KX085CCA henceforth00001-KX085CCA henceforth04000 2014
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA FF Bastidores: KX085CCA henceforth04001-KX085CCA henceforth07000 2015
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA GF Bastidores: KX085CCA henceforth07001-KX085CCA henceforth09500 2016
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA HF Bastidores: KX085CCA henceforth09501-KX085CCA henceforth12000 2017
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA JF Bastidores: KX085CCA henceforth12001-- 2018
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA KF Bastidores: KX085CCA henceforth15001-KX085CCA henceforth18000 2019
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA LF Bastidores: KX085CCA henceforth18001-KX085CCA-999999 2020
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA MFNN Bastidores: KX085CCA henceforth20001-KX085CCA-999999 2021
Kawasaki KX 85 I C 17/14 pulgadas 1cil. KX085CCA NFNN Bastidores: KX085CCA henceforth23001-KX085CCA henceforth26000 2022
Kawasaki KX 85 I C 17/14 Zoll 1cil. KX085CCA NSNN Bastidores: KX085CCA henceforth23001-KX085CCA-999999 2022
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA EF Bastidores: KX085DDA henceforth00001-KX085DDA henceforth03000 2014
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA FF Bastidores: KX085DDA henceforth03001-KX085DDA henceforth05000 2015
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA GF Bastidores: KX085DDA henceforth05001-KX085DDA henceforth07000 2016
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA HF Bastidores: KX085DDA henceforth07001-KX085DDA henceforth09000 2017
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA JF Bastidores: KX085DDA henceforth09001-KX085DDA henceforth11000 2018
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA KF Bastidores: KX085DDA henceforth11001-KX085DDA henceforth13000 2019
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA LF Bastidores: KX085DDA henceforth13001-KX085DDA-999999 2020
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA MFNN Bastidores: KX085DDA henceforth15001-KX085DDA-999999 2021
Kawasaki KX 85 II D 19/16 pulgadas 1cil. KX085DDA MFNN Bastidores: KX085DDA henceforth17001-KX085DDA henceforth19000 2022
Kawasaki KX 85 II D 19/16 Zoll 1cil. KX085DDA NSNN Bastidores: KX085DDA henceforth17001-KX085DDA henceforth19000 2022
Kawasaki KX 85 II D 19/16 Zoll 1cil. KX085DDA NSNN Bastidores: KX085DDA henceforth17001-KX085DDA-999999 2022
