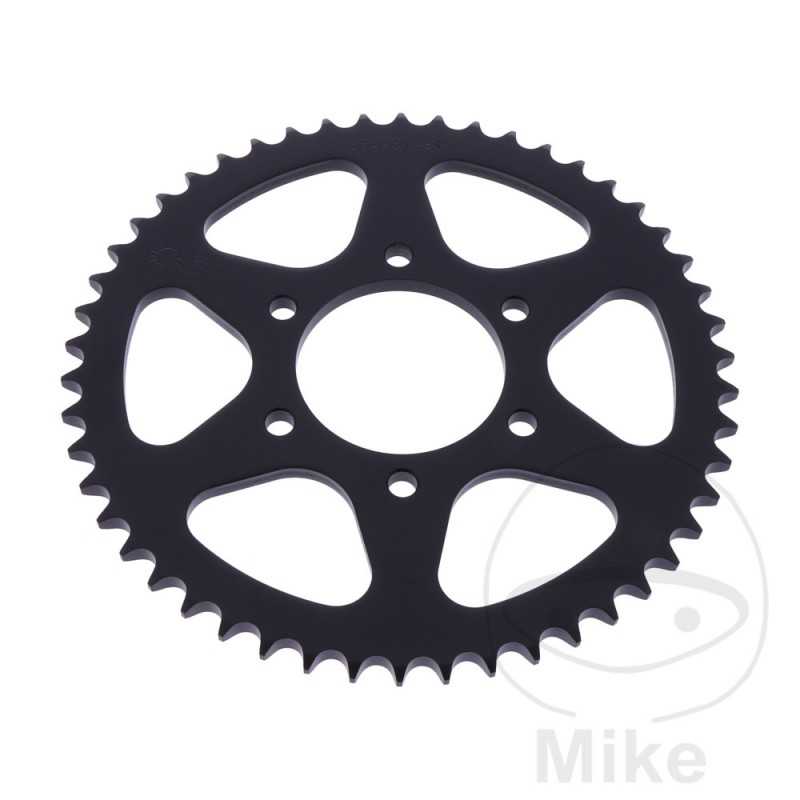

JT SPROCKETS Transmission plate crown 50T P-428 Ø064 MM Ø084 727.00.64

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 428
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 84 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 50
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kreidler Enduro 125 DT 11,5 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2008
Kreidler Enduro 125 DT 80 Km/h 7,7 CV, 5,7 kw 1cil. - Bastidores: --- 2007-2008
Kreidler Supermoto 125 DT 11,5 CV, 8,4 kw 1cil. KR001Q Bastidores: --- 2007-2008
Kreidler Supermoto 125 DT 80 Km/h 7,7 CV, 5,7 kw 1cil. KR001Q Bastidores: --- 2007-2008
Suzuki DR 125 S 10 CV, 7,4 kw 1cil. SF42A Z Bastidores: SF42A-100001-- 1982-1984
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43A F Bastidores: SF43A-100001-SF43A-100655 1985
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43A H Bastidores: SF43A-100656-SF43A-101005 1986
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43A J Bastidores: SF43A-101006-- 1987-1994
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43B F Bastidores: SF43B-100001-SF43B-103041 1985
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43B H Bastidores: SF43B-103042-SF43B-104349 1986
Suzuki DR 125 S 12,5 CV, 9 kw 1cil. SF43B J Bastidores: SF43B-104350-- 1987-1994
Suzuki DR 125 SE 12,1 CV, 9 kw 1cil. SF44A S Bastidores: SF44A-101539-SF44A-102278 1995
Suzuki DR 125 SE 12,1 CV, 9 kw 1cil. SF44A T Bastidores: SF44A-102279-SF44A-104704 1996
Suzuki DR 125 SE, SEU 12,1/11.8 CV, 8,9/8,7 kw 1cil. SF44A V Bastidores: SF44A-104705-- 1997
Suzuki DR 125 SE, SEU 12,1/11.8 CV, 8,9/8,7 kw 1cil. SF44A W Bastidores: SF44A henceforth00500001-SF44A henceforth00502880 1998
Suzuki DR 125 SE, SEU 12,1/11.8 CV, 8,9/8,7 kw 1cil. SF44A X Bastidores: SF44A henceforth00502881-- 1999-2000
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 K Bastidores: TS125-58493-TS125-74801 1973
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 L Bastidores: TS125-74802-TS125-98282 1974
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 M Bastidores: TS125-98283-TS125-116375 1975
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS125 A Bastidores: TS125-116376-TS125-147378 1976
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS125 B Bastidores: TS125-147379-- 1977
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS1252 C Bastidores: TS1252-100001-TS1252-123870 1978
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS1252 C2 Bastidores: TS1252-123871-- 1978
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 N Bastidores: TS1252-300032-TS1252-307474 1979
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 T Bastidores: TS1252-307475-TS1252-329768 1980
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 X Bastidores: TS1252-329769-- 1981
