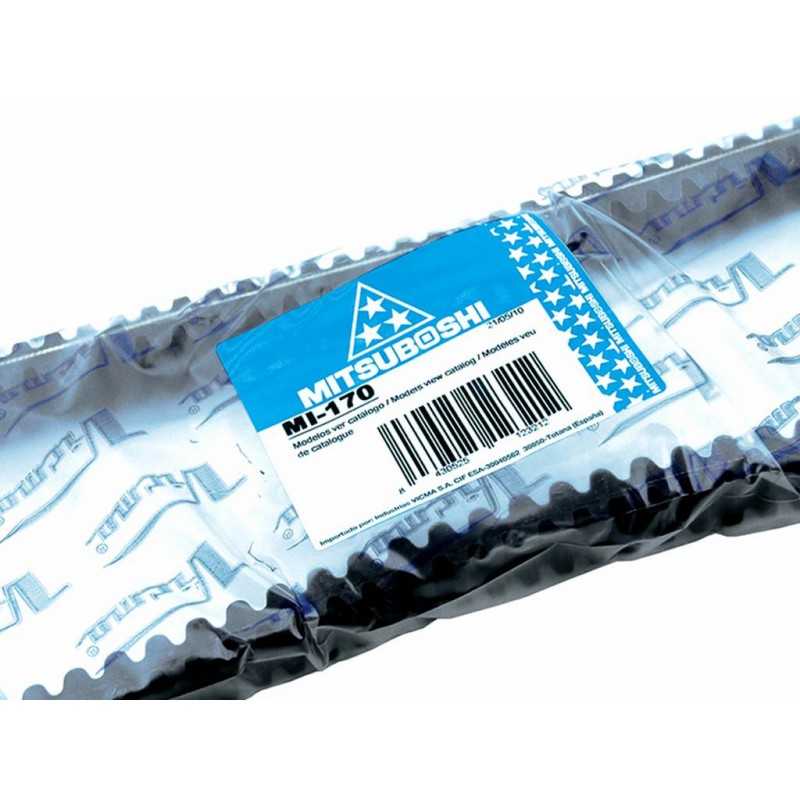

MITSUBOSHI BELT, DRIVE, TRANSMISSION MI035

MITSUBOSHI Belting, Ltd. "Belts that transmit power" is the motto of this Japanese colossus, a producer of belts since 1919, faithfully committed to their development.

Your product is positioned at the highest range, whether they are traditional, reinforced or double toothed belts.

Reliability and quality make manufacturers such as Yamaha, Suzuki and Piaggio choose Mitsuboshi as their original equipment supplier.

The traditional trapezoidal belt and the double-toothed belt are made of thread and rubber, reinforced with an ARAMID FIBER insert.

The fiber is mixed with the rubber, along the length of the belt, to contribute to a correct transmission of power and at the same time increase resistance to overheating and abrasion.

The serration reduces the stress caused by tensile flexing and heat build-up. The lateral cut allows an excellent seating of the belt on the transmission pulley.

The braiding is particularly resistant to eventual loads at certain points of the belt. Its interlocking reinforcement on the inside and outside of the belt increases the traction stability of the vehicle.

Thanks to an optimal contact surface, and unprecedented adhesion, Mitsuboshi belts guarantee power transmission efficiency that translates into ACCELERATION, RESPONSE and SILENCE.
LENGTH (MM): 724
WIDTH (MM): 17.8
HEIGHT (MM): 8
ANGLE ( ° ): 30
OEM REFERENCES: 001087842
23100KCX90000107842
23100KXCX900
289432
431190
COMPOSITION: POLYESTER
STRAP QUALITY: STANDARD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH CAGIVA CITY 50 50 1991-1997
COMPATIBLE WITH GILERA EASY MOVING 50 50 1991-2011
COMPATIBLE WITH KYMCO K12 50 50 1995-2000
COMPATIBLE WITH KYMCO KB 50 50 1995-2000
COMPATIBLE WITH PIAGGIO SFERA 50 (C010) 50 1995-1997
COMPATIBLE WITH PIAGGIO SFERA 50 (NSL1T) 50 1991-1993
COMPATIBLE WITH PIAGGIO SFERA 50 (SM51T) 50 1994
COMPATIBLE WITH PIAGGIO ZIP 50 2T (C25E) 50 2008-2013
COMPATIBLE WITH PIAGGIO ZIP 50 2T (SSL1T) 50 1992-1994
COMPATIBLE WITH PIAGGIO ZIP 50 2T 50 2014-2018
COMPATIBLE WITH PIAGGIO ZIP 50 2T BIMODALE (BMZ1T) 50 1994-1997
COMPATIBLE WITH PIAGGIO ZIP 50 2T DD (SSP2T) 50 1995-1996
COMPATIBLE WITH PIAGGIO ZIP 50 2T DT (SSP2T) 50 1995-1996
COMPATIBLE WITH PIAGGIO ZIP 50 2T E1 (C250) 50 2000-2002
COMPATIBLE WITH PIAGGIO ZIP 50 2T E2 (C250) 50 2000-2002
COMPATIBLE WITH PIAGGIO ZIP 50 2T FAST RAIDER (SSP1T) 50 1993-1994
COMPATIBLE WITH PIAGGIO ZIP 50 2T FAST RAIDER RST (C070) 50 1996-1997
COMPATIBLE WITH PIAGGIO ZIP 50 2T RST (C060) 50 1996-1999
COMPATIBLE WITH PIAGGIO ZIP 50 2T SP E1 (C110) 50 1996-2000
COMPATIBLE WITH PIAGGIO ZIP 50 2T SP E1 (C250) 50 2001-2005
COMPATIBLE WITH PIAGGIO ZIP 50 2T SP E2 (C250) 50 2006-2013
COMPATIBLE WITH VESPA VESPA ET2 CARBURETOR 50 1997-1999
