JT SPROCKETS Transmission plate crown 42T P-428 Ø054 MM Ø070 727.84.27

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

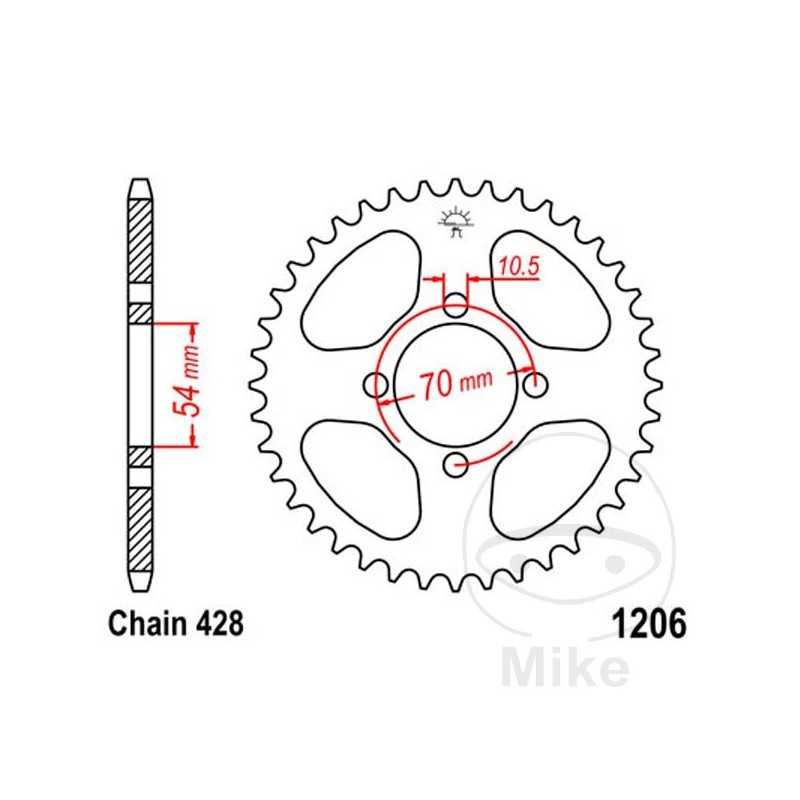

DIVISION: 428
INSIDE DIAMETER: 54MM
CIRCLE SIZE: 70 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 42
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 125 R 13,6 CV, 10 KW 1CIL. JC34A 4 BASTIDORES: MLH JC34A-45000001-MLH JC34A-45099999 2004
HONDA CBR 125 R 13,6 CV, 10 KW 1CIL. JC34A 5 BASTIDORES: MLH JC34A 555100001-MLH JC34A-555199999 2005
HONDA CBR 125 RS REPSOL 13,6 CV, 10 KW 1CIL. JC34A 5 BASTIDORES: MLH JC34A-555100001-MLH JC34A-555199999 2005
HONDA CBR 125 RS REPSOL 13,6 CV, 10 KW 1CIL. JC34A 6 BASTIDORES: MLH JC34A-65200001-MLH JC34A-65299999 2006-2007
HONDA CBR 125 RW 13,6 CV, 10 KW 1CIL. JC34A 5 BASTIDORES: MLH JC34A-555100001-MLH JC34A-555199999 2005
HONDA CBR 125 RW 13,6 CV, 10 KW 1CIL. JC34A 6 BASTIDORES: MLH JC34A-65200001-MLH JC34A-65299999 2006
HONDA CBR 125 RW 13,6 CV, 10 KW 1CIL. JC39A 7 BASTIDORES: MLH JC39A-75000001-MLH JC39A-75099999 2007-2008
HONDA CBR 125 RW 13,6 CV, 10 KW 1CIL. JC39A 9 BASTIDORES: MLH JC39A-95100001-MLH JC39A-95199999 2009
HONDA CBR 125 RW 13,6 CV, 10 KW 1CIL. JC39A A BASTIDORES: MLH JC39A-A5200001-- 2010
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC39B 7 BASTIDORES: MLH JC39B-75000001-MLH JC39B-75099999 2007-2008
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC39B 9 BASTIDORES: MLH JC39B-95100001-MLH JC39B-95199999 2009
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC39B A BASTIDORES: MLH JC39B-A5200001-- 2010
