JT SPROCKETS Transmission plate crown 41T P-530 Ø092 MM Ø116 727.46.08

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

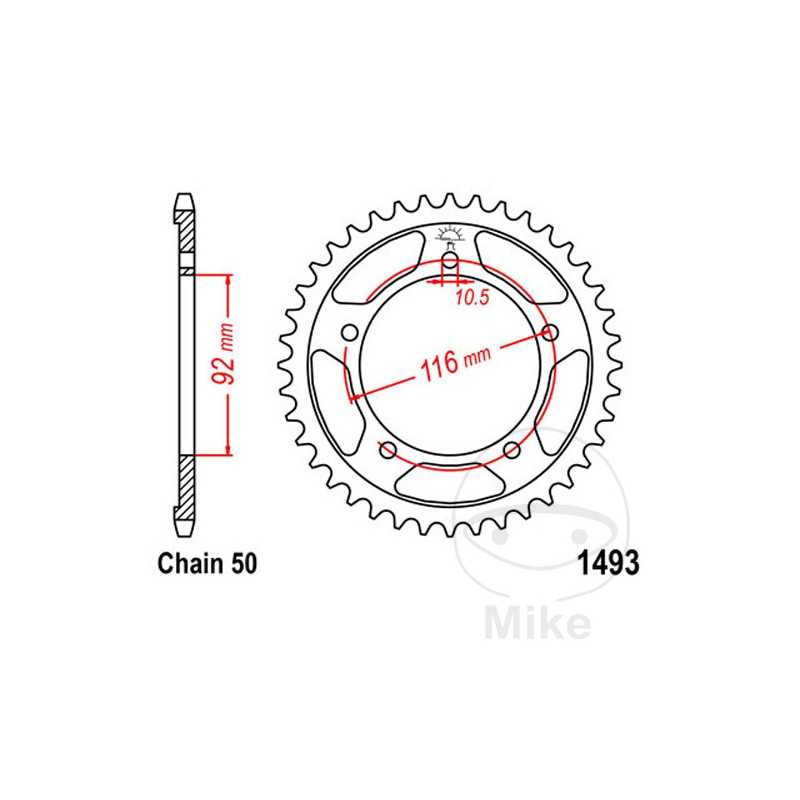

DIVISION: 530
INSIDE DIAMETER: 92MM
CIRCLE SIZE: 116 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI ZZR 1400 B ABS 190 CV, 140 KW 4CIL. ZXT40ABA 6F BASTIDORES: ZXT40ABA henceforth00001-ZXT40ABA henceforth15000 2006
KAWASAKI ZZR 1400 B ABS 190 CV, 140 KW 4CIL. ZXT40ABA 7F BASTIDORES: ZXT40ABA henceforth15001-ZXT40ABA-999999 2007
KAWASAKI ZZR 1400 B ABS 98 CV, 72 KW 4CIL. ZXT40ABA 6F BASTIDORES: ZXT40ABA henceforth00001-ZXT40ABA henceforth15000 2006
KAWASAKI ZZR 1400 B ABS 98 CV, 72 KW 4CIL. ZXT40ABA 7F BASTIDORES: ZXT40ABA henceforth15001-ZXT40ABA-999999 2007
KAWASAKI ZZR 1400 D ABS 193 CV,142 KW 4CIL. ZXT40CDA 8F BASTIDORES: ZXT40CDA henceforth00001-ZXT40CDA henceforth11000 2008
KAWASAKI ZZR 1400 D ABS 193 CV,142 KW 4CIL. ZXT40CDA 9F BASTIDORES: ZXT40CDA henceforth11001-ZXT40CDA henceforth20000 2009
KAWASAKI ZZR 1400 D ABS 193 CV,142 KW 4CIL. ZXT40CDA AF BASTIDORES: ZXT40CDA henceforth20001-ZXT40CDA henceforth26000 2010
KAWASAKI ZZR 1400 D ABS 193 CV,142 KW 4CIL. ZXT40CDA BF BASTIDORES: ZXT40CDA henceforth26001-ZXT40CDA-999999 2011
KAWASAKI ZZR 1400 D ABS 98 CV, 72 KW 4CIL. ZXT40CDA 8F BASTIDORES: ZXT40CDA henceforth00001-ZXT40CDA henceforth11000 2008
KAWASAKI ZZR 1400 D ABS 98 CV, 72 KW 4CIL. ZXT40CDA 9F BASTIDORES: ZXT40CDA henceforth11001-ZXT40CDA henceforth20000 2009
KAWASAKI ZZR 1400 D ABS 98 CV, 72 KW 4CIL. ZXT40CDA AF BASTIDORES: ZXT40CDA henceforth20001-ZXT40CDA henceforth26000 2010
KAWASAKI ZZR 1400 D ABS 98 CV, 72 KW 4CIL. ZXT40CDA BF BASTIDORES: ZXT40CDA henceforth26001-ZXT40CDA-999999 2011
KAWASAKI ZZR 1400 F ABS 200 CV, 147 KW 4CIL. ZXT40EFA CF BASTIDORES: ZXT40EFA henceforth00001-ZXT40EFA henceforth09000 2012
KAWASAKI ZZR 1400 F ABS 200 CV, 147 KW 4CIL. ZXT40EFA DF BASTIDORES: ZXT40EFA henceforth09001-ZXT40EFA henceforth14000 2013
KAWASAKI ZZR 1400 F ABS 200 CV, 147 KW 4CIL. ZXT40EFA EF BASTIDORES: ZXT40EFA henceforth14001-ZXT40EFA-999999 2014
KAWASAKI ZZR 1400 F ABS 200 CV, 147 KW 4CIL. ZXT40EFA FF BASTIDORES: ZXT40EFA henceforth19001-ZXT40EFA-999999 2015
KAWASAKI ZZR 1400 F ABS 98 CV, 72 KW 4CIL. ZXT40EFA CF BASTIDORES: ZXT40EFA henceforth00001-ZXT40EFA henceforth09000 2012
KAWASAKI ZZR 1400 F ABS 98 CV, 72 KW 4CIL. ZXT40EFA DF BASTIDORES: ZXT40EFA henceforth09001-ZXT40EFA henceforth14000 2013
KAWASAKI ZZR 1400 F ABS 98 CV, 72 KW 4CIL. ZXT40EFA EF BASTIDORES: ZXT40EFA henceforth14001-ZXT40EFA-999999 2014
KAWASAKI ZZR 1400 F ABS 98 CV, 72 KW 4CIL. ZXT40EFA FF BASTIDORES: ZXT40EFA henceforth19001-ZXT40EFA-999999 2015
KAWASAKI ZZR 1400 F PERFORMANCE SPORT ABS 200 CV, 147 KW 4CIL. ZXT40EFA EFB BASTIDORES: ZXT40EFA henceforth14001-ZXT40EFA-999999 2014
KAWASAKI ZZR 1400 F PERFORMANCE SPORT ABS 200 CV, 147 KW 4CIL. ZXT40EFA FFA BASTIDORES: ZXT40EFA henceforth19001-ZXT40EFA-999999 2015
KAWASAKI ZZR 1400 F PERFORMANCE SPORT ABS 98 CV, 72 KW 4CIL. ZXT40EFA EFB BASTIDORES: ZXT40EFA henceforth14001-ZXT40EFA-999999 2014
KAWASAKI ZZR 1400 F PERFORMANCE SPORT ABS 98 CV, 72 KW 4CIL. ZXT40EFA FFA BASTIDORES: ZXT40EFA henceforth19001-ZXT40EFA-999999 2015
KAWASAKI ZZR 1400 F SPECIAL EDITION ABS 200 CV, 147 KW 4CIL. ZXT40EFA DFA BASTIDORES: ZXT40EFA henceforth09001-ZXT40EFA henceforth14000 2013
KAWASAKI ZZR 1400 F SPECIAL EDITION ABS 98 CV, 72 KW 4CIL. ZXT40EFA DFA BASTIDORES: ZXT40EFA henceforth09001-ZXT40EFA henceforth14000 2013
KAWASAKI ZZR 1400 H ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HHA GF BASTIDORES: ZXT40HHA henceforth00001-ZXT40HHA henceforth04000 2016
KAWASAKI ZZR 1400 H ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HHA HF BASTIDORES: ZXT40HHA henceforth04001-ZXT40HHA henceforth07000 2017
KAWASAKI ZZR 1400 H ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HHA JF BASTIDORES: ZXT40HHA henceforth07001-ZXT40HHA henceforth09000 2018
KAWASAKI ZZR 1400 H ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HHA KF BASTIDORES: ZXT40HHA henceforth09001-ZXT40HHA henceforth11000 2019
KAWASAKI ZZR 1400 H ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HHA LF BASTIDORES: ZXT40HHA henceforth11001-ZXT40HHA-999999 2020
KAWASAKI ZZR 1400 J PERFORMANCE SPORT ABS 200 CV,147 KW 4CIL. ZXT40HJA KF BASTIDORES: ZXT40HJA henceforth09001-ZXT40HJA henceforth11000 2019
KAWASAKI ZZR 1400 J PERFORMANCE SPORT ABS 200 CV,147 KW 4CIL. ZXT40HJA LF BASTIDORES: ZXT40HJA henceforth11001-ZXT40HJA-999999 2020
KAWASAKI ZZR 1400 J PERFORMANCE SPORT ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HJA GF BASTIDORES: ZXT40HJA henceforth00001-ZXT40HJA henceforth04000 2016
KAWASAKI ZZR 1400 J PERFORMANCE SPORT ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HJA HF BASTIDORES: ZXT40HJA henceforth04001-ZXT40HJA henceforth07000 2017
KAWASAKI ZZR 1400 J PERFORMANCE SPORT ABS 200/98 CV, 147/72 KW 4CIL. ZXT40HJA JF BASTIDORES: ZXT40HJA henceforth07001-ZXT40HJA henceforth09000 2018
