JT SPROCKETS Transmission plate crown 45T P-525 Ø145 MM Ø165 727.37.25

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

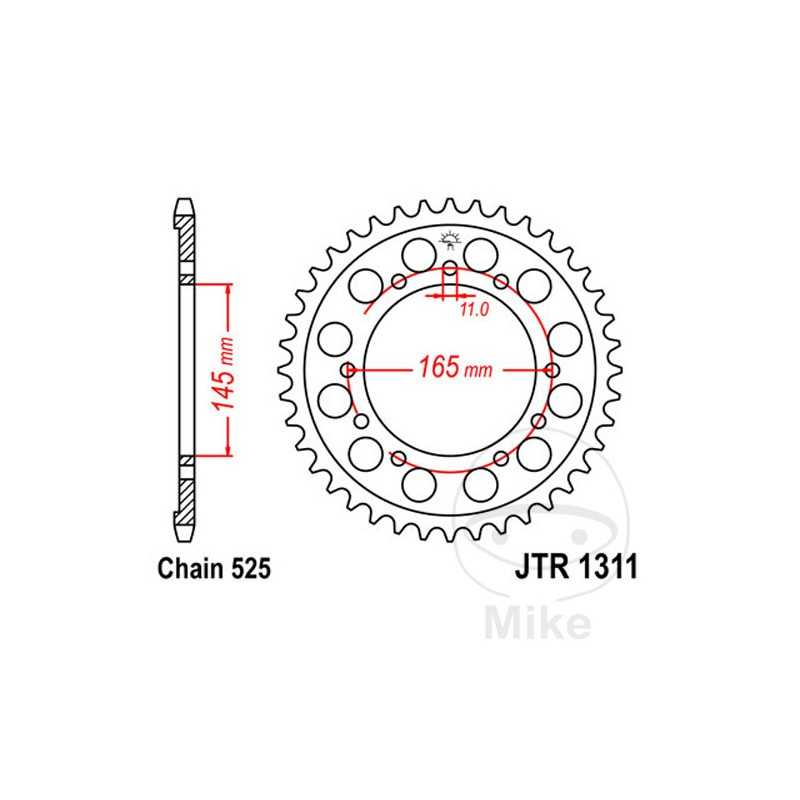

DIVISION: 525
INSIDE DIAMETER: 145MM
CIRCLE SIZE: 165 MM
HOLE: 11MM
HOLES QUANTITY: 9
SCREW TYPE: FLAT HEAD
QTY TEETH: 45
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NT 400 Bros 37 CV, 27 kw 2cil. NC25 J Bastidores: NC25-1000001-NC25-1008753 1988
Honda NT 400 Bros 37 CV, 27 kw 2cil. NC25 K Bastidores: NC25-1050001-NC25-1053898 1989
Honda NT 400 Bros 37 CV, 27 kw 2cil. NC25 L Bastidores: NC25-1100001-NC25-1101011 1990
Honda NT 650 GT Hawk/Bros 50 CV, 37 kw 2cil. RC312 J Bastidores: RC312-JM000001-RC312-JM000502 1988
Honda NT 650 GT Hawk/Bros 50 CV, 37 kw 2cil. RC312 K Bastidores: RC312-KM100002-- 1989
Honda NT 650 GT Hawk/Bros 50 CV, 37 kw 2cil. RC312 L Bastidores: RC312-LM200001-- 1990
Honda VFR 400 R 60 CV, 44 kw 4cil. NC24 H Bastidores: NC24-1000010-NC24-1017050 1987
