JT SPROCKETS Transmission plate crown 43T P-520 Ø120 MM Ø140 727.34.10

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

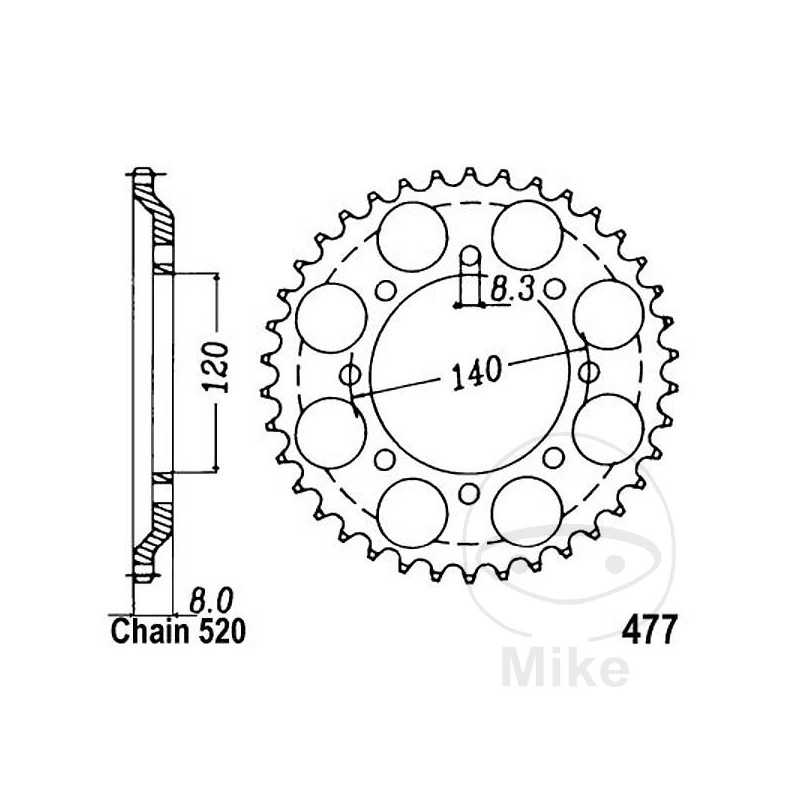

DIVISION: 520
INNER DIAMETER: 120MM
CIRCLE SIZE: 140 MM
HOLE: 8.5MM
HOLES QUANTITY: 8
SCREW TYPE: FLAT HEAD
QTY TEETH: 43
CROWN TYPE: STEEL
FILLING: 8MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KLR 600 A 42/27 CV, 31/20 KW 1CIL. KL600A 1 BASTIDORES: KL600A henceforth00001-- 1984
KAWASAKI KLR 600 B 44/27 CV, 32/20 KW 1CIL. KL600B 1 BASTIDORES: KL600B henceforth00001-KL600B henceforth11000 1985
KAWASAKI KLR 600 B 44/27 CV, 32/20 KW 1CIL. KL600B 2 BASTIDORES: KL600B henceforth11001-KL600B henceforth18500 1986-1987
KAWASAKI KLR 600 B 44/27 CV, 32/20 KW 1CIL. KL600B 4 BASTIDORES: KL600B henceforth18501-KL600B henceforth20000 1988
KAWASAKI KLR 600 B 44/27 CV, 32/20 KW 1CIL. KL600B 5 BASTIDORES: KL600B henceforth20001-KL600B henceforth22800 1989
