JT SPROCKETS Transmission plate crown 45T P-520 Ø080 MM Ø106 727.32.95

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

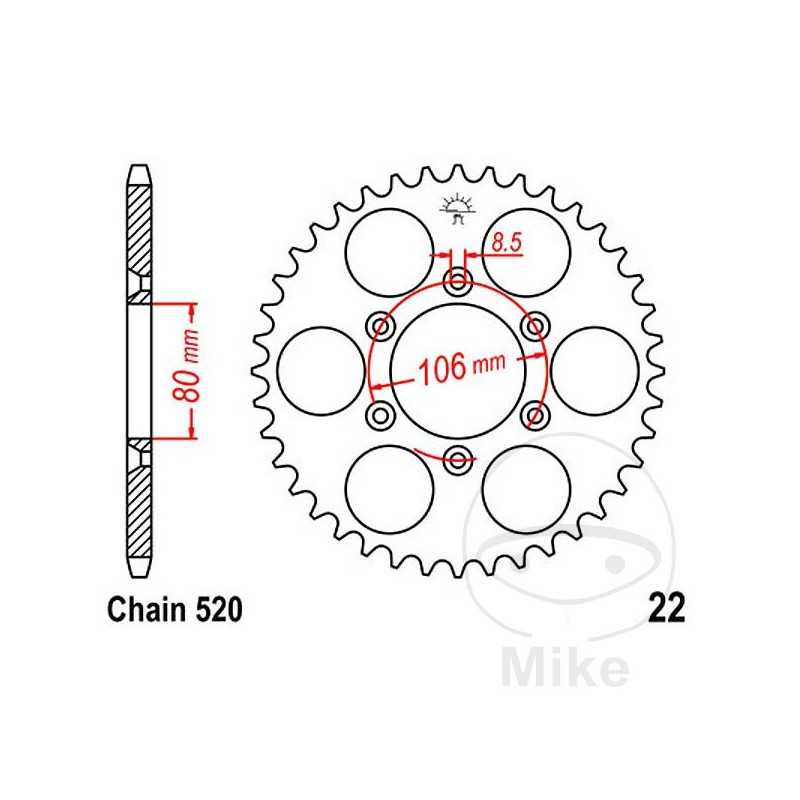

DIVISION: 520
INNER DIAMETER: 80MM
CIRCLE SIZE: 106 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 45
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia ETX 125 11 CV, 8 kw 1cil. PH Bastidores: --- 1998
Aprilia ETX 125 12,3 CV, 9 kw 1cil. PH Bastidores: --- 1999-2001
Aprilia ETX 125 15 CV, 11 kw 1cil. PH Bastidores: --- 1998
Aprilia MX 125 Supermoto 15 CV, 11 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia MX 125 Supermoto 24,5 CV, 18 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia RX 125 15 CV, 11 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 23 CV, 17 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 M 1cil. GF Bastidores: --- 1991
Aprilia RX 125 N 1cil. GF Bastidores: --- 1992
Aprilia RX 125 P 1cil. GF Bastidores: --- 1993
Aprilia SX 125 15 CV,11 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia SX 125 23 CV,17 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia Tuareg 125 K Rally 25 CV, 18,6 kw 1cil. GA Bastidores: --- 1989
Aprilia Tuareg 125 L Rally 25 CV, 18,6 kw 1cil. GB Bastidores: --- 1990
Aprilia Tuareg 125 M Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1991
Aprilia Tuareg 125 N Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1992
