JT SPROCKETS Transmission plate crown 44T P-520 Ø070 MM Ø110 727.29.09

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

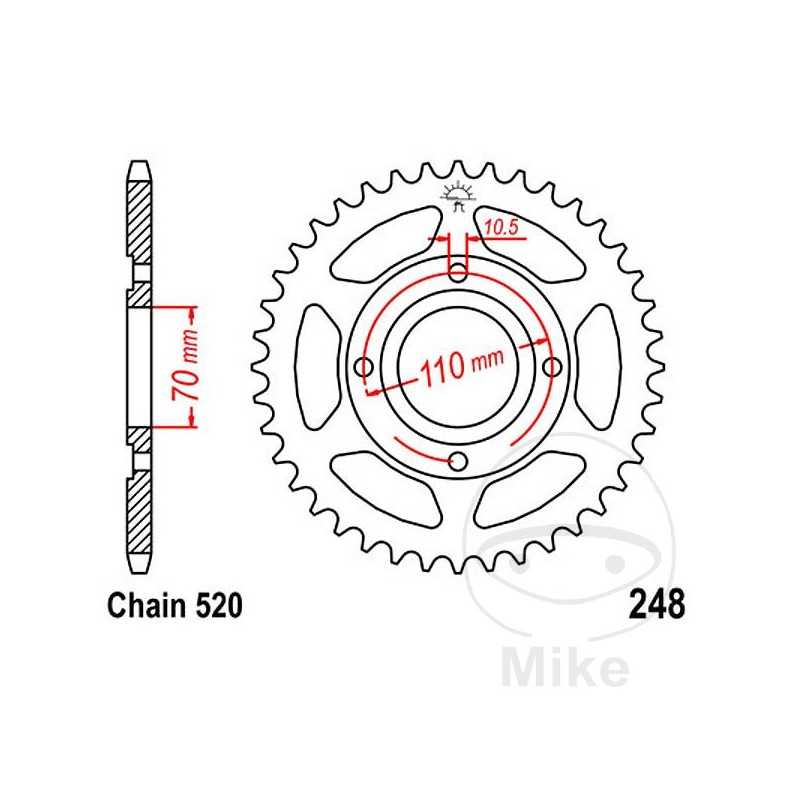

DIVISION: 520
INNER DIAMETER: 70MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 44
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 250 RS 17 CV, 13 KW 1CIL. MC02 A BASTIDORES: MC02-3000002-MC02-3001705 1980-1981
HONDA CB 250 RS 26 CV, 19 KW 1CIL. MC02 A BASTIDORES: MC02-2000024-MC02-2018570 1980-1981
HONDA CB 250 RSZ 17 CV, 13 KW 1CIL. MC02 C BASTIDORES: MC02-6000001-MC02-6099999 1982-1984
HONDA CB 250 RSZ 26 CV, 19 KW 1CIL. MC02 C BASTIDORES: MC02-4000001-MC02-4099999 1982-1984
