JT SPROCKETS Transmission plate crown 42T P-428 Ø080 MM Ø110 727.21.49

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

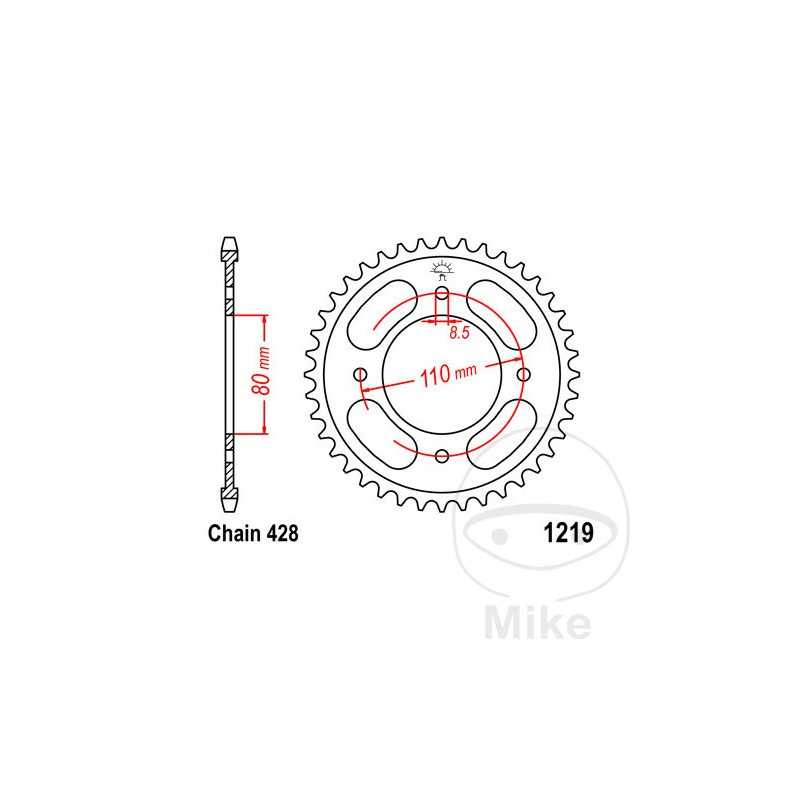

DIVISION: 428
INNER DIAMETER: 80MM
CIRCLE SIZE: 110 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 42
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A 9 BASTIDORES: ME4 JC40A henceforth98000001-ME4 JC40A henceforth98999999 2009
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A A BASTIDORES: ME4 JC40A-A8000001-ME4 JC40A-A8999999 2010
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A B BASTIDORES: ME4 JF40A-B8000001-ME4 JC40A-B8999999 2011-2012
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A D BASTIDORES: ME4 JC40A-D8000001-- 2013-2016
