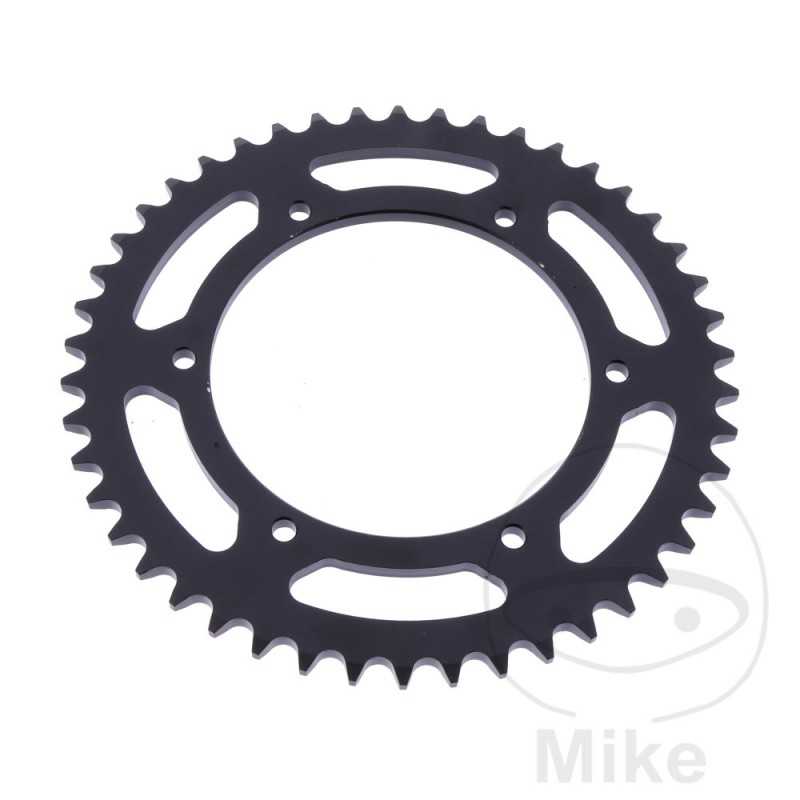

ESJOT Transmission plate crown 46T P-420 Ø108 MM Ø123 727.15.82

ESJOT - Antriebstechnik GmbH is a medium-sized company,

who has specialized in pine nuts for over 80 years.
DIVISION: 420
INSIDE DIAMETER: 108MM
CIRCLE SIZE: 123 MM
HOLE: 6.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 46
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 50 /Replica 5,4 CV, 4 kw 1cil. PL000 Bastidores: --- 2006-2010
Aprilia RS4 50 /Replica 5,4/2,7 CV, 4/2 kw 1cil. TK000 Bastidores: --- 2011-2013
Aprilia RS4 50 /Replica euro2 5,4/2,7 CV, 4/2 kw 1cil. TK000/VX000 Bastidores: --- 2014-2018
Aprilia RS4 50 euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2018-2019
Aprilia RS4 50 Euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2020-2021
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. - Bastidores: --- 2014-2018
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. PVG01 Bastidores: --- 2011-2012
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. SWA Bastidores: --- 2013
Aprilia SX 50 SM euro4 3 CV, 2,2 kw 1cil. KKB01 Bastidores: --- 2018-2019
Aprilia SX 50 SM Euro4 3 CV, 2,2 kw 1cil. KKB01 Bastidores: --- 2020-2021
Aprilia SX 50 SM Factory euro4 3 CV, 2,2 kw 1cil. KKB03 Bastidores: --- 2018-2019
Aprilia SX 50 SM Factory Euro4 3 CV, 2,2 kw 1cil. KKB03 Bastidores: --- 2020-2021
Aprilia SX 50 SM Limited Edition 4,9 CV, 3,6 kw 1cil. SWA00/PVG01 Bastidores: --- 2014-2016
Derbi GPR 50 Nude 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2007-2012
Derbi GPR 50 Nude 3,2 CV, 2,3 kw 1cil. GR1A1B Bastidores: VTHGR1A1B4H257767-- 2004-2006
Derbi GPR 50 Racing 1,5 CV, 1,1 kw 1cil. GR1A1A Bastidores: VTHGR1A1A4H250007-- 2005
Derbi GPR 50 Racing 1,5 CV, 1,1 kw 1cil. GR1D1A Bastidores: --- 2006
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2008-2009
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. GR1D1A Bastidores: --- 2007
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. RF1A1A Bastidores: --- 2010-2012
Derbi GPR 50 Racing 8,5 CV, 6,25 kw 1cil. PVXA00 Bastidores: --- 2013-2016
Derbi GPR 50 Replica Racing 2,4 CV, 1,75 kw 1cil. GPRRWB Bastidores: --- 2003-2004
Derbi Senda 50 R DRD X-Treme 2,9 CV, 2,1 kw 1cil. ZDPAB Bastidores: --- 2014-2017
Derbi Senda 50 SM DRD Evo HYP 2,9 CV, 2,1 kw 1cil. SR2D1C Bastidores: VTHSR2D1C8H403419-- 2008-2012
Derbi Senda 50 SM DRD Racing 1cil. PABB00 Bastidores: --- 2012-2017
Derbi Senda 50 SM DRD Racing 2,4 CV, 1,8 kw 1cil. PABB00 Bastidores: --- 2011
Derbi Senda 50 SM DRD X-Treme 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2012-2017
Derbi Senda 50 SM Limited 1cil. KKB04 Bastidores: --- 2018-2021
Derbi Senda 50 SM Limited Euro4 1cil. KKB04 Bastidores: --- 2022
Derbi Senda 50 SM Racing 1cil. KKB02 Bastidores: --- 2018-2021
Derbi Senda 50 SM Racing Euro4 1cil. KKB02 Bastidores: --- 2022
Derbi Senda 50 SM X-Treme 1cil. KKB00/KKE00 Bastidores: --- 2018-2021
Derbi Senda 50 SM X-Treme Euro4 1cil. KKB00/KKE00 Bastidores: --- 2022
Motorhispania RX 50 R 1cil. - Bastidores: --- 2009-2011
Motorhispania RX 50 Superracing 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2006-2007
Peugeot XR6 50 1,9 CV, 1,4 kw 1cil. VGA DR01E2 DR01 Bastidores: --- 2006-2007
Sachs MadAss 50 4-marchas 2,7 CV, 2 kw 1cil. 649003 649 Bastidores: --- 2004-2005
Sachs MadAss 50 automática 2,7 CV, 2 kw 1cil. 649004 649 Bastidores: --- 2005
