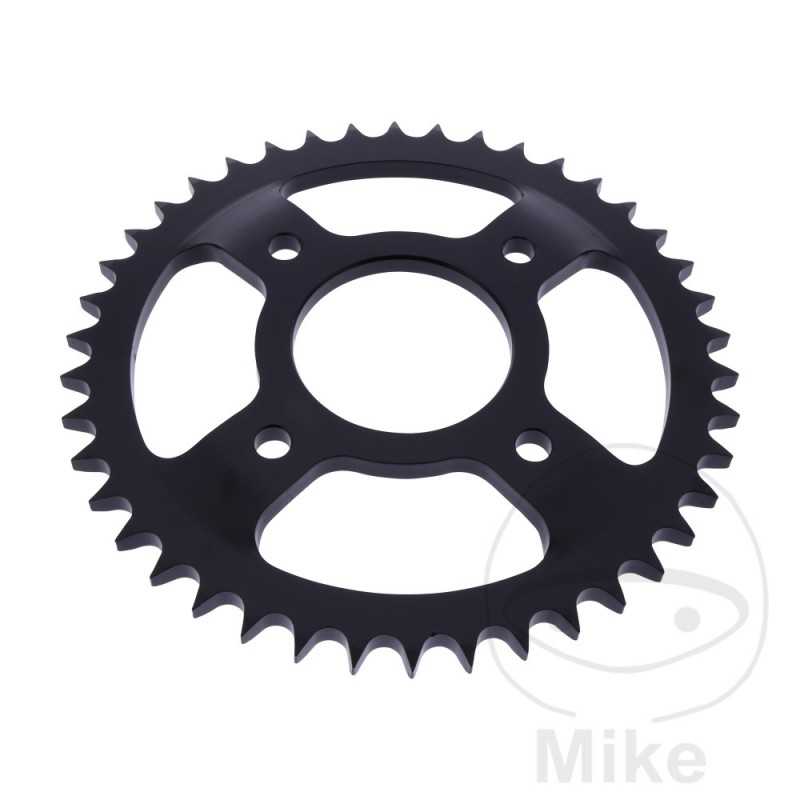

ESJOT Transmission plate crown 42T P-428 Ø056 MM Ø090 727.15.00

ESJOT - Antriebstechnik GmbH is a medium-sized company,

who has specialized in pine nuts for over 80 years.
DIVISION: 428
INSIDE DIAMETER: 56.5MM
CIRCLE SIZE: 90 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 42
CROWN TYPE: STEEL
FILLING: 11.75MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Mash Black Seven 125 ie CBS 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2019-2020
Mash Black Seven 125 ie CBS 12,2 CV, 9 kw 1cil. - Bastidores: --- 2017-2018
Mash Brown Edition 125 ie CBS 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2019-2020
Mash Cafe Racer 125 ie CBS 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2019-2020
Mash Cafe Racer 125 ie CBS 12,2 CV, 9 kw 1cil. - Bastidores: --- 2017-2018
Mash Cafe Racer 125 ie CBS Euro4 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2021
Mash Seventy Five 125 ie CBS 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2019-2020
Mash Seventy Five 125 ie CBS 12,2 CV, 9 kw 1cil. - Bastidores: --- 2017-2018
Mash Seventy Five 125 ie CBS Euro4 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2021
