JT SPROCKETS Transmission plate crown 44T P-525 Ø142 MM Ø164 727.12.24

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

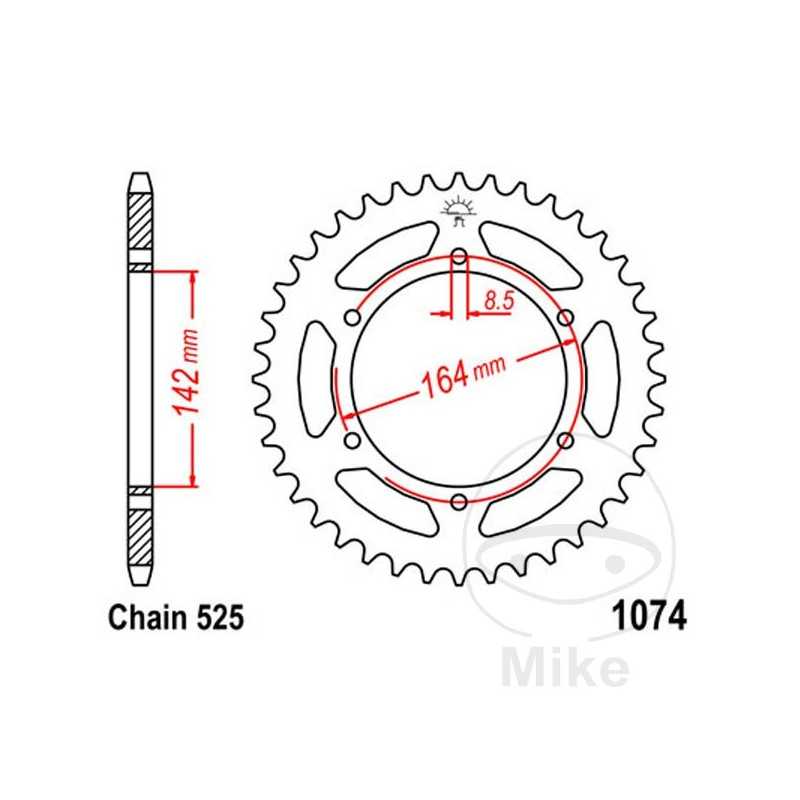

DIVISION: 525
INSIDE DIAMETER: 142MM
CIRCLE SIZE: 164 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 44
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HYOSUNG GT 650 N FI NAKED MIKUNI 81,6/34 CV, 60/25 KW 2CIL. KM4MP54A BASTIDORES: --- 2007-2008
HYOSUNG GT 650 N FI NAKED MIKUNI S&T VISION D 81,6/34 CV, 60/25 KW 2CIL. KM4MP58A BASTIDORES: --- 2009-2011
HYOSUNG GT 650 N FI NAKED U-CHANG S&T VERSION G 73,4/34 CV, 54/25 KW 2CIL. KM4MP58D BASTIDORES: --- 2009-2011
HYOSUNG GT 650 N NAKED 34 CV, 25 KW 2CIL. KM4MP51A BASTIDORES: --- 2004-2007
HYOSUNG GT 650 N NAKED 77,5 CV, 57 KW 2CIL. KM4MP51A BASTIDORES: --- 2004-2007
HYOSUNG GT 650 PI NAKED FI DELPHI 74,4/48 CV, 54,7/35 KW 2CIL. KM4MP61A BASTIDORES: --- 2012-2017
HYOSUNG GT 650 R FI SPORT MIKUNI S& VERSION F 81,6/34 CV, 60/25 KW 2CIL. KM4MP58C BASTIDORES: --- 2009-2011
HYOSUNG GT 650 R FI SPORT U-CHANG S& VERSION J 73,4/34 CV, 54/25 KW 2CIL. KM4MP58F BASTIDORES: --- 2009-2011
HYOSUNG GT 650 R SPORT 77,5/34 CV, 57/25 KW 2CIL. KM4MP51C BASTIDORES: --- 2005-2007
HYOSUNG GT 650 RI SPORT MIKUNI 81,6/34 CV, 60/25 KW 2CIL. KM4MP54C BASTIDORES: --- 2007-2008
HYOSUNG GT 650 RI SPORT VERSION K 74,4/48 CV, 54,7/35 KW 2CIL. KM4MP61D BASTIDORES: --- 2013-2017
HYOSUNG GT 650 S SPORT 77,5/34 CV, 57/25 KW 2CIL. KM4MP51B BASTIDORES: --- 2005-2007
