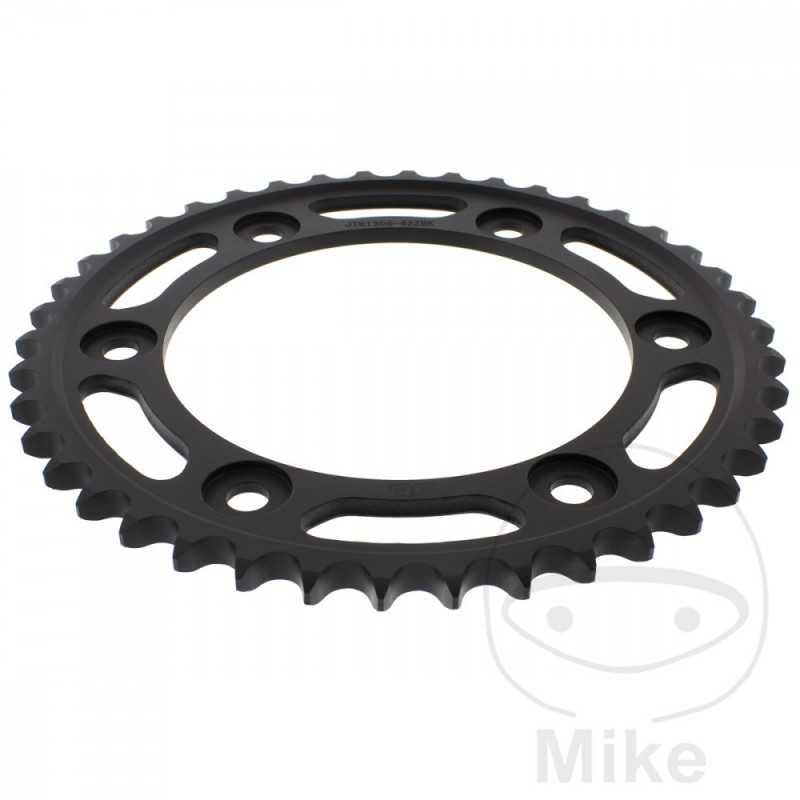

JT SPROCKETS Transmission plate crown 41T P-525 ALTN: 7274483 727.06.42

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 525
INSIDE DIAMETER: 134MM
CIRCLE SIZE: 160 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 1 BASTIDORES: JH2 PC35F-1M200001-JH2 PC35F-1M299999 2001
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 2 BASTIDORES: JH2 PC35F-2M300001-JH2 PC35F-2M399999 2002
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 3 BASTIDORES: JH2 PC35F-3M400001-JH2 PC35F-3M499999 2003
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 4 BASTIDORES: JH2 PC35F-4M500001-- 2004
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 5 BASTIDORES: JH2 PC35F-5M600001-JH2 PC35F-5M699999 2005
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 6 BASTIDORES: JH2 PC35F-6M700001-- 2006-2007
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 1 BASTIDORES: JH2 PC35D-1M200001-JH2 PC35D-1M299999 2001
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 2 BASTIDORES: JH2 PC35D-2M300001-JH2 PC35D-2M399999 2002
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 3 BASTIDORES: JH2 PC35D-3M400001-JH2 PC35D-3M499999 2003
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M250001-JH2 PC35H-1M299999 2001
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M310001-JH2 PC35H-2M319999 2002
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M200001-JH2 PC35H-1M249999 2001
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M300001-JH2 PC35H-2M309999 2002
HONDA CBR 600 RR 114 CV, 84 KW 4CIL. PC37B 3 BASTIDORES: JH2 PC37B-3M000001-JH2 PC37B-3M099999 2003
HONDA CBR 600 RR 114 CV, 84 KW 4CIL. PC37B 4 BASTIDORES: JH2 PC37B-4M100001-JH2 PC37B-4M199999 2004
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 3 BASTIDORES: JH2 PC37A-3M000001-JH2 PC37A-3M099999 2003
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 4 BASTIDORES: JH2 PC37A-4M100001-JH2 PC37A-4M199999 2004
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 5 BASTIDORES: JH2 PC37A-5M200001-JH2 PC37A-5M299999 2005
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37B 5 BASTIDORES: JH2 PC37B-5M200001-JH2 PC37B-5M299999 2005
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37B 6 BASTIDORES: JH2 PC37B-6M300001-- 2006
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40A 7 BASTIDORES: JH2 PC40A-7M000001-JH2 PC40A-7M099999 2007
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40A 8 BASTIDORES: JH2 PC40A-8M100001-JH2 PC40A-8M109999 2008
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C 9 BASTIDORES: JH2 PC40C-9K200001-JH2 PC40C-9K299999 2009
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C A BASTIDORES: JH2 PC40C-AK300001-JH2 PC40C-AK399999 2010
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C B BASTIDORES: JH2 PC40C-BK400001-- 2011
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C C BASTIDORES: JH2 PC40C-CK500001-- 2012
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C D BASTIDORES: JH2 PC40C-DK600001-JH2 PC40C-DK699999 2013-2016
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E 9 BASTIDORES: JH2 PC40E-9K200001-JH2 PC40E-9K201447 2009
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E A BASTIDORES: JH2 PC40E-AK300001-JH2 PC40E-AK399999 2010
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E B BASTIDORES: JH2 PC40E-BK400001-- 2011
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E C BASTIDORES: JH2 PC40E-CK500001-- 2012
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E D BASTIDORES: JH2 PC40E-DK600001-JH2 PC40E-DK699999 2013-2016
