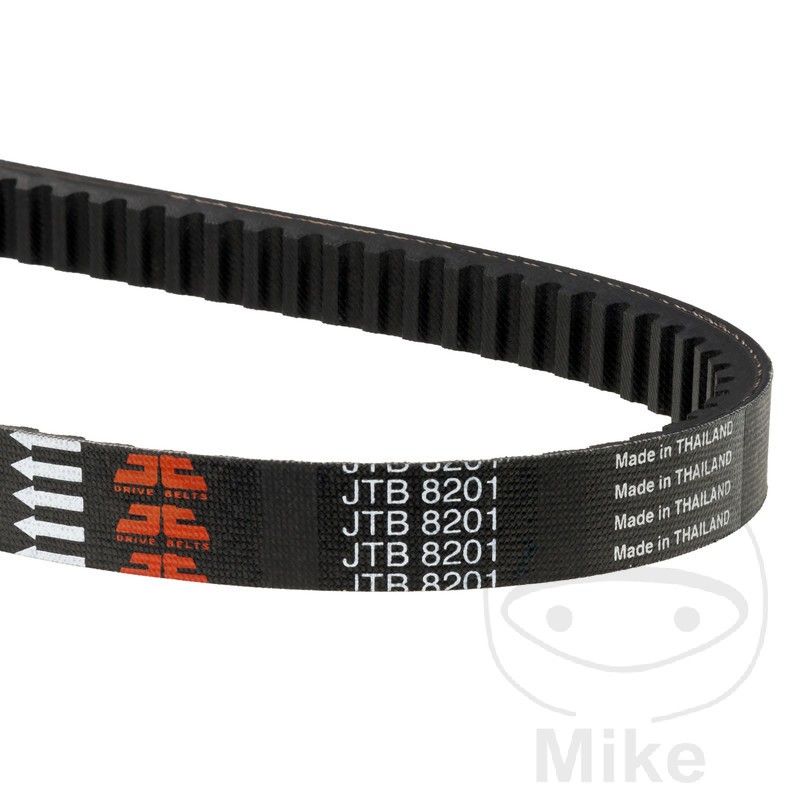

standard drive belt JTBELT 755.03.97

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Especially in the case of Piaggioscooters, special attention must be paid to the oil pump belt after the V-belt breaks.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Daelim Freewing 125 S2 Fi SQ125 S2 11,4 CV, 8,4 kw 1cil. SA4BL SA4 Bastidores: KMYSA4BLS7C300001-KMYSA4BLSCC309999 2008-2011
Daelim Freewing 125 S2 SQ125 S2 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2005
Daelim Freewing 125 S2 SQ125 S2 11,4 CV, 8,4 kw 1cil. SA4BL SA4 Bastidores: KMYSA4BLS4C000015-KMYSA4BLS7C009933 2007-2008
Daelim Freewing 125 S2 SQ125 S2 11,4 CV, 8,4 kw 1cil. SA4BL SA4 Bastidores: KMYSA4BLS5C000011-KMYSA4BLS7C010056 2006
Daelim NS 125 DT 12,2 CV, 9 kw 1cil. SG125FK Bastidores: KMYSG125FKW000001-KMYSG125FKW999999 1998
Daelim Otello 125 Fi Edition SL125EU S1 11,5 CV, 8,5 kw 1cil. SA7BL Bastidores: KMYSA7BLS7C000001-KMYSA7BLSCC099999 2013-2016
Daelim Otello 125 Fi SL125EU S1 11,5 CV, 8,5 kw 1cil. SA7BL Bastidores: KMYSA7BLS7C000001-KMYSA7BLSCC099999 2007-2016
Daelim Otello 125 Fi Sport SL125EU S1 11,5 CV, 8,5 kw 1cil. SA7BL Bastidores: KMYSA7BLS7C000001-KMYSA7BLSCC099999 2013-2015
Daelim Otello/NS 125 DD DLX DLX 12,2 CV, 9 kw 1cil. SG125F Bastidores: --- 2004-2005
Daelim Otello/NS 125 DD DLX DLX 12,2 CV, 9 kw 1cil. SG125F Bastidores: KMYSG125FK2410820-KMYSG125FK3413033 2002-2003
Daelim S1 125 Fi 11 CV, 8 kw 1cil. SA7BL Bastidores: KMYSA7BLS7C000001-KMYSA7BLSCC099999 2011-2016
Daelim S1 125 Fi 11,4 CV, 8,4 kw 1cil. SA7BL Bastidores: KMYSA7BLS7C000001-KMYSA7BLSCC099999 2007-2010
Daelim SL 125 History 11,3 CV, 8,3 kw 1cil. SA2BLS Bastidores: KMYSA2BLS2C000000-KMYSA2BLS3C001096 2003-2004
Daelim SL 125 History 12,2 CV, 9 kw 1cil. SA2BLS Bastidores: KMYSA2BLS2C000000-KMYSA2BLS3C001096 2001-2002
Daelim SN 125 Fi B-Bone 11,5 CV, 8,5 kw 1cil. SA8BL Bastidores: KMYSA8BLS9C000338-KMYSA8BLSGC001908 2012-2016
Daelim SQ 125 S2 11,4 CV, 8,4 kw 1cil. SA4BL Bastidores: KMYSA4BLS4C000398-KMYSA4BLS7C009933 2005-2008
Daelim SQ 125 S2 Fi 11,1 CV, 8,2 kw 1cil. SA4BL Bastidores: KMYSA4BLS7C300001-KMYSA4BLSCC309999 2008-2016
