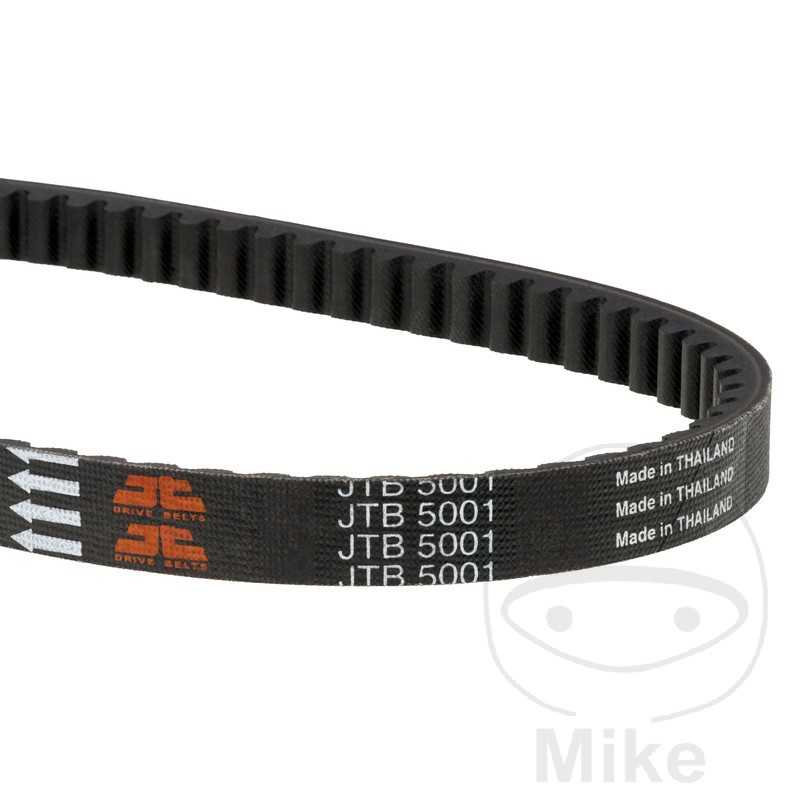

standard drive belt JTBELT 755.03.80

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Especially in the case of Piaggioscooters, special attention must be paid to the oil pump belt after the V-belt breaks.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
ATU METEORIT KB 50 EDITION 4,8 CV, 3,5 KW 1CIL. SE10CA KB BASTIDORES: --- 2002-2005
HERCULES SPLINTER 50 3 CV, 2,2 KW 1CIL. 427 FE053-DE BASTIDORES: --- 1995
KYMCO KB 50 4,8 CV, 3,5 KW 1CIL. SC10AR KB/SC10AS BASTIDORES: RFBSC10AR-- 1998-1999
KYMCO ZX 50 II FEVER 4,8 CV, 3,5 KW 1CIL. SC10AS SC10AS BASTIDORES: RFBSC10AS-- 2000-2004
KYMCO ZX 50 II FEVER 4,8 CV, 3,5 KW 1CIL. SC10AW BASTIDORES: RFBSC10AW-- 2005-2007
PEUGEOT ELYSEO 50 45 KM/H 4,2 CV, 3,1 KW 1CIL. VGA G1AAE G1A BASTIDORES: --- 2002-2003
PEUGEOT ELYSEO 50 50 KM/H 4,2 CV, 3,1 KW 1CIL. VGA G1AAK G1A BASTIDORES: --- 1998-2001
PEUGEOT ELYSTAR 50 ADVANTAGE 3,5 CV 2,6 KW 1CIL. VGA G1AAP BASTIDORES: --- 2006-2009
PEUGEOT ELYSTAR 50 TSDI SBC 4,6 CV, 3,4 KW 1CIL. VGA G1AAJ BASTIDORES: --- 2003-2007
PEUGEOT JET FORCE 50 C-TECH R-CUP 4,9 CV, 3,6 KW 1CIL. VGA A1AABA A1 BASTIDORES: --- 2007-2009
PEUGEOT JET FORCE 50 DARKSIDE 4,9 CV, 3,6 KW 1CIL. VGA A1AABA A1 BASTIDORES: --- 2008-2012
PEUGEOT LUDIX 50 2T PRO 3,9 CV, 2,9 KW 1CIL. - BASTIDORES: --- 2008-2011
PEUGEOT LUDIX 50 CLASSIC DOS PLAZAS 4,4 CV, 3,2 KW 1CIL. VGA L1AAEA BASTIDORES: --- 2006-2007
PEUGEOT LUDIX 50 CLASSIC MONOPLAZA 4,4 CV, 3,2 KW 1CIL. VGA L1AABM/EM BASTIDORES: --- 2004-2007
PEUGEOT LUDIX 50 ELEGANCE 4,4 CV, 3,2 KW 1CIL. VGA L1AABA/EA BASTIDORES: --- 2004-2007
PEUGEOT LUDIX 50 II ELEGANCE 3,9 CV, 2,9 KW 1CIL. VGA L1AAEA BASTIDORES: --- 2008-2012
PEUGEOT LUDIX 50 II LC BLASTER RS12 4,9 CV, 3,6 KW 1CIL. VGA L1ACFA BASTIDORES: --- 2008-2012
PEUGEOT LUDIX 50 II TREND 12 PULGADAS 3,9 CV, 2,9 KW 1CIL. VGA L1AAFA BASTIDORES: --- 2008-2012
PEUGEOT LUDIX 50 II TT ONE DOS PLAZAS 3,9 CV, 2,9 KW 1CIL. VGA L1AADA BASTIDORES: --- 2008-2012
PEUGEOT LUDIX 50 II TT ONE MONOPLAZA 3,9 CV, 2,9 KW 1CIL. VGA L1AADM BASTIDORES: --- 2008-2011
PEUGEOT LUDIX 50 ONE DOS PLAZAS 4,4 CV, 3,2 KW 1CIL. VGA L1AADA BASTIDORES: --- 2006-2007
PEUGEOT LUDIX 50 ONE MONOPLAZA 4,4 CV, 3,2 KW 1CIL. VGA L1AAAM/DM BASTIDORES: --- 2004-2007
PEUGEOT LUDIX 50 SNAKE 4,4 CV, 3,2 KW 1CIL. VGA L1AAACA/FA BASTIDORES: --- 2004-2007
PEUGEOT SPEEDAKE 50 3 CV, 2,2 KW 1CIL. VGA 427 FE053-DE BASTIDORES: --- 1995-1997
PEUGEOT SPEEDFIGHT 100 2 WRC 307 8,7 CV, 6,4 KW 1CIL. VGA S2ABL S2A BASTIDORES: --- 2005
PEUGEOT SPEEDFIGHT 50 2 AC 2T DT WRC 307 4,1 CV, 3 KW 1CIL. VGA S1BADA/GA S1B-DE BASTIDORES: --- 2005
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD IRON-X 4,6 CV, 3,4 KW 1CIL. VGA S1BBBA/BBCA S1 BASTIDORES: --- 2007
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD R-CUP 4,6 CV, 3,4 KW 1CIL. VGA S1BBBA/BBCA S1 BASTIDORES: --- 2007-2009
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD SILVER SPORT 5 CV, 3,7 KW 1CIL. VGA S1BBBA/BBCA S1B-DE BASTIDORES: --- 2005-2007
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD ULTIMATE EDITION 4,6 CV, 3,4 KW 1CIL. VGA S1BBBA/BBCA S1 BASTIDORES: --- 2008-2009
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD WRC 307 5 CV, 3,7 KW 1CIL. VGA S1BBBA/BBCA S1B-DE BASTIDORES: --- 2005
PEUGEOT SPEEDFIGHT 50 2 LC 2T DD X-RACE 5 CV, 3,7 KW 1CIL. VGA S1BBAA S1 BASTIDORES: --- 2003
PEUGEOT SPEEDFIGHT 50 3 LC 2T DD DARKSIDE 5,2 CV, 3,8 KW 1CIL. VGA F1ABAA F1 BASTIDORES: --- 2011-2015
PEUGEOT SPEEDFIGHT 50 3 LC 2T DD ICE BLADE 5,2 CV, 3,8 KW 1CIL. VGA F1ABAA F1 BASTIDORES: --- 2011-2015
PEUGEOT SPEEDFIGHT 50 3 LC 2T DD RS 5,2 CV, 3,8 KW 1CIL. VGA F1ABAA F1 BASTIDORES: --- 2010-2012
PEUGEOT SQUAB 50 3 CV, 2,2 KW 1CIL. VGA S1A03 BASTIDORES: --- 1996-1997
PEUGEOT TKR 50 4,2 CV, 3,1 KW 1CIL. VGA S1AADA/AAGA S1 BASTIDORES: --- 2005-2007
PEUGEOT TKR 50 FURIOUS 12 PULGADAS 4,2 CV, 3,1 KW 1CIL. VGA S1AADA/AAGA BASTIDORES: --- 2010-2011
PEUGEOT TKR 50 FURIOUS 4,1 CV, 3 KW 1CIL. VGA S1AADA/AAGA S1 BASTIDORES: --- 2005-2008
PEUGEOT TKR 50 FURIOUS 4,2 CV, 3,1 KW 1CIL. VGA S1AADA/AAGA BASTIDORES: --- 2009-2012
PEUGEOT TKR 50 METAL-X 4,1 CV, 3 KW 1CIL. VGA S1A0KF S1 BASTIDORES: --- 2002
PEUGEOT TKR 50 METAL-X 4,1 CV, 3 KW 1CIL. VGA S1AAAA S1 BASTIDORES: --- 2003
PEUGEOT TKR 50 WRC 307 4,1 CV, 3 KW 1CIL. VGA S1AADA/AAGA S1 BASTIDORES: --- 2005
PEUGEOT TREKKER 50 OFF ROAD 4,1 CV, 3 KW 1CIL. VGA S1A0KB S1A-DE BASTIDORES: --- 1998-2000
PEUGEOT TREKKER 50 ROAD 4,8 CV, 3,5 KW 1CIL. VGA S1A0KB S1A-DE BASTIDORES: --- 1998-2000
PEUGEOT VIVACITY 125 SIXTIES 7,8 CV, 5,7 KW 1CIL. VGA V2AEAA V2 BASTIDORES: --- 2011-2012
PEUGEOT VIVACITY 50 2 COMPACT 4,1 CV, 3 KW 1CIL. - S1C BASTIDORES: --- 2007
SACHS SPLINTER 50 3 CV, 2,2 KW 1CIL. 427 FE053-DE BASTIDORES: --- 1996-1997
SACHS SQUAB 50 5 CV, 3,7 KW 1CIL. S1A03 BASTIDORES: --- 1997
