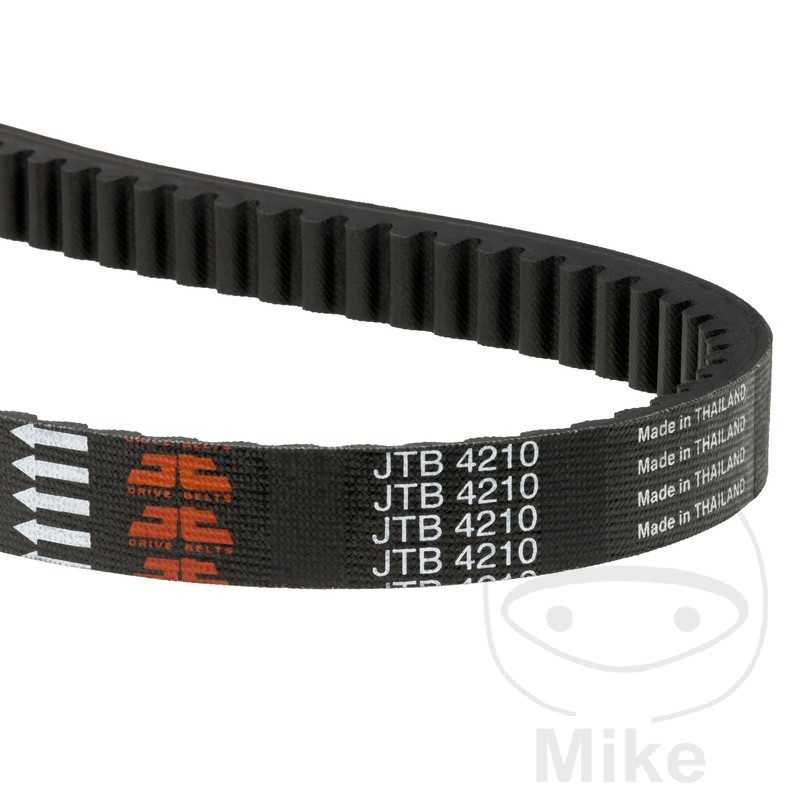

standard drive belt JTBELT 755.03.76

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Especially in the case of Piaggioscooters, special attention must be paid to the oil pump belt after the V-belt breaks.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Scarabeo 250 22 CV, 16 kw 1cil. TDB01 Bastidores: --- 2004-2006
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB000 Bastidores: --- 2004-2006
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB002 Bastidores: --- 2007-2008
Aprilia Sport City 125 Cube 12,2 CV, 9 kw 1cil. VBE00 Bastidores: --- 2009-2011
Aprilia Sport City 125 Cube 15 CV, 11 kw 1cil. VBM00 Bastidores: --- 2012
Derbi Rambla 125 15 CV, 11 kw 1cil. RA1A1A Bastidores: VTHRA1A1A8S001003-- 2008-2014
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 GT RST 15 CV, 11 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth1001001-- 2005-2008
Piaggio Beverly 125 ie 15 CV, 11 kw 1cil. M69100 Bastidores: ZAPM69100 henceforth0001001-- 2010-2016
Piaggio Beverly 125 RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 Tourer 15 CV, 11 kw 1cil. M28901 Bastidores: ZAPM28901 henceforth0001001-- 2009-2010
Piaggio Carnaby 125 15 CV, 11 kw 1cil. M60200 Bastidores: ZAPM60200 henceforth0001001-- 2007-2011
Piaggio X10 125 4V ie 15 CV, 11 kw 1cil. M76100 Bastidores: ZAPM76100 henceforth0001001-- 2012-2016
Piaggio X10 125 4V ie Executive ABS ASR 15 CV, 11 kw 1cil. M76101 Bastidores: ZAPM76101 henceforth0001001-- 2012-2016
