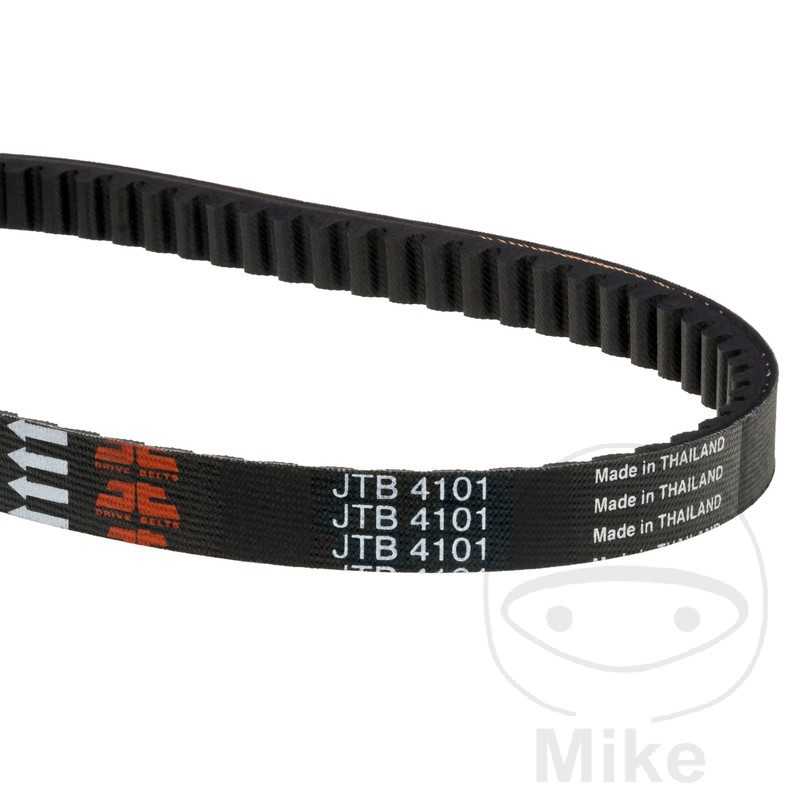

standard drive belt JTBELT 755.03.68

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Especially in the case of Piaggioscooters, special attention must be paid to the oil pump belt after the V-belt breaks.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Scarabeo 100 2T Minarelli Motor 9,5 CV, 7 kw 1cil. REA0 Bastidores: --- 2000-2001
Aprilia Scarabeo 100 2T Yamaha Motor 9,5 CV, 7 kw 1cil. RE00 Bastidores: --- 2000-2001
Benelli K2 100 1cil. M20000 Bastidores: --- 1999-2001
MBK YN 100 Ovetto 6,8 CV, 5 kw 1cil. SB042 5KK2 Bastidores: SB042000 henceforth00003-- 1999-2000
MBK YN 100 Ovetto 6,8 CV, 5 kw 1cil. SB042 5KKG Bastidores: --- 2001
MBK YN 100 Ovetto 6,8 CV, 5 kw 1cil. SB042 5KKK Bastidores: SB0420000-10183-- 2002-2003
MBK YQ 100 Nitro 7,5 CV, 5,5 kw 1cil. SB052 5ME2 Bastidores: SB052001 henceforth00301-- 2000
MBK YQ 100 Nitro 7,5 CV, 5,5 kw 1cil. SB052 5ME5 Bastidores: SB052001 henceforth00101-- 2001
MBK YQ 100 Nitro 7,5 CV, 5,5 kw 1cil. SB052 5ME7 Bastidores: --- 2002-2003
MBK YW 100 Booster 8 CV, 5,8 kw 1cil. SB022 4VPF Bastidores: SB022000-100105-- 2001-2002
MBK YW 100 Booster 8 CV, 5,8 kw 1cil. SB022 4VPH Bastidores: SB022000-400101-- 1999-2000
Yamaha YN 100 Neos 6,8 CV, 5 kw 1cil. SB041 5KK1 Bastidores: SB041 henceforth00006-SB04 henceforth05997 1999-2000
Yamaha YN 100 Neos 6,8 CV, 5 kw 1cil. SB041 5KKE Bastidores: SB041 henceforth10995-SB041 henceforth11684 2001
Yamaha YN 100 Neos 6,8 CV, 5 kw 1cil. SB041 5KKJ Bastidores: SB041 henceforth12441-- 2002-2003
Yamaha YQ 100 Aerox 7,5 CV, 5,5 kw 1cil. SB05 5ME1 Bastidores: SB05 henceforth00701-SB05 henceforth04050 2000
Yamaha YQ 100 Aerox 7,5 CV, 5,5 kw 1cil. SB051 5ME4 Bastidores: SB051 henceforth07199-SB051 henceforth10198 2001
Yamaha YQ 100 Aerox 7,5 CV, 5,5 kw 1cil. SB051 5ME6 Bastidores: SB051 henceforth10351-- 2002-2003
Yamaha YW 100 BWS 8 CV, 5,9 kw 1cil. SB021 4VPG Bastidores: SB021 henceforth00101-- 1999-2001
