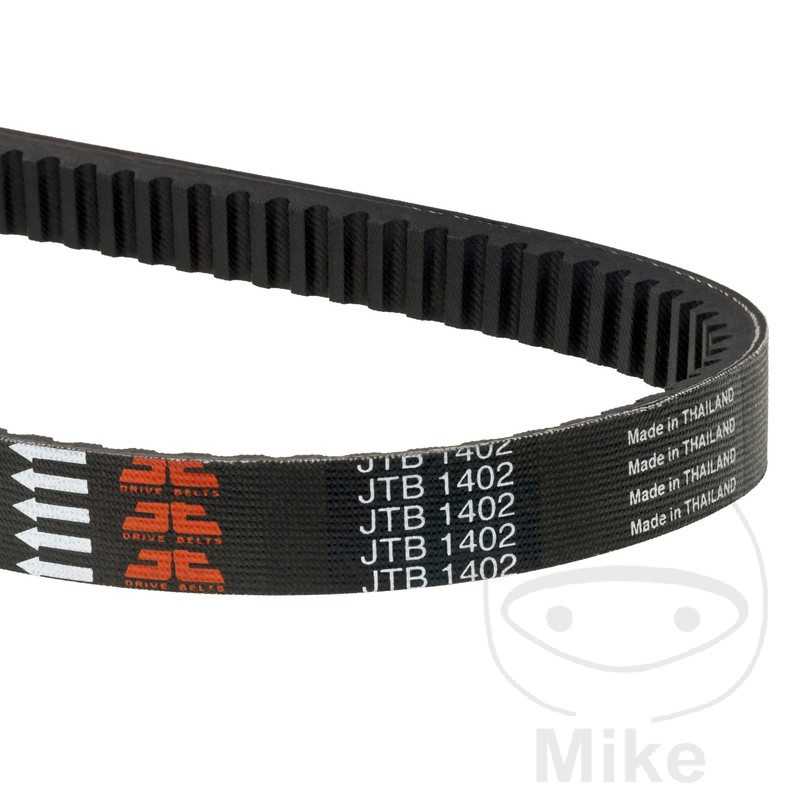

standard drive belt JTBELT 755.03.54

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Especially in the case of Piaggioscooters, special attention must be paid to the oil pump belt after the V-belt breaks.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF04A W BASTIDORES: JH2 MF04A-WK000001-- 1998
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF04A X BASTIDORES: JH2 MF04A-XK020001-- 1999
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF05A 1 BASTIDORES: ZDC MF05A henceforth1F030001-ZDC MF05A henceforth1F099999 2001
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF05A 2 BASTIDORES: ZDC MF05A henceforth2F040001-ZDC MF05A henceforth2F044999 2002-2004
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF05A 5 BASTIDORES: ZDC MF05A henceforth5F050001-- 2005
HONDA FES 250 FORESIGHT 19 CV, 14,1 KW 1CIL. MF05A Y BASTIDORES: ZDC MF05A henceforthYF000001-ZDC MF05A henceforthYF099999 2000
HONDA NSS 250 A JAZZ ABS 19 CV, 14,2 KW 1CIL. MF06B 1 BASTIDORES: JH2 MF06B-1K000001-JH2 MF06B-1K099999 2001-2002
HONDA NSS 250 A JAZZ ABS 19 CV, 14,2 KW 1CIL. MF06B 3 BASTIDORES: JH2 MF06B-3K010001-JH2 MF06B-3K019999 2003
HONDA NSS 250 A JAZZ ABS 19 CV, 14,2 KW 1CIL. MF06B 4 BASTIDORES: JH2 MF06B-4K020001-- 2004
HONDA NSS 250 JAZZ 19 CV, 14,2 KW 1CIL. MF06A 1 BASTIDORES: JH2 MF06A-1K000001-JH2 MF06A-1K099999 2001
HONDA NSS 250 JAZZ 19 CV, 14,2 KW 1CIL. MF07A 3 BASTIDORES: ZDC MF07A henceforth3F050001-- 2003
HONDA NSS 250 JAZZ 19 CV, 14,2 KW 1CIL. MF07A 4 BASTIDORES: ZDC MF07A henceforth4F060001-- 2004
HONDA NSS 250 JAZZ ES 19 CV, 14,2 KW 1CIL. MF07A 1 BASTIDORES: ZDC MF07A henceforth1F000001-ZDC MF07A henceforth1F099999 2001-2002
HONDA NSS 250 JAZZ ES 19 CV, 14,2 KW 1CIL. MF07A 3 BASTIDORES: ZDC MF07A henceforth3F050001-ZDC MF07A henceforth3F099999 2003
HONDA NSS 250 JAZZ ES 19 CV, 14,2 KW 1CIL. MF07A 4 BASTIDORES: ZDC MF07A henceforth4F060001-- 2004
PIAGGIO X9 250 18,4 CV, 13,5 KW 1CIL. M23000 BASTIDORES: ZAPM23000 henceforth0001001-ZAPM23000 henceforth0999999 2000-2002
