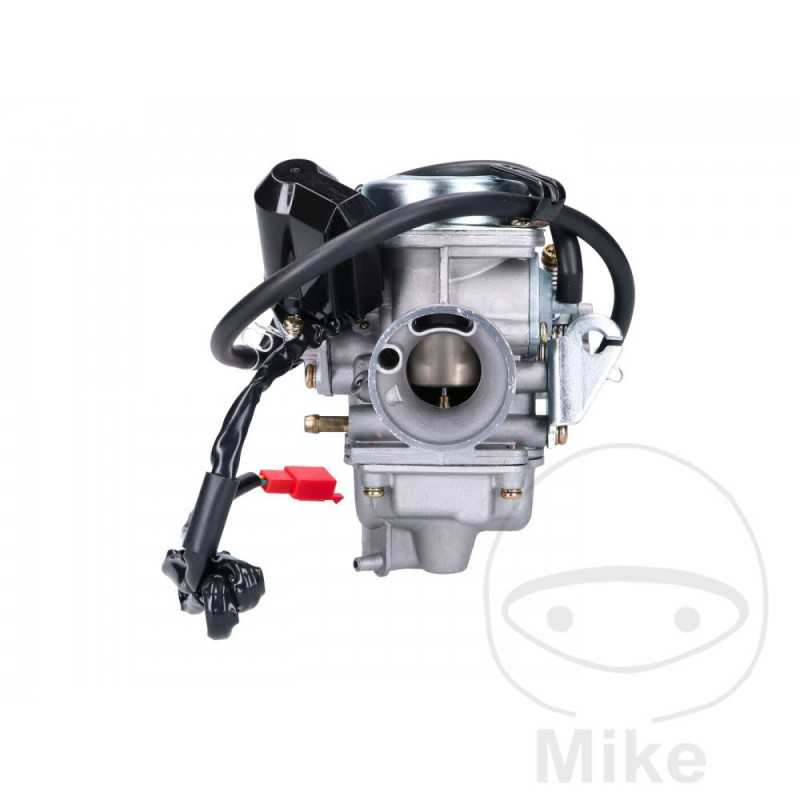

Standard carburetor 26 MM 125/150 CC 721.03.03

Complete carburettor PD26JC 26mm - controlled diaphragm - with e-choke and jetting. On this model, the carburettor cable is guided from above.

Ready to install, suitable for Chinese produced 125cc and 150cc 4-stroke engines and air-cooled Kymco 125cc models, as well as various manual mopeds or mopeds such as Suzuki GN125, GN125E, GS125, EN125.

Intake manifold connection width: 32mm

Air filter connection width: 43mm

Main dispenser: #105 M6

Secondary dispenser: #37.5



Important note: Please check whether the carburettor offered here is identical in construction to the carburettor installed on the vehicle. A complete assignment of the vehicle models is not possible here. Deviations are possible for certain vehicles.
OPENING: 43MM
INTAKE CONNECTION: 32 MM
MAIN JET: 105
SECONDARY GUN: 37.5


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Adly/Herchee Cat 125 9,5/8,8 CV, 7/6,5 kw 1cil. - Bastidores: --- 1998-2002
Adly/Herchee Noble 125 7,2 CV, 5,3 kw 1cil. - Bastidores: --- 2006-2010
Baotian BT125T-2A 125 Smart Rider 6,4/7,5 CV, 4,7/5,5 kw 1cil. - Bastidores: --- 2005-2016
Baotian BT125T-2B2 125 6,4/7,5 CV, 4,7/5,5 kw 1cil. - Bastidores: --- 2009-2015
Baotian BT125T-3A2 125 Italo 7,5 CV, 5,5 kw 1cil. - Bastidores: --- 2008-2012
Baotian BT125T-3A4 125 Italo 1cil. - Bastidores: --- 2011-2012
Baotian BT125T-3B6 125 1cil. - Bastidores: --- 2015
Baotian BT125T-8A 125 6,4/7,5 CV, 4,7/5,5 kw 1cil. - Bastidores: --- 2007-2016
Baotian BT125T-8B 125 6,4/7,5 CV, 4,7/5,5 kw 1cil. - Bastidores: --- 2009-2015
Beeline Memory 125 9,2 CV, 6,8 kw 1cil. - Bastidores: --- 2013-2015
Buffalo/Quelle Icon 125 7,3 CV, 5,4 kw 1cil. - Bastidores: --- 2005-2006
Buffalo/Quelle Italo 125 7,4 CV, 5,5 kw 1cil. BT125-3A Bastidores: --- 2008-2009
Buffalo/Quelle RS 1000 125 8,4 CV, 6,2 kw 1cil. - Bastidores: --- 2009
Buffalo/Quelle RS 1100 125 8,1 CV, 6 kw 1cil. - Bastidores: --- 2009
CCF Cat 125 9,5/8,8 CV, 7/6,5 kw 1cil. - Bastidores: --- 1998-2002
China Motor 152QMI GY6 125 4T 1cil. - Bastidores: ---
China Motor 157QMI GY6 150 4T 1cil. - Bastidores: ---
China Motor QMB139 GY6 50 4T 10 Zoll 1cil. - Bastidores: ---
China Motor QMB139 GY6 50 4T 10 Zoll mit SLS 1cil. - Bastidores: ---
China Motor QMB139 GY6 50 4T 12 Zoll 1cil. - Bastidores: ---
China Motor QMB139 GY6 50 4T 12 Zoll mit SLS 1cil. - Bastidores: ---
China Motor QMB139 GY6 50 4T 12 Zoll mit SLS Scheibenbremsen hinten 1cil. - Bastidores: ---
Ering Cat 125 9,5/8,8 CV, 7/6,5 kw 1cil. - Bastidores: --- 1998-2002
Ering Italo 125 7,5 CV, 5,5 kw 1cil. BT125T-3A Bastidores: --- 2008
Ering Smart Rider 125 6,3 CV, 4,7 kw 1cil. BT125T-2 Bastidores: --- 2005-2008
Flex Tech Athena I 125 7,1 CV, 5,2 kw 1cil. JJ125T-3 Bastidores: --- 2009-2016
Flex Tech Cavallino 125 7,2 CV, 5,3 kw 1cil. - Bastidores: --- 2013-2018
Flex Tech Cruiser 125 6,9 CV, 5,1 kw 1cil. - Bastidores: --- 2011-2016
Flex Tech Dolphin 125 1cil. HY125-3 Bastidores: --- 2009-2016
Flex Tech Farosa 125 8,5 CV, 6,3 kw 1cil. - Bastidores: --- 2013
Flex Tech Firenze 125 8,5 CV, 6,3 kw 1cil. - Bastidores: --- 2010-2016
Flex Tech Firenze 125 ie 8,5 CV, 6,3 kw 1cil. - Bastidores: --- 2017-2018
Flex Tech Topspeed 125 6,7 CV, 4,9 kw 1cil. - Bastidores: --- 2008-2016
Giantco Athena I 125 7,6 CV, 5,6 kw 1cil. - Bastidores: --- 2009-2012
Giantco Dolphin I 125 10 pulgadas 7,6 CV, 5,6 kw 1cil. - Bastidores: --- 2009-2015
Kreidler RMC-D 125 Florett 7,1 CV, 5,2 kw 1cil. - Bastidores: --- 2007
Kymco CK 125 12,2 CV, 9 kw 1cil. RA25EH CK125-2F Bastidores: LC2RA25EH-- 2006-2007
Kymco Heroism 125 9,7 CV, 7,1 kw 1cil. SB25AA Bastidores: RFBSB25AA-- 1995-2000
Longbo LB150T-12 150 4T Adventure 7,9 CV, 5,8 kw 1cil. - Bastidores: --- 2008-2013
Longbo LB150T-2 150 4T Voyager 7,9 CV, 5,8 kw 1cil. - Bastidores: --- 2008-2014
Qingqi QM125T-10H(D) 125 8,3 CV, 6,1 kw 1cil. QM125T-10H(D) Bastidores: --- 2008-2012
Qingqi QM125T-10H(D) 125 9,2 CV, 6,8 kw 1cil. QM125T-10H(D) Bastidores: --- 2014
Qingqi QM125T-10H(G) 125 Sum-Up 8,3 CV, 6,1 kw 1cil. QM125T-10H(G) Bastidores: --- 2007-2012
Qingqi QM125T-10H(G) 125 Sum-Up 9,2 CV, 6,8 kw 1cil. QM125T-10H(G) Bastidores: --- 2014
Rex RS 1000 125 8,4 CV, 6,2 kw 1cil. - Bastidores: --- 2009-2017
Rex RS 1100 125 8,1 CV, 6 kw 1cil. - Bastidores: --- 2009-2017
Rex RS 125 7,1 CV, 5,2 kw 1cil. LAEEK840 QM125T-10H Bastidores: --- 2007-2017
SYM Fiddle II 125 8 CV, 5,9 kw 1cil. AW12W-6 Bastidores: --- 2007-2008
SYM Fiddle II 125 8 CV, 5,9 kw 1cil. AW12W-T Bastidores: --- 2009-2014
SYM Megalo 125 euro1 9,6 CV, 7,1 kw 1cil. AK12W-6 Bastidores: --- 2002-2003
SYM Megalo 125 euro2 1cil. AK12W-1-6 Bastidores: --- 2004-2007
SYM Orbit 125 8 CV, 5,9 kw 1cil. AV12W-6 Bastidores: --- 2008-2010
SYM Orbit II 125 8 CV, 5,9 kw 1cil. AE12W1-6 Bastidores: --- 2009-2016
SYM Orbit II 125 ie CBS 10,2 CV, 7,5 kw 1cil. AE12W2-EU Bastidores: --- 2017-2019
SYM VS 125 11,1 CV, 8,2 kw 1cil. HV12WB-6 Bastidores: --- 2011-2014
SYM VS 125 11,3 CV, 8,3 kw 1cil. HA12C6-4 Bastidores: --- 2007-2008
SYM VS 125 11,3 CV, 8,3 kw 1cil. HV12WB-6 Bastidores: --- 2009-2010
SYM X-Pro 125 1cil. AE12W4-EU Bastidores: --- 2013-2016
Zongshen Cab 125 NG 8,4 CV, 6,2 kw 1cil. - Bastidores: --- 2006
Zongshen Cruiser 125 11,5 CV, 8,5 kw 1cil. - Bastidores: --- 2006-2007
Zongshen Enduro 125 8,7 CV, 6,4 kw 1cil. - Bastidores: --- 2005-2006
Zongshen Flash 125 11,5 CV, 8,5 kw 1cil. - Bastidores: --- 2005-2006
Zongshen Flash 125 12,9 CV, 9,5 kw 1cil. - Bastidores: --- 2007
Zongshen Icon 125 7,3 CV, 5,4 kw 1cil. - Bastidores: --- 2005-2006
Zongshen Terra 125 8,7 CV, 6,4 kw 1cil. - Bastidores: --- 2007
