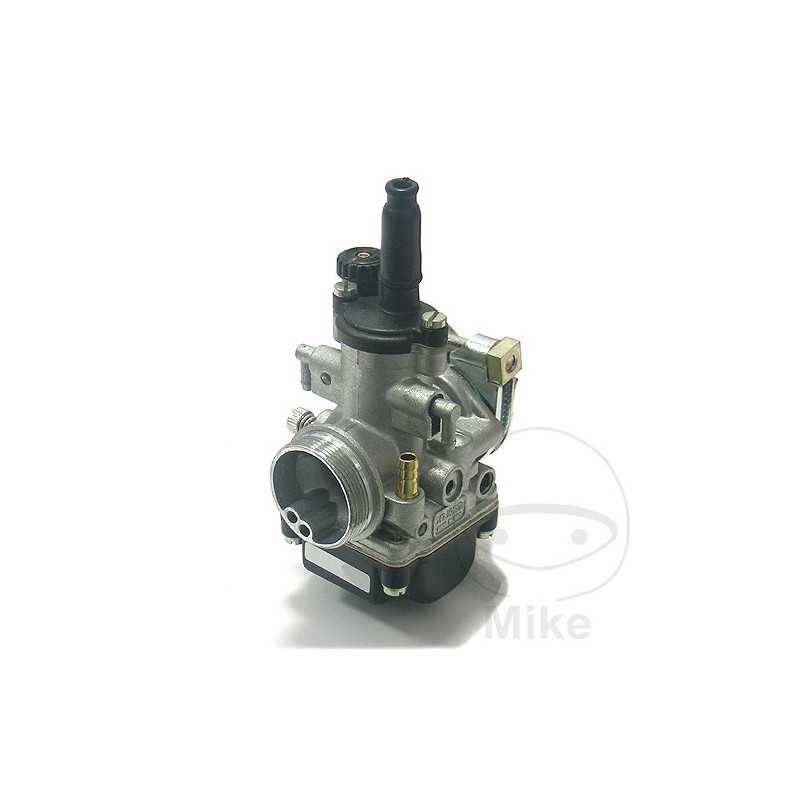

Dell Orto Type 20mm MPGF Carburetor.

carburetor assembly:

Main dispenser 90 M5 thread

idle 60

float 4GR

This carb does not contain an oil port.

Also, no vacuum connection is available.

As of work this carburetor is equipped with a manually operated Zugchoke.

To mount an air filter, a screw adapter must be used outside the thread on the carburettor is 32mm (see cover).

Ansaugstutzendurchmesser outside: 24 mm.

Note: The carburetor fits plugs only, and the throttle is pushed out (eg Minarelli AM engines).

adjustment screws are located on the left side. Keep in mind.
OPENING: 20MM
INTAKE CONNECTION: 24 MM
MAIN JET: 90
SECONDARY GUN: 60
CHOKE: MANUAL CHOKE
ELECTRIC CHOKE INCLUDED: NO


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia MX 50 2 CV, 1,5 kw 1cil. ST000/ST001/STA01 Bastidores: --- 2003
Aprilia MX 50 2 CV, 1,5 kw 1cil. STC00 Bastidores: --- 2004
Aprilia Red Rose 50 Classic 4-marchas 2,7 CV, 2 kw 1cil. GI Bastidores: --- 1992-1993
Aprilia Red Rose 50 Classic 5-marchas 2,7 CV, 2 kw 1cil. LP Bastidores: --- 1994-1996
Aprilia Red Rose 50 Classic 5-marchas 2,7 CV, 2 kw 1cil. LP010 Bastidores: --- 1997-1999
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. HP P Bastidores: --- 1993
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. LM R Bastidores: --- 1994
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM000 S Bastidores: --- 1995
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM000 T Bastidores: --- 1996
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM020 V Bastidores: --- 1997
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM020 W Bastidores: --- 1998
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 Bastidores: --- 2001
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 X Bastidores: --- 1999
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 Y Bastidores: --- 2000
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. SE000 Bastidores: --- 2002-2003
Aprilia RS 50 Replica 2 CV, 1,4 kw 1cil. SE001 Bastidores: --- 2004-2005
Aprilia RX 50 6-marchas 1cil. ST000/ST001/STA01 Bastidores: --- 2002-2003
Aprilia RX 50 6-marchas 1cil. STA00 Bastidores: --- 2003-2004
Aprilia RX 50 6-marchas 2,7 CV, 2 kw 1cil. ST000/ST001/STA01 Bastidores: --- 1995-2001
Aprilia RX 50 P 5-marchas 1cil. HB Bastidores: --- 1992-1993
Aprilia RX 50 R 5-marchas 1cil. LR Bastidores: --- 1994
Aprilia RX 50 Racing 6-marchas 1cil. STC00 Bastidores: --- 2003-2006
Beta RR 50 Enduro 1,5 CV, 1,1 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforthB0003061-ZD3BE001 henceforthB0003305 2011
Beta RR 50 Enduro 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth90002460-ZD3BE001 henceforth90002655 2009
Beta RR 50 Enduro 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforthA0002661-ZD3BE001 henceforthA0003060 2010
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. BE0000 Bastidores: --- 2003
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. BE0010 Bastidores: --- 2004
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth50000454-ZD3BE001 henceforth50001206 2005
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth60001208-ZD3BE001 henceforth60001577 2006
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth60001609-ZD3BE001 henceforth70002155 2007
Beta RR 50 Enduro 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth80002168-ZD3BE001 henceforth80002459 2008
Beta RR 50 Enduro chasis alu 1,5 CV, 1,1 kw 1cil. - Bastidores: --- 2006
Beta RR 50 Enduro chasis alu 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003-2005
Beta RR 50 Enduro Racing 1,5 CV, 1,1 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforthB0900855-ZD3BE001 henceforthB0900944 2011
Beta RR 50 Enduro Racing 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth80900308-ZD3BE001 henceforth90900704 2009
Beta RR 50 Enduro Racing 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforthA0900705-ZD3BE001 henceforthA0900854 2010
Beta RR 50 Enduro Racing 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth60900107-ZD3BE001 henceforth70900306 2007
Beta RR 50 Enduro Racing 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001 henceforth80900308-ZD3BE001 henceforth90900704 2008
Beta RR 50 Enduro Standard 1cil. ZD3BE001 Bastidores: ZD3BE001-150000392-ZD3BE001-150000891 2005
Beta RR 50 Enduro Standard 1cil. ZD3BE001 Bastidores: ZD3BE001-160000892-ZD3BE001-160001191 2006
Beta RR 50 Motard 1,5 CV, 1,1 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-3B0005111-ZD3BE001-3B0005324 2011
Beta RR 50 Motard 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-390004226-ZD3BE001-390004575 2009
Beta RR 50 Motard 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-3A0004576-ZD3BE001-3A0005040 2010
Beta RR 50 Motard 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003-2004
Beta RR 50 Motard 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-350000001-ZD3BE001-350000771 2005
Beta RR 50 Motard 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-360000772-ZD3BE001-360001576 2006
Beta RR 50 Motard 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-360001072-ZD3BE001-370003026 2007
Beta RR 50 Motard 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-370003027-ZD3BE001-380004225 2008
Beta RR 50 Motard chasis alu 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2004-2006
Beta RR 50 Motard Track 1,5 CV, 1,1 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-3B0102185-ZD3BE001-3B0102635 2011
Beta RR 50 Motard Track 1,7 CV, 1,2 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-3A0101401-ZD3BE001-3A0102184 2010
Beta RR 50 Motard Track 1,8 CV, 1,3 kw 1cil. ZD3BE001 Bastidores: ZD3BE001-380100001-ZD3BE001-390101400 2008-2009
CH Racing WSM 50 1,7 CV, 1,2 kw 1cil. - Bastidores: --- 2003-2005
CH Racing WXE 50 1,7 CV, 1,2 kw 1cil. - Bastidores: --- 2003-2005
CPI SM 50 Supermoto 3 CV, 2,2 kw 1cil. - Bastidores: --- 2007-2014
CPI SM 50 Supermoto 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006
CPI SMX 50 Supermoto 3 CV, 2,2 kw 1cil. - Bastidores: --- 2007-2010
CPI SX 50 Supercross 3 CV, 2,2 kw 1cil. - Bastidores: --- 2007-2014
CPI SX 50 Supercross 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006
Generic Trigger 50 SM 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 SM 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 SM Competition 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 SM Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 SM One 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 X 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 X 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 X Competition 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 X Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
HM-Moto CRE 50 Baja 1cil. 50RACEF Bastidores: ZEN50RACEF0020001-- 2010-2011
HM-Moto CRE 50 Baja 1cil. 50XACEF Bastidores: ZEN50XACEF7700001-ZEN50XACEF8899999 2007-2008
HM-Moto CRE 50 Baja 1cil. 50XACEF Bastidores: ZEN50XACEF8900001-- 2009
HM-Moto CRE 50 RR Baja 1cil. 50XACEA Bastidores: ZEN50XACEA7700001-ZEN50XACEA8899999 2007-2008
HM-Moto CRE 50 RR Baja 1cil. 50XACEA Bastidores: ZEN50XACEA8900001-- 2009
HM-Moto CRE 50 RR Baja 4,9/1,8 CV, 3,6/1,3 kw 1cil. 50RACEA Bastidores: ZEN50RACEA0020001-- 2010-2011
HM-Moto CRE 50 Six Competition 1cil. 50RALEA Bastidores: ZEN50RALEA0000001-- 2010-2011
HM-Moto CRE 50 Six Competition 1cil. 50XALEA Bastidores: ZEN50XALEA7700001-ZEN50XALEA8899999 2007-2008
HM-Moto CRE 50 Six Competition 1cil. 50XALEA Bastidores: ZEN50XALEA8900001-- 2009
HM-Moto Derapage 50 1cil. 50XACMF Bastidores: ZEN50XACMF7700001-ZEN50XACMF8899999 2007-2008
HM-Moto Derapage 50 1cil. 50XACMF Bastidores: ZEN50XACMF8900001-- 2009
HM-Moto Derapage 50 4,9/1,8 CV, 3,6/1,3 kw 1cil. 50RACMF Bastidores: ZEN50RACMF0020001-- 2010-2011
HM-Moto Derapage 50 Competition 1cil. 50RALMA Bastidores: ZEN50RALMA0000001-- 2010-2011
HM-Moto Derapage 50 Competition 1cil. 50XALMA Bastidores: ZEN50XALMA7700001-ZEN50XALMA8899999 2007-2008
HM-Moto Derapage 50 Competition 1cil. 50XALMA Bastidores: ZEN50XALMA8900001-- 2009
HM-Moto Derapage 50 RR 1cil. 50XACMA Bastidores: ZEN50XACMA7700001-ZEN50XACMA8899999 2007-2008
HM-Moto Derapage 50 RR 1cil. 50XACMA Bastidores: ZEN50XACMA8900001-- 2009
HM-Moto Derapage 50 RR 4,9/1,8 CV, 3,6/1,3 kw 1cil. 50RACMA Bastidores: ZEN50RACMA0000001-- 2010-2011
Malaguti XSM 50 Motard 2,2 CV, 1,6 kw 1cil. 68K1A4 Bastidores: --- 2008-2011
Malaguti XTM 50 Enduro 2,2 CV, 1,6 kw 1cil. 68K104 Bastidores: --- 2008-2011
MBK TZR 50 XPower 1cil. RA03 5WX2 Bastidores: RA032000 henceforth01920-- 2003-2004
Motorhispania Furia 50 Cross 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003-2004
Motorhispania Furia 50 Cross 2,7 CV, 2 kw 1cil. - Bastidores: --- 2000-2002
Motorhispania Furia 50 Max Enduro 1cil. - Bastidores: --- 2006-2011
Motorhispania Furia 50 Max Supermotard 1cil. - Bastidores: --- 2007-2011
Motorhispania Furia 50 SM Funbike 2,7 CV, 2 kw 1cil. - Bastidores: --- 2000-2002
Motorhispania Furia 50 SM Supermoto 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003-2004
Motorhispania RX 50 R 1cil. - Bastidores: --- 2009-2011
Motorhispania RX 50 Racing 2,7 CV, 2 kw 1cil. - Bastidores: --- 2000-2002
Motorhispania RX 50 Superracing 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003-2004
Motorhispania RX 50 Superracing 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2006-2007
Motorhispania RYZ 50 Enduro 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Pro Racing Enduro 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Pro Racing Supermotard 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Pro Racing Urban Bike 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Supermotard 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Urban Bike 1cil. - Bastidores: --- 2006-2011
Peugeot XP6 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA FU1CE2 FU1C Bastidores: --- 2008-2009
Peugeot XP6 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA FU1CP2 FU1C Bastidores: --- 2010-2011
Peugeot XP6 50 Supermoto llanta de radios 1,9 CV, 1,4 kw 1cil. VGA FU1CE2 FU1C Bastidores: --- 2008-2011
Peugeot XPS 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA DV0CE2 DV0C Bastidores: --- 2008-2009
Peugeot XPS 50 Enduro 3 CV, 2,2 kw 1cil. VGA DV1CP2 DV1C Bastidores: --- 2010-2012
Peugeot XPS 50 Street Evo3 1,9 CV, 1,4 kw 1cil. VGA DV1CE2 DV1C Bastidores: --- 2008-2009
Peugeot XPS 50 Street Evo3 3 CV, 2,2 kw 1cil. VGA DV1CE2 DV1C Bastidores: --- 2010-2011
Peugeot XPS 50 Supermoto 1,9 CV, 1,4 kw 1cil. VGA DV0CE2 DV0C Bastidores: --- 2008-2009
Peugeot XPS 50 Supermoto 3 CV, 2,2 kw 1cil. VGA DV1CP2 DV1C Bastidores: --- 2010-2012
Peugeot XR6 50 1,9 CV, 1,4 kw 1cil. VGA DR01E2 DR01 Bastidores: --- 2006-2007
Rieju MRX 50 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003
Rieju MRX 50 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju MRX 50 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2005
Rieju MRX 50 Top Edition 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju MRX 50 Top Edition 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2007
Rieju NKD 50 Naked 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003
Rieju NKD 50 Naked 4,6/8,8 CV, 3,4/6,5 kw 1cil. - Bastidores: --- 2004-2009
Rieju RR 50 6 volt 2,7/6,8 CV, 2/5 kw 1cil. - Bastidores: --- 1999-2000
Rieju RR 50 Cross 2,7 CV, 2 kw 1cil. - Bastidores: --- 1997-1998
Rieju RR 50 Cross 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002-2002
Rieju RR 50 Spike Sport 1,6 CV, 1,2 kw 1cil. - Bastidores: --- 2003-2004
Rieju RR 50 Spike Sport Edition Supermoto 4,8/8,4 CV, 3,5/6,2 kw 1cil. - Bastidores: --- 2004-2006
Rieju RR 50 Spike Super Motard 1,6 CV, 1,2 kw 1cil. - Bastidores: --- 2003-2004
Rieju RR 50 Spike Super Motard 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju RR 50 Sport 4,8/8,4 CV, 3,5/6,2 kw 1cil. - Bastidores: --- 2005-2006
Rieju RR 50 Sport Edition Enduro 4,8/8,4 CV, 3,5/6,2 kw 1cil. - Bastidores: --- 2004
Rieju RR 50 Super Motard 2,7 CV, 2 kw 1cil. - Bastidores: --- 1997-1998
Rieju RRX 50 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju RRX 50 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2006-2007
Rieju RS-1 50 Evolution 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003
Rieju RS-1 50 Evolution 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju RS-1 50 Evolution 2,7/6,8 CV, 2/5 kw 1cil. - Bastidores: --- 1999-2000
Rieju RS-1 50 Evolution 4,6/8,2 CV, 3,5/6 kw 1cil. - Bastidores: --- 2004
Rieju RS-1 50 Sport 2,7 CV, 2 kw 1cil. - Bastidores: --- 1997-1998
Rieju RS-2 50 Matrix 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2003
Rieju RS-2 50 Matrix 2,2/8,8 CV, 1,6/6,5 kw 1cil. - Bastidores: --- 2008-2010
Rieju RS-2 50 Matrix 4,6/8,8 CV, 3,4/6,5 kw 1cil. - Bastidores: --- 2004-2007
Rieju SMX 50 Super Motard 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003
Rieju SMX 50 Super Motard 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju SMX 50 Super Motard 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2005
Rieju SMX 50 Top Supermoto 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju SMX 50 Top Supermoto 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2007
Rieju Spike 50 X 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju Spike 50 X 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2006-2007
Sherco SE 50 Enduro 1cil. - Bastidores: --- 2007
Sherco SE 50 Enduro 2,6 CV, 1,9 kw 1cil. - Bastidores: --- 2008-2012
Sherco SM 50 Supermotard 1cil. - Bastidores: --- 2007
Sherco SM 50 Supermotard 2,6 CV, 1,9 kw 1cil. - Bastidores: --- 2008-2012
