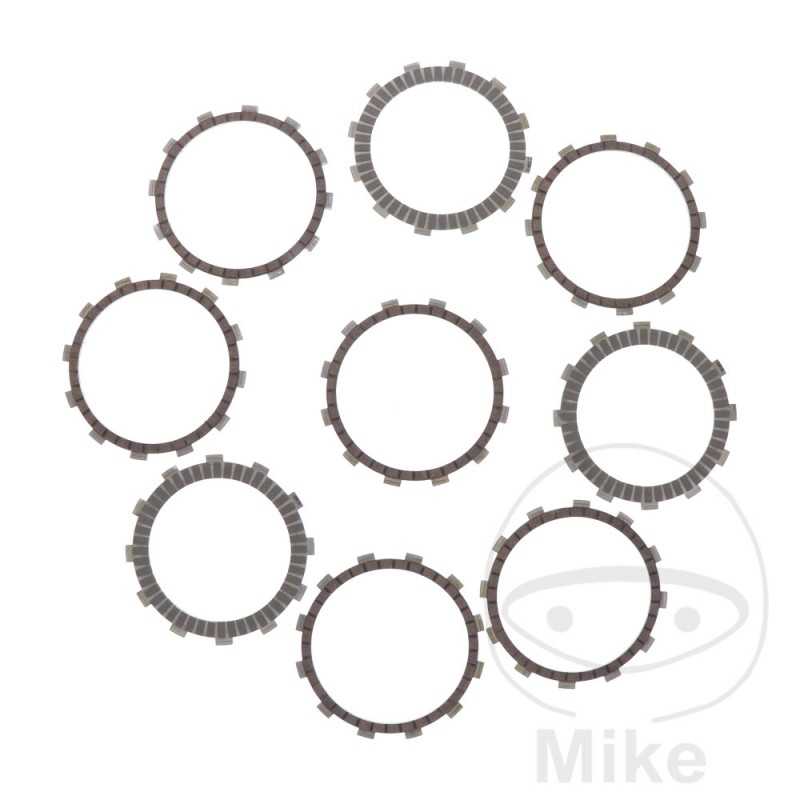

TRW Clutch plates 738.06.09

TRW-Lucas Clutch Disc Sets



- Clutch discs are supplied as sets without intermediate discs

- Depending on the original, different mixtures are used



- For storage reasons, some sets may contain more slats than are required for the respective vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 139 MM
LAMELLE 1 AUßENDURCHMESSER 2: 150 MM
LAMELLE 1 INNENDURCHMESSER: 123 MM
LAMELLE 1 SÄRKE: 3.2 MM
LAMELLE 1 ANZAHL: 6
LAMELLE 2 AUßENDURCHMESSER 1: 143 MM
LAMELLE 2 AUßENDURCHMESSER 2: 150 MM
LAMELLE 2 INNENDURCHMESSER: 113 MM
LAMELLE 2 SÄRKE: 3.3 MM
LAMELLE 2 ANZAHL: 3


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1000 A ABS 202 CV, 149 KW 4CIL. DM11AZ L7 BASTIDORES: DM11AZ-H2100001-DM11AZ-H2199999 2017
SUZUKI GSX-R 1000 A ABS 202 CV, 149 KW 4CIL. DM11AZ L8 BASTIDORES: DM11AZ-J2100001-DM11AZ-J2199999 2018
SUZUKI GSX-R 1000 A ABS 202 CV, 149 KW 4CIL. DM11AZ L9 BASTIDORES: DM11AZ-K7100001-DM11AZ-K7999999 2019
SUZUKI GSX-R 1000 A ABS 202 CV, 149 KW 4CIL. DM11AZ M0 BASTIDORES: DM11AZ-L7100001-DM11AZ-L7999999 2020
SUZUKI GSX-R 1000 RA ABS 202 CV, 149 KW 4CIL. DM11GZ L7 BASTIDORES: DM11GZ-H2100001-DM11GZ-H2199999 2017
SUZUKI GSX-R 1000 RA ABS 202 CV, 149 KW 4CIL. DM11GZ L8 BASTIDORES: DM11GZ-J2100001-DM11GZ-J2199999 2018
SUZUKI GSX-R 1000 RA ABS 202 CV, 149 KW 4CIL. DM11GZ L9 BASTIDORES: DM11GZ-K7100001-DM11GZ-K7999999 2019
SUZUKI GSX-R 1000 RA ABS 202 CV, 149 KW 4CIL. DM11GZ M0 BASTIDORES: DM11GZ-L7100001-DM11GZ-L7999999 2020
SUZUKI GSX-R 1000 RZA ABS 202 CV, 149 KW 4CIL. DM11GZ L7 BASTIDORES: DM11GZ-H2100001-DM11GZ-H2199999 2017
SUZUKI GSX-R 1000 RZA ABS 202 CV, 149 KW 4CIL. DM11GZ L8 BASTIDORES: DM11GZ-J2100001-DM11GZ-J2199999 2018
SUZUKI GSX-R 1000 RZA ABS 202 CV, 149 KW 4CIL. DM11GZ L9 BASTIDORES: DM11GZ-K7100001-DM11GZ-K7999999 2019
SUZUKI GSX-R 1000 RZA ABS 202 CV, 149 KW 4CIL. DM11GZ M0 BASTIDORES: DM11GZ-L7100001-DM11GZ-L7999999 2020
