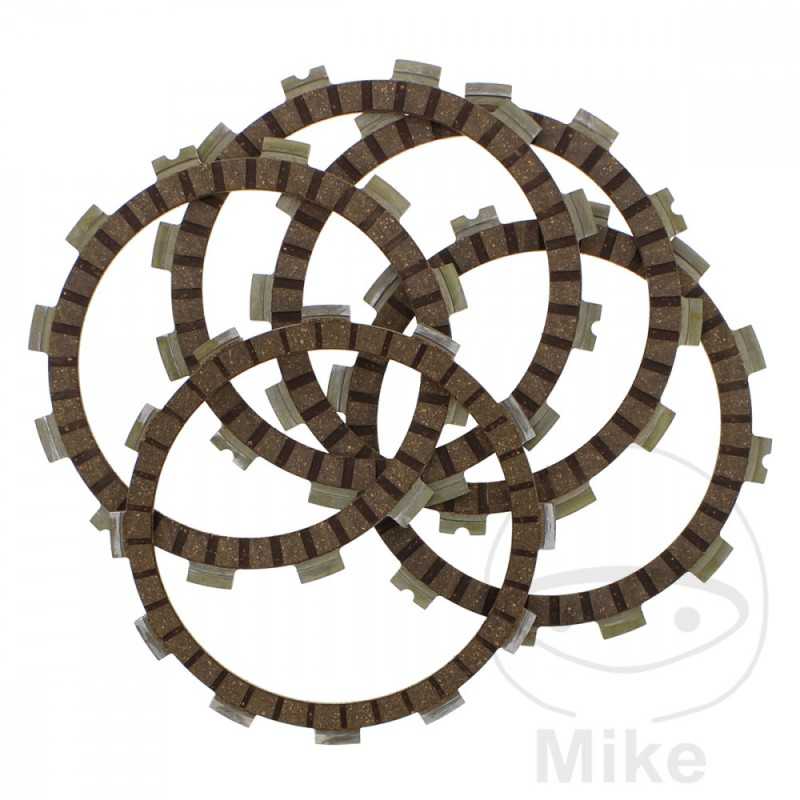

TRW Clutch plates 738.03.60

TRW-Lucas Clutch Disc Sets



- Clutch plates are supplied as sets without washers.

- Depending on the original, different mixtures are used



- For storage reasons, some kits may contain more plates than are required for the particular vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 138 MM
LAMELLE 1 AUßENDURCHMESSER 2: 152 MM
LAMELLE 1 INNENDURCHMESSER: 116 MM
LAMELLE 1 SÄRKE: 3 MM
LAMELLE 1 ANZAHL: 4
LAMELLE 2 AUßENDURCHMESSER 1: 138 MM
LAMELLE 2 AUßENDURCHMESSER 2: 152 MM
LAMELLE 2 INNENDURCHMESSER: 121 MM
LAMELLE 2 SÄRKE: 3.5 MM
LAMELLE 2 ANZAHL: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 250 S 17 CV, 13 KW 1CIL. SG42A Z BASTIDORES: SG42A-100001-- 1982-1983
SUZUKI DR 250 S 17 CV, 13 KW 1CIL. SJ42A E BASTIDORES: SJ42A-100001-SJ42A-100705 1984
SUZUKI DR 250 S 17 CV, 13 KW 1CIL. SJ42A F BASTIDORES: SJ42A-100706-SJ42A-101215 1985
SUZUKI DR 250 S 17 CV, 13 KW 1CIL. SJ42A G BASTIDORES: SJ42A-101216-SJ42A-101487 1986
SUZUKI DR 250 S 17 CV, 13 KW 1CIL. SJ42A H BASTIDORES: SJ42A-101488-- 1987
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42A M BASTIDORES: NJ42A-103100-NJ42A-107207 1991-1993
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42A R BASTIDORES: NJ42A-107208-- 1994-1995
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42A T BASTIDORES: NJ42A-109657-- 1996-1997
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42A W BASTIDORES: NJ42A-110966-NJ42A-111515 1998
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42A X BASTIDORES: NJ42A-111516-- 1999
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42AD F BASTIDORES: NJ42AD-100705-NJ42AD-101614 1985-1987
SUZUKI GN 250 17 CV, 13 KW 1CIL. NJ42AD J BASTIDORES: NJ42AD-101615-- 1988-1990
SUZUKI GW 250 F INAZUMA 24 CV, 18 KW 2CIL. DC1121 L5 BASTIDORES: --- 2015-2016
SUZUKI GW 250 F INAZUMA 24 CV, 18 KW 2CIL. DC1121 L7 BASTIDORES: DC1121 henceforth1100001-- 2017
SUZUKI GW 250 INAZUMA 24 CV, 18 KW 2CIL. DC1111 L3 BASTIDORES: DC1111 henceforth1100001-- 2013-2016
SUZUKI GW 250 INAZUMA 24 CV, 18 KW 2CIL. DC1111 L7 BASTIDORES: DC1111 henceforth1100001-- 2017
SUZUKI GW 250 Z INAZUMA 24 CV, 18 KW 2CIL. DC1111 L7 BASTIDORES: DC1111 henceforth1100001-- 2015-2017
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1211 K1 BASTIDORES: AR1211 henceforth0101241-- 2001
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1211 K2 BASTIDORES: AR1211 henceforth0100001-- 2002
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1211 X BASTIDORES: AR1211 henceforth0100001-AR1211 henceforth0100858 1999
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1211 Y BASTIDORES: AR1211 henceforth0100859-AR1211 henceforth0101240 2000
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1511 K3 BASTIDORES: AR1511 henceforth0100001-AR1511 henceforth0101461 2003
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1511 K4 BASTIDORES: AR1511 henceforth0101462-AR1511 henceforth0103152 2004
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1511 K5 BASTIDORES: AR1511 henceforth0103153-AR1511 henceforth0105674 2005
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1511 K6 BASTIDORES: AR1511 henceforth0105675-AR1511 henceforth0107415 2006
SUZUKI GZ 250 MARAUDER 20,4 CV, 15 KW 1CIL. AR1511 K7 BASTIDORES: AR1511 henceforth0107416-- 2007-2008
SUZUKI TU 250 X VOLTY 20 CV, 14,7 KW 1CIL. AB1111 K1 BASTIDORES: AB1111 henceforth0109568-- 2001
SUZUKI TU 250 X VOLTY 20 CV, 14,7 KW 1CIL. AB1111 V BASTIDORES: AB1111 henceforth0100001-AB1111 henceforth0102385 1997
SUZUKI TU 250 X VOLTY 20 CV, 14,7 KW 1CIL. AB1111 W BASTIDORES: AB1111 henceforth0102386-AB1111 henceforth0105538 1998
SUZUKI TU 250 X VOLTY 20 CV, 14,7 KW 1CIL. AB1111 X BASTIDORES: AB1111 henceforth0105539-AB1111 henceforth0107830 1999
SUZUKI TU 250 X VOLTY 20 CV, 14,7 KW 1CIL. AB1111 Y BASTIDORES: AB1111 henceforth0107831-AB1111 henceforth0109567 2000
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K5 BASTIDORES: A51112 henceforth0100692-A51112 henceforth0101354 2005
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K6 BASTIDORES: A51112 henceforth0101355-A51112 henceforth0102598 2006
SUZUKI VL 250 LC INTRUDER 21 CV, 15,5 KW 2CIL. WVA51112 K7 BASTIDORES: A51112 henceforth0102599-- 2007
SUZUKI VL 250 LC INTRUDER 24 CV, 18 KW 2CIL. A51212 Y BASTIDORES: A51212 henceforth0100001-A51212 henceforth0101563 2000
SUZUKI VL 250 LC INTRUDER 24 CV, 18 KW 2CIL. WVA51212 K1 BASTIDORES: A51212 henceforth0101564-- 2001
