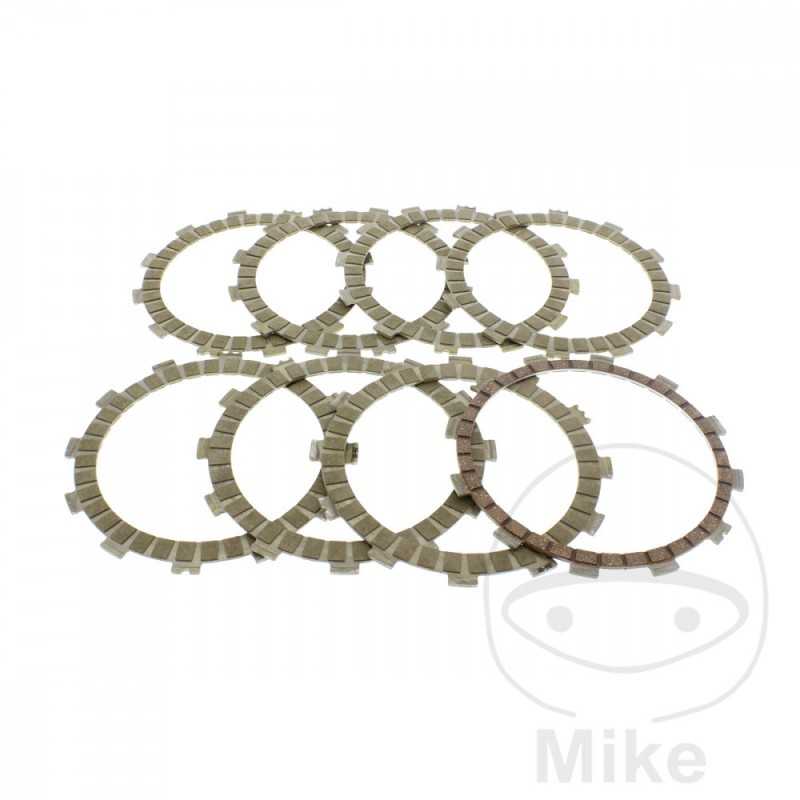

TRW Clutch plates 738.03.34

TRW-Lucas Clutch Disc Sets



- Clutch plates are supplied as sets without washers.

- Depending on the original, different mixtures are used



- For storage reasons, some kits may contain more plates than are required for the particular vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 143 MM
LAMELLE 1 AUßENDURCHMESSER 2: 155 MM
LAMELLE 1 INNENDURCHMESSER: 120 MM
LAMELLE 1 SÄRKE: 3 MM
LAMELLE 1 ANZAHL: 7
LAMELLE 2 AUßENDURCHMESSER 1: 143 MM
LAMELLE 2 AUßENDURCHMESSER 2: 155 MM
LAMELLE 2 INNENDURCHMESSER: 120 MM
LAMELLE 2 SÄRKE: 3 MM
LAMELLE 2 ANZAHL: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN255 39P1 Bastidores: RN255 henceforth00461-- 2011
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN255 39P6 Bastidores: RN255 henceforth10709-- 2012
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 2SH4 Bastidores: RN258 henceforth02078-- 2014
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 2SH7 Bastidores: RN258 henceforth02277-- 2015
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 39PL Bastidores: RN258 henceforth00301-- 2013
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 39PT Bastidores: RN258 henceforth00379-- 2013
Yamaha FZ8 800 N Anniversary 106 CV, 78 kw 4cil. RN255 39PB Bastidores: RN255 henceforth12002-- 2012
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN256 59P1 Bastidores: RN256 henceforth00301-- 2011
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN256 59P2 Bastidores: RN256 henceforth04091-- 2012
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P5 Bastidores: RN259 henceforth00320-- 2013
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P6 Bastidores: RN259 henceforth00301-- 2013
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P8 Bastidores: RN259 henceforth01582-- 2014
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P9 Bastidores: RN259 henceforth02142-- 2015-2016
Yamaha FZ8 800 NA Anniversary ABS 106 CV, 78 kw 4cil. RN256 59P3 Bastidores: RN256 henceforth04541-- 2012
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN251 42P1 Bastidores: RN251 henceforth00301-- 2010-2011
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN251 42P4 Bastidores: RN251 henceforth04361-- 2012
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PA Bastidores: RN25F henceforth00301-- 2013
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PE Bastidores: RN25F henceforth00312-- 2013
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PG Bastidores: RN25F henceforth00559-- 2014
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PN Bastidores: RN25F henceforth00787-- 2015
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN252 1BD1 Bastidores: RN252 henceforth00301-- 2011
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN252 1BD2 Bastidores: RN252 henceforth04717-- 2012
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD4 Bastidores: RN25G henceforth00301-- 2013
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD6 Bastidores: RN25G henceforth00312-- 2013
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD8 Bastidores: RN25G henceforth01233-- 2014
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BDA Bastidores: RN25G henceforth02045-- 2015-2016
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS3 Bastidores: AM07W henceforth23989-- 2010
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS9 Bastidores: AM07W henceforth25726-- 2011
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1ASF Bastidores: AM07W henceforth27285-- 2012
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S33 Bastidores: AM07W henceforth00101-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S36 Bastidores: AM07W henceforth03960-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S39 Bastidores: AM07W henceforth08732-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3G Bastidores: AM07W henceforth13764-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3K Bastidores: AM07W henceforth16114-- 2008
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3V Bastidores: AM07W henceforth20880-- 2009
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE3 Bastidores: AM46W-500101-- 2013
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE7 Bastidores: AM46W-500841-- 2014
Yamaha YFM 700 R 52 CV, 38 kw 1cil. AM77W 2LS3 Bastidores: AM77W-500101-- 2015
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3U Bastidores: AM07W henceforth19146-- 2008
Yamaha YFM 700 RS B 1cil. AM77W 2LSE Bastidores: AM77W-501441-- 2018
Yamaha YFM 700 RS B 52 CV, 38 kw 1cil. AM77W 2LS7 Bastidores: AM77W-500101-- 2016
Yamaha YFM 700 RS B 52 CV, 38 kw 1cil. AM77W 2LSB Bastidores: AM77W-501021-- 2017
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG3 Bastidores: AJ11W henceforth00878-- 2004
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG9 Bastidores: AJ11W henceforth06754-- 2005
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D33 Bastidores: AJ20W henceforth03771-- 2007
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3D Bastidores: AJ20W henceforth06986-- 2008
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3P Bastidores: AJ20W henceforth08669-- 2009-2011
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3R Bastidores: AJ20W henceforth08839-- 2009-2011
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGF Bastidores: AJ20W henceforth00101-- 2006
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGJ Bastidores: AJ20W henceforth02337-- 2006
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P3 Bastidores: AJ42W henceforth00031-- 2009
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P9 Bastidores: AJ42W henceforth01347-- 2010
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PF Bastidores: AJ42W henceforth02131-- 2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18P6 Bastidores: AJ42W henceforth00870-- 2009
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PC Bastidores: AJ42W henceforth01799-- 2010-2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PH Bastidores: AJ42W henceforth02357-- 2011
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D36 Bastidores: AJ20W henceforth04316-- 2007
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3A Bastidores: AJ20W henceforth06178-- 2007
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3G Bastidores: AJ20W henceforth07248-- 2008
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3L Bastidores: AJ20W henceforth08146-- 2008
