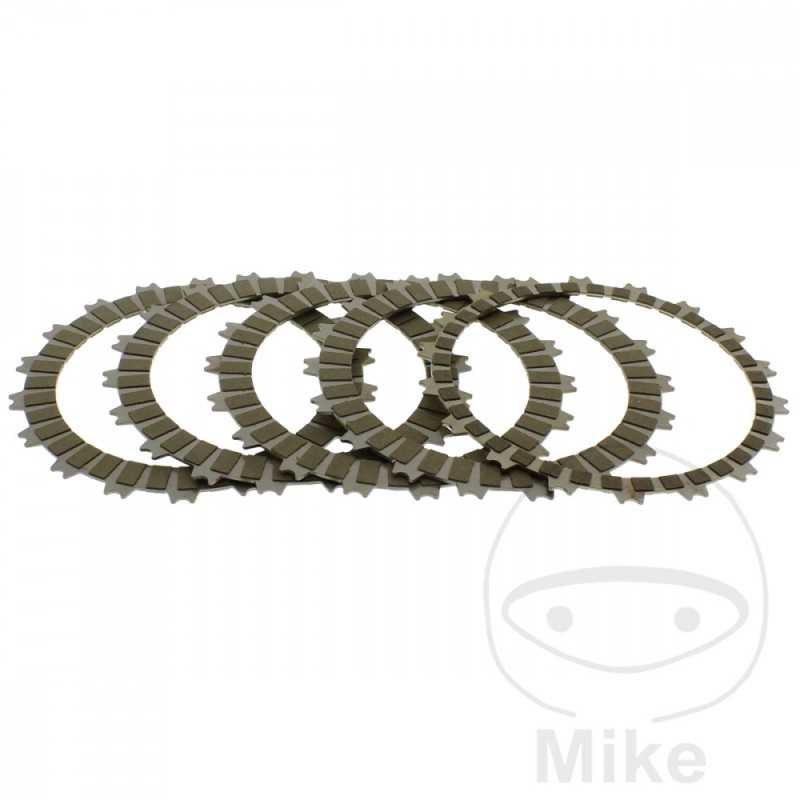

TRW Clutch plates 738.01.08

TRW-Lucas Clutch Disc Sets



- Clutch discs are supplied as sets without intermediate discs

- Depending on the original, different mixtures are used



- For storage reasons, some sets may contain more slats than are required for the respective vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 125.4 MM
LAMELLE 1 AUßENDURCHMESSER 2: 136 MM
LAMELLE 1 INNENDURCHMESSER: 101 MM
LAMELLE 1 SÄRKE: 2.5 MM
LAMELLE 1 ANZAHL: 4
LAMELLE 2 AUßENDURCHMESSER 1: 125.4 MM
LAMELLE 2 AUßENDURCHMESSER 2: 136 MM
LAMELLE 2 INNENDURCHMESSER: 111 MM
LAMELLE 2 SÄRKE: 2.5 MM
LAMELLE 2 ANZAHL: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 300 RA ABS 31 CV, 22,7 KW 1CIL. NC51B F BASTIDORES: MLH NC51B-F5100001-MLH NC51B-F5199999 2014-2015
HONDA CBR 300 RA ABS 31 CV, 22,7 KW 1CIL. NC51B G BASTIDORES: MLH NC51B-G5200001-- 2016-2017
HONDA CRF 250 L 23 CV, 17 KW 1CIL. MD38A D BASTIDORES: MLH MD38A-D5000001-MLH MD38A-D5099999 2013-2014
HONDA CRF 250 L 23 CV, 17 KW 1CIL. MD38A F BASTIDORES: MLH MD38A-F5100001-MLH MD38A F5199999 2015-2016
HONDA CRF 250 LA ABS 25 CV, 18 KW 1CIL. MD44A H BASTIDORES: MLH MD44A-H5000001-- 2017-2018
HONDA CRF 250 LA ABS 25 CV, 18 KW 1CIL. MD44A K BASTIDORES: MLH MD44A-K5100001-- 2019-2020
