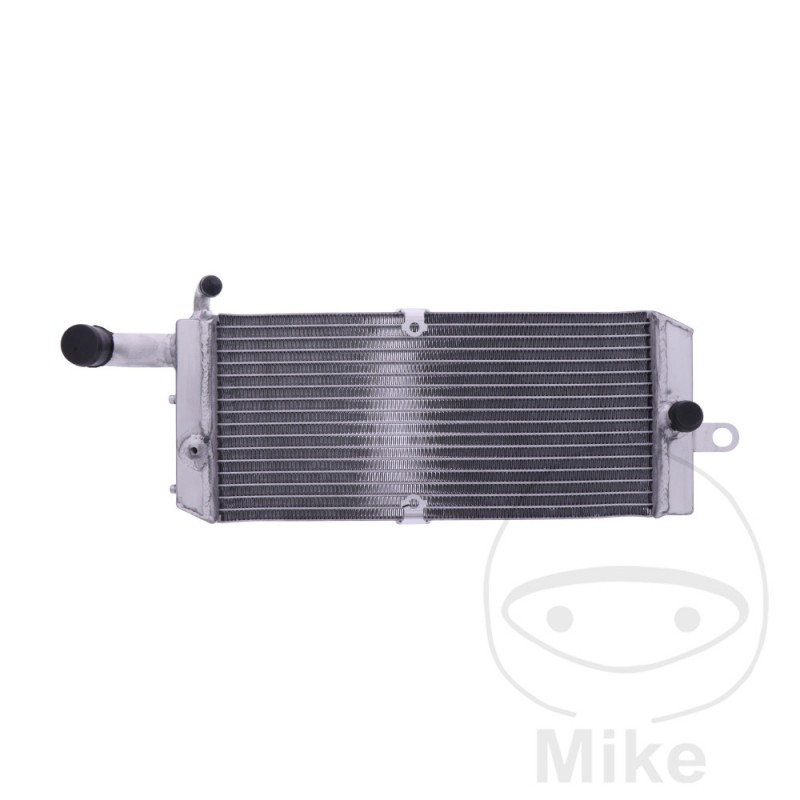

JMP Water radiator 776.03.86

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 8 Bastidores: JH2 RC50B-8M400001-JH2 RC50B-8M409999 2008
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500001-JH2 RC50B-9K500531 2009
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500532-JH2 RC50B-9K509999 2009
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 7 Bastidores: JH2 RC53A-7M000001-JH2 RC53A-7M099999 2007
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8K110001-JH2 RC53A-8K119999 2008-2009
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8K120001-JH2 RC53A-8K129999 2008-2009
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8M100001-JH2 RC53A-8M109999 2008-2009
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C A Bastidores: JH2 RC53C-AK000001-- 2010
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C B Bastidores: JH2 RC53C-BK100001-JH2 RC53C-BK199999 2011
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C C Bastidores: JH2 RC53C-CK200001-- 2012-2013
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C E Bastidores: JH2 RC53C-EK300001-- 2014-2016
Honda VT 750 C2S Shadow ABS 45 CV, 33,5 kw 2cil. RC53B A Bastidores: JH2 RC53B-AK000001-- 2010
Honda VT 750 C2S Shadow ABS 45 CV, 33,5 kw 2cil. RC53B B Bastidores: JH2 RC53B-BK100001-JH2 RC53B-BK199999 2011-2012
Honda VT 750 C2S Shadow ABS 45 CV, 33,5 kw 2cil. RC53B D Bastidores: JH2 RC53B-DK200001-- 2013
Honda VT 750 C2S Shadow ABS 45 CV, 33,5 kw 2cil. RC53B E Bastidores: JH2 RC53B-EK300001-- 2014-2015
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 8 Bastidores: JH2 RC50B-8M400001-JH2 RC50B-8M409999 2008
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500001-JH2 RC50B-9K500531 2009
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500532-JH2 RC50B-9K509999 2009
Honda VT 750 CS Shadow ABS 46 CV, 34 kw 2cil. RC50C A Bastidores: JH2 RC50C-AK000001-- 2010-2011
Honda VT 750 CS Shadow ABS 46 CV, 34 kw 2cil. RC50C C Bastidores: JH2 RC50C-CK100001-- 2012
Honda VT 750 CS Shadow ABS 46 CV, 34 kw 2cil. RC50C D Bastidores: JH2 RC50C-DK200001-- 2013
Honda VT 750 CS Shadow ABS 46 CV, 34 kw 2cil. RC50C E Bastidores: JH2 RC50C-EK300001-- 2014-2016
