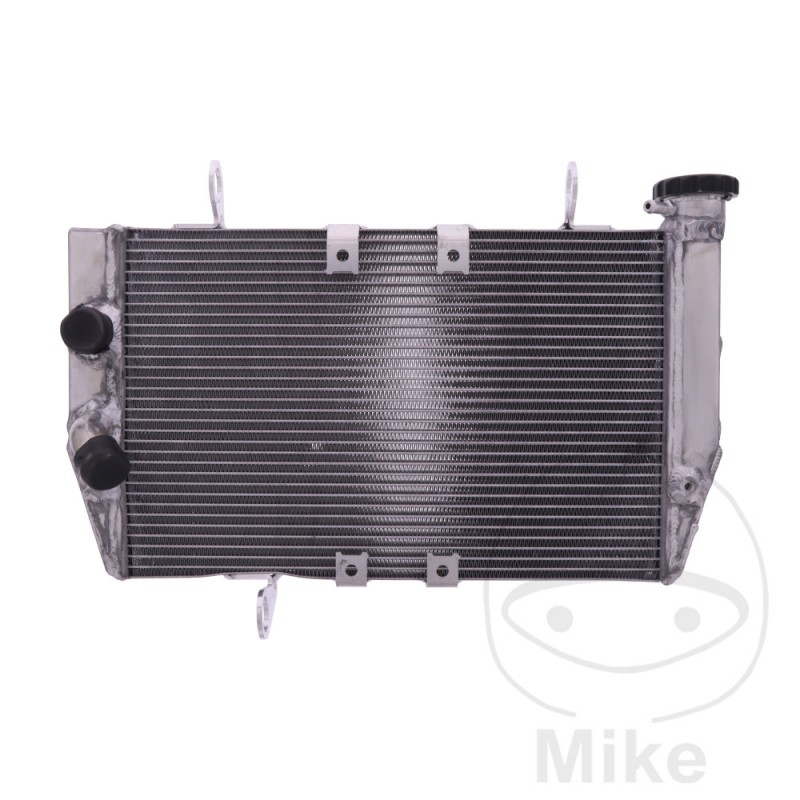

JMP Water radiator 776.03.84

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Multistrada 1200 ABS 152 CV, 112 kw 2cil. AA00AA/AA01FA Bastidores: --- 2017
Ducati Multistrada 1200 ABS 160 CV, 118 kw 2cil. AA00AA/AA01FA/AA02JA Bastidores: --- 2015-2016
Ducati Multistrada 1200 Enduro ABS 152 CV, 112 kw 2cil. AA03AA Bastidores: --- 2018
Ducati Multistrada 1200 Enduro ABS 152 CV, 112 kw 2cil. AA03AA/AA04JA/AB00FA Bastidores: --- 2017
Ducati Multistrada 1200 Enduro ABS 160 CV, 118 kw 2cil. AA03AA/AA04JA/AB00FA Bastidores: --- 2016
Ducati Multistrada 1200 Enduro Pro ABS 152 CV, 112 kw 2cil. AA03AA/AB00FA Bastidores: --- 2018
Ducati Multistrada 1200 S D-AIR ABS 152 CV, 112 kw 2cil. AA00AA/AA01FA Bastidores: --- 2017
Ducati Multistrada 1200 S D-AIR ABS 160 CV, 118 kw 2cil. AA00AA/AA01FA Bastidores: --- 2016
Ducati Multistrada 1200 S Pikes Peak ABS 152 CV, 112 kw 2cil. AA00AA/AA01FA/AA02JA Bastidores: --- 2017
Ducati Multistrada 1200 S Pikes Peak ABS 160 CV, 118 kw 2cil. AA00AA/AA01FA/AA02JA Bastidores: --- 2016
Ducati Multistrada 1200 S Sport ABS 152 CV, 112 kw 2cil. AA00AA/AA01FA/AA02JA Bastidores: --- 2017
Ducati Multistrada 1200 S Sport ABS 160 CV, 118 kw 2cil. AA00AA/AA01FA/AA02JA Bastidores: --- 2015-2016
Ducati Multistrada 1260 ABS 158 CV, 116 kw 2cil. AA07AA/AC00AA/W4/W6/AC02FA Bastidores: --- 2018
Ducati Multistrada 1260 ABS 158 CV, 116 kw 2cil. AC00AA/W3 Bastidores: --- 2020
Ducati Multistrada 1260 ABS 158 CV, 116 kw 2cil. AC00AA/W3/W4 Bastidores: --- 2019
Ducati Multistrada 1260 Enduro ABS 158 CV, 116 kw 2cil. AC03AA/AC05FA Bastidores: --- 2020-2021
Ducati Multistrada 1260 Enduro ABS 158 CV, 116 kw 2cil. AC03AA/W6/W8/AC05FA Bastidores: --- 2019
Ducati Multistrada 1260 Enduro Touring ABS 158 CV, 116 kw 2cil. AC03AA/AC05FA Bastidores: --- 2020
Ducati Multistrada 1260 Enduro Touring ABS 158 CV, 116 kw 2cil. AC03AA/W0/AC05FA Bastidores: --- 2019
Ducati Multistrada 1260 S ABS 158 CV, 116 kw 2cil. AA07AA/AC00AA/WX/AC02FA Bastidores: --- 2018
Ducati Multistrada 1260 S ABS 158 CV, 116 kw 2cil. AC00AA/W4/W6/W8/AC02FA Bastidores: --- 2019
Ducati Multistrada 1260 S ABS 158 CV, 116 kw 2cil. AC00AA/WX/AC02FA Bastidores: --- 2020
Ducati Multistrada 1260 S D-AIR ABS 158 CV, 116 kw 2cil. AC00AA Bastidores: --- 2019-2020
Ducati Multistrada 1260 S D-AIR ABS 158 CV, 116 kw 2cil. AC00AA/AC02FA Bastidores: --- 2018
Ducati Multistrada 1260 S Grand Tour ABS 158 CV, 116 kw 2cil. AC00AA/AC02FA Bastidores: --- 2020
Ducati Multistrada 1260 S Pikes Peak ABS 158 CV, 116 kw 2cil. AC00AA/AC02FA Bastidores: --- 2018-2019
Ducati Multistrada 1260 S Pikes Peak ABS 158 CV, 116 kw 2cil. AC00AA/W4/WX/AC02FA Bastidores: --- 2020
Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA05AA/AA06JA Bastidores: --- 2017
Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA05AA/T0/T2/T4 Bastidores: --- 2018
Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019
Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020
Ducati Multistrada 950 S ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020
Ducati Multistrada 950 S ABS 113 CV, 83 kw 2cil. AD00AA/T9 Bastidores: --- 2019
Ducati Multistrada 950 S SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. 2A00AA Bastidores: --- 2021
Ducati Multistrada 950 S SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019
Ducati Multistrada 950 S SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020
Ducati Multistrada 950 S Touring ABS 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019
Ducati Multistrada 950 S Touring ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020
Ducati Multistrada 950 SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AA05AA/T0/T3/T5 Bastidores: --- 2018
Ducati Multistrada 950 Touring ABS 113 CV, 83 kw 2cil. AA05AA Bastidores: --- 2017
Ducati Multistrada 950 Touring ABS 113 CV, 83 kw 2cil. AA05AA/T8 Bastidores: --- 2018
Ducati Multistrada 950 V2 ABS 113 CV, 83 kw 2cil. 2A00AA/T3 Bastidores: --- 2021
Ducati Multistrada 950 V2 ABS 113 CV, 83 kw 2cil. 2A02AA/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 ABS 48 CV, 35 kw 2cil. 2A02AA/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 S ABS 113 CV, 83 kw 2cil. 2A00AA Bastidores: --- 2021
Ducati Multistrada 950 V2 S ABS 113 CV, 83 kw 2cil. 2A02AA/2A02T0/T7/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 S ABS 48 CV, 35 kw 2cil. 2A02AA/2A02T0/T7/M435AA Bastidores: --- 2022
