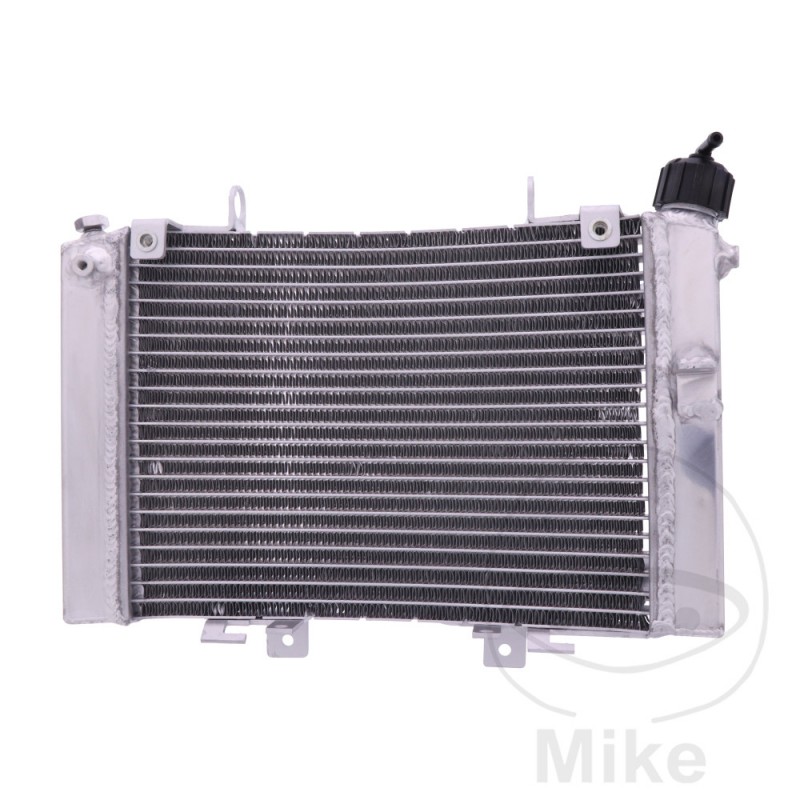

JMP Water radiator 776.03.81

JMP water cooler

>>> Optimal cooling performance and durability <<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Duke 690 III 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2011
KTM Duke 690 III 65 CV, 48 kw 1cil. - Bastidores: --- 2008-2011
KTM Supermoto 690 LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2007-2009
KTM Supermoto 690 LC4 64 CV, 47 kw 1cil. - Bastidores: --- 2007-2009
KTM Supermoto 690 LC4 Prestige 34 CV, 25 kw 1cil. - Bastidores: --- 2007
KTM Supermoto 690 LC4 Prestige 64 CV, 47 kw 1cil. - Bastidores: --- 2007
KTM Supermoto 690 R LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2010
KTM Supermoto 690 R LC4 64 CV, 47 kw 1cil. - Bastidores: --- 2008-2010
