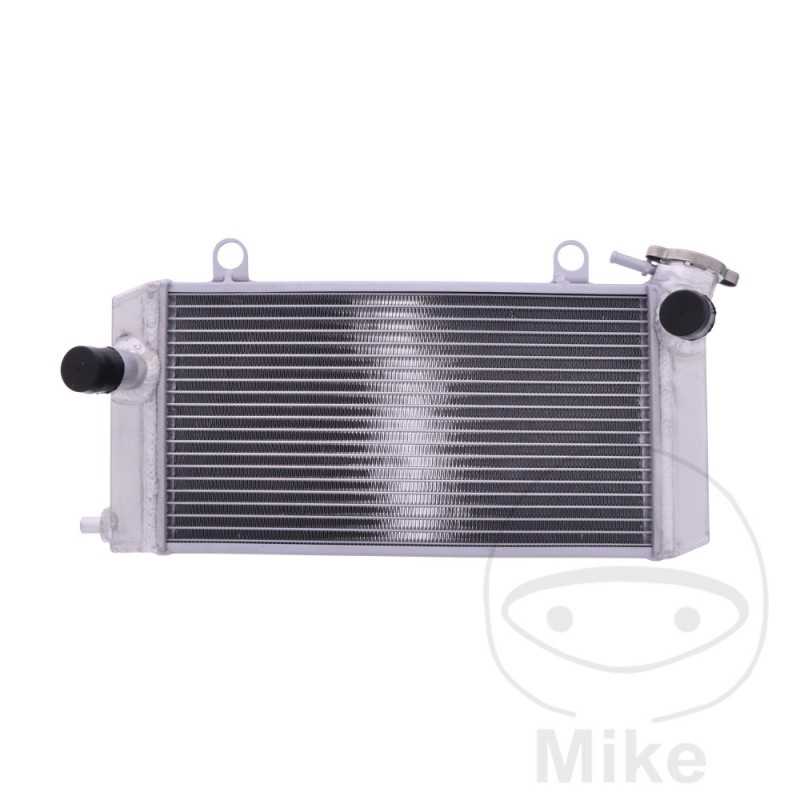

JMP Water radiator 776.03.77

JMP water cooler

>>> Optimal cooling performance and durability <<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 1200 ZA Super Tenere ABS 110 CV, 81 kw 2cil. DP011 23P1 Bastidores: DP011 henceforth00301-- 2010
Yamaha XT 1200 ZA Super Tenere ABS 110 CV, 81 kw 2cil. DP011 23P8 Bastidores: DP011 henceforth04176-- 2011
Yamaha XT 1200 ZA Super Tenere ABS 110 CV, 81 kw 2cil. DP015 23PB Bastidores: DP015 henceforth00301-- 2012
Yamaha XT 1200 ZA Super Tenere ABS 112 CV, 82 kw 2cil. DP071 BP81 Bastidores: DP071 henceforth00301-- 2017-2018
Yamaha XT 1200 ZA Super Tenere ABS 112 CV, 82 kw 2cil. DP071 BP87 Bastidores: DP071 henceforth01854-- 2019-2021
Yamaha XT 1200 ZA Super Tenere/Worldcrosser ABS 110 CV, 81 kw 2cil. DP015 23PF Bastidores: DP015 henceforth02474-- 2013
Yamaha XT 1200 ZA Super Tenere/Worldcrosser ABS 112 CV, 82 kw 2cil. DP041 2BS1 Bastidores: DP041 henceforth00301-- 2014
Yamaha XT 1200 ZA Super Tenere/Worldcrosser ABS 112 CV, 82 kw 2cil. DP041 2BS9 Bastidores: DP041 henceforth01093-- 2015-2016
Yamaha XT 1200 ZE A Super Tenere ABS 112 CV, 82 kw 2cil. DP046 2KB1 Bastidores: DP046 henceforth00301-- 2014
Yamaha XT 1200 ZE A Super Tenere/Raid Edition ABS 112 CV, 82 kw 2cil. DP075 BP91 Bastidores: DP075 henceforth00301-- 2017-2018
Yamaha XT 1200 ZE A Super Tenere/Raid Edition ABS 112 CV, 82 kw 2cil. DP075 BP97 Bastidores: DP075 henceforth02754-- 2019-2021
Yamaha XT 1200 ZE A Super Tenere/Worldcrosser ABS 112 CV, 82 kw 2cil. DP046 2KB9 Bastidores: DP046 henceforth01555-- 2015-2016
Yamaha XT 1200 ZE A Super Tenere/Worldcrosser ABS 112 CV, 82 kw 2cil. DP046 2KBD Bastidores: DP046 henceforth01583-- 2015-2016
