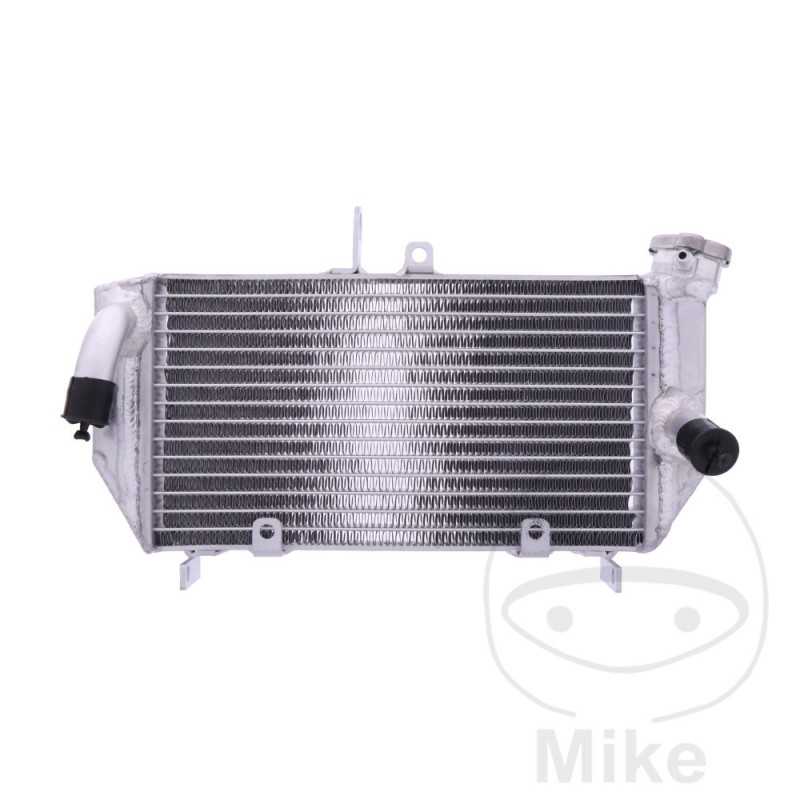

JMP Water radiator 776.03.76

JMP water cooler

>>> Optimal cooling performance and durability <<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha R3 320 A ABS 42 CV, 30,9 kw 2cil. RH211 B2X2 Bastidores: --- 2022
Yamaha R3 320 A World GP 60th Anniversary ABS 42 CV, 30,9 kw 2cil. - B2X8 Bastidores: --- 2023
Yamaha R3 320 A World GP 60th Anniversary ABS 42 CV, 30,9 kw 2cil. RH211 B2X8 Bastidores: --- 2022
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B023 Bastidores: RH071 henceforth00020-- 2015
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B024 Bastidores: RH071 henceforth01681-- 2015
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B02B Bastidores: RH071 henceforth00101-- 2016
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH071 B02C Bastidores: RH071 henceforth04241-- 2016
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR51 Bastidores: RH121 henceforth01001-- 2017
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR52 Bastidores: RH121 henceforth01081-- 2017
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR57 Bastidores: RH121 henceforth03361-- 2018
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH121 BR58 Bastidores: RH121 henceforth03401-- 2018
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7P1 Bastidores: RH12D henceforth00101-- 2019
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7P3 Bastidores: RH12D henceforth01561-- 2019
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7PD Bastidores: RH12D henceforth02881-- 2020-2021
Yamaha YZF-R3 320 A ABS 42 CV, 30,9 kw 2cil. RH12D B7PF Bastidores: RH12D henceforth03041-- 2020
