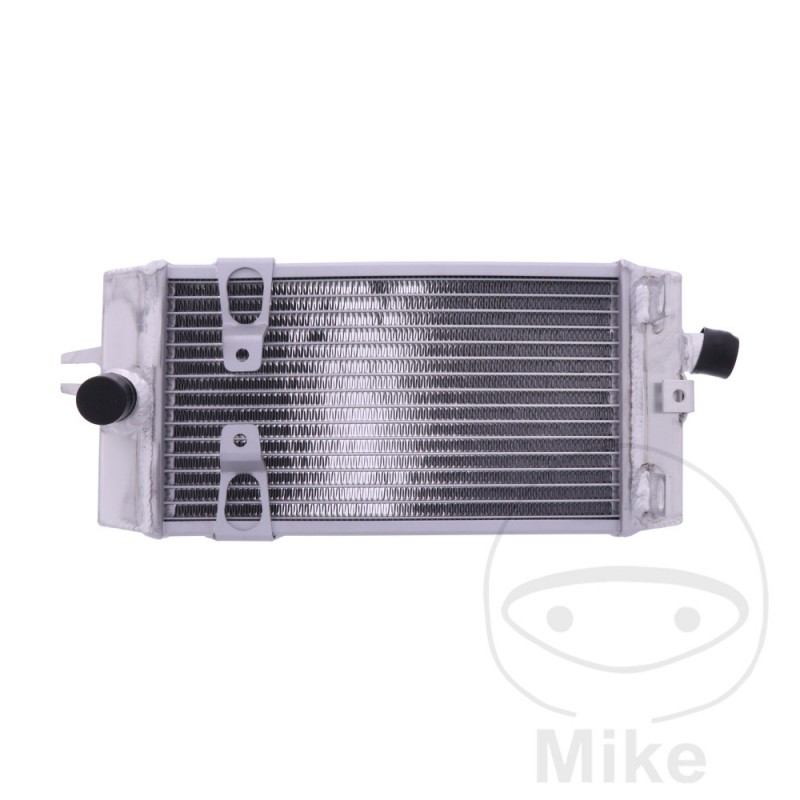

JMP Water radiator 776.03.75

JMP water cooler

>>> Optimal cooling performance and durability <<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Bonneville 1200 Bobber ABS 48 CV, 35 kw 2cil. DV01A Bastidores: --- 2021
Triumph Bonneville 1200 Bobber ABS 48 CV, 35 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Bobber ABS 77 CV, 56,6 kw 2cil. DV01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 1200 Bobber ABS 77 CV, 56,6 kw 2cil. DV01A Bastidores: 1 --1 - 2021
Triumph Bonneville 1200 Bobber ABS 77/48 CV, 56,6/35 kw 2cil. DV01A Bastidores: 1 --1 - 2018-2020
Triumph Bonneville 1200 Bobber ABS 78 CV, 58 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 T120 ABS 80 CV, 59 kw 2cil. DU01 Bastidores: 1 --1 - 2016-2018
Triumph Bonneville 1200 T120 ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 1200 T120 ABS 80/48 CV, 59/35 kw 2cil. DU04 Bastidores: 1 --1 - 2021-2022
Triumph Bonneville 1200 T120 Black ABS 80 CV, 59 kw 2cil. DU01 Bastidores: 1 --1 - 2016-2018
Triumph Bonneville 1200 T120 Black ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 1200 T120 Black ABS 80/48 CV, 59/35 kw 2cil. DU04 Bastidores: 1 --1 - 2021-2022
Triumph Bonneville 1200 T120 Black Gold Line Edition ABS 80/48 CV, 59/35 kw 2cil. DU04 Bastidores: --- 2022
Triumph Bonneville 1200 T120 Bud Ekins ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 1200 T120 Gold Line Edition ABS 80/48 CV, 59/35 kw 2cil. DU04 Bastidores: --- 2022
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02 Bastidores: --- 2018-2019
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02 Bastidores: 1 --1 - 2018
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 ABS 55 CV, 40,5 kw 2cil. DB01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 900 EFI T100 ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02 Bastidores: --- 2018-2019
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02 Bastidores: 1 --1 - 2018
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 Black ABS 55 CV, 40,5 kw 2cil. DB01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 900 EFI T100 Black ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 900 EFI T100 Bud Ekins ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 Bud Ekins ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2020-2021
Triumph Speed Twin 1200 ABS 100 CV, 74 kw 2cil. DD04 Bastidores: 1 --1 - 2021-2022
Triumph Speed Twin 1200 ABS 97 CV, 71 kw 2cil. DD01 Bastidores: 1 --1 - 2019-2021
Triumph Street Cup 900 EFI ABS 48 CV, 35 kw 2cil. DZ02 Bastidores: 1 --1 - 2018-2019
Triumph Street Cup 900 EFI ABS 55 CV, 40,5 kw 2cil. DZ01 Bastidores: 1 --1 - 2017-2019
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC02 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC03R Bastidores: 1 --1 - 2019-2020
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC04R Bastidores: 1 --1 - 2021
Triumph Street Scrambler 900 EFI ABS 55 CV, 40,5 kw 2cil. DC01 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC03 Bastidores: 1 --1 - 2019-2020
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC04 Bastidores: 1 --1 - 2021
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP02 Bastidores: 1 --1 - 2017
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP02 Bastidores: 1 --1 - AB9714 2018
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP03R Bastidores: 1 - AB9715-1 - 2019
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP03R Bastidores: 1 --1 - 2020
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP04R Bastidores: 1 --1 - 2021
Triumph Street Twin 900 EFI ABS 55 CV, 40,5 kw 2cil. DP01 Bastidores: 1 --1 - 2016-2017
Triumph Street Twin 900 EFI ABS 55 CV, 40,5 kw 2cil. DP01 Bastidores: 1 --1 - AB9714 2018
Triumph Street Twin 900 EFI ABS 65 CV, 48 kw 2cil. DP03 Bastidores: 1 - AB9715-1 - 2019
Triumph Street Twin 900 EFI ABS 65 CV, 48 kw 2cil. DP03 Bastidores: 1 --1 - 2020
Triumph Street Twin 900 EFI ABS 65 CV, 48 kw 2cil. DP04 Bastidores: 1 --1 - 2021
Triumph Thruxton 1200 ABS 97 CV, 71 kw 2cil. DE01 Bastidores: 1 --1 - 2016-2017
Triumph Thruxton 1200 ABS 97 CV, 71 kw 2cil. DE01A Bastidores: 1 --1 - 2018-2020
Triumph Thruxton 1200 R ABS 97 CV, 71 kw 2cil. DE01 Bastidores: 1 --1 - 2016-2017
Triumph Thruxton 1200 R ABS 97 CV, 71 kw 2cil. DE01A Bastidores: 1 --1 - 2018-2020
Triumph Thruxton 1200 RS ABS 105 CV, 77 kw 2cil. DF01 Bastidores: --- 2022
Triumph Thruxton 1200 RS ABS 105 CV, 77 kw 2cil. DF01 Bastidores: 1 --1 - 2020-2021
Triumph Thruxton 1200 TFC ABS 109 CV, 80 kw 2cil. DE01A Bastidores: --- 2019-2020
